LPC2148 DEVELOPMENT BOARD

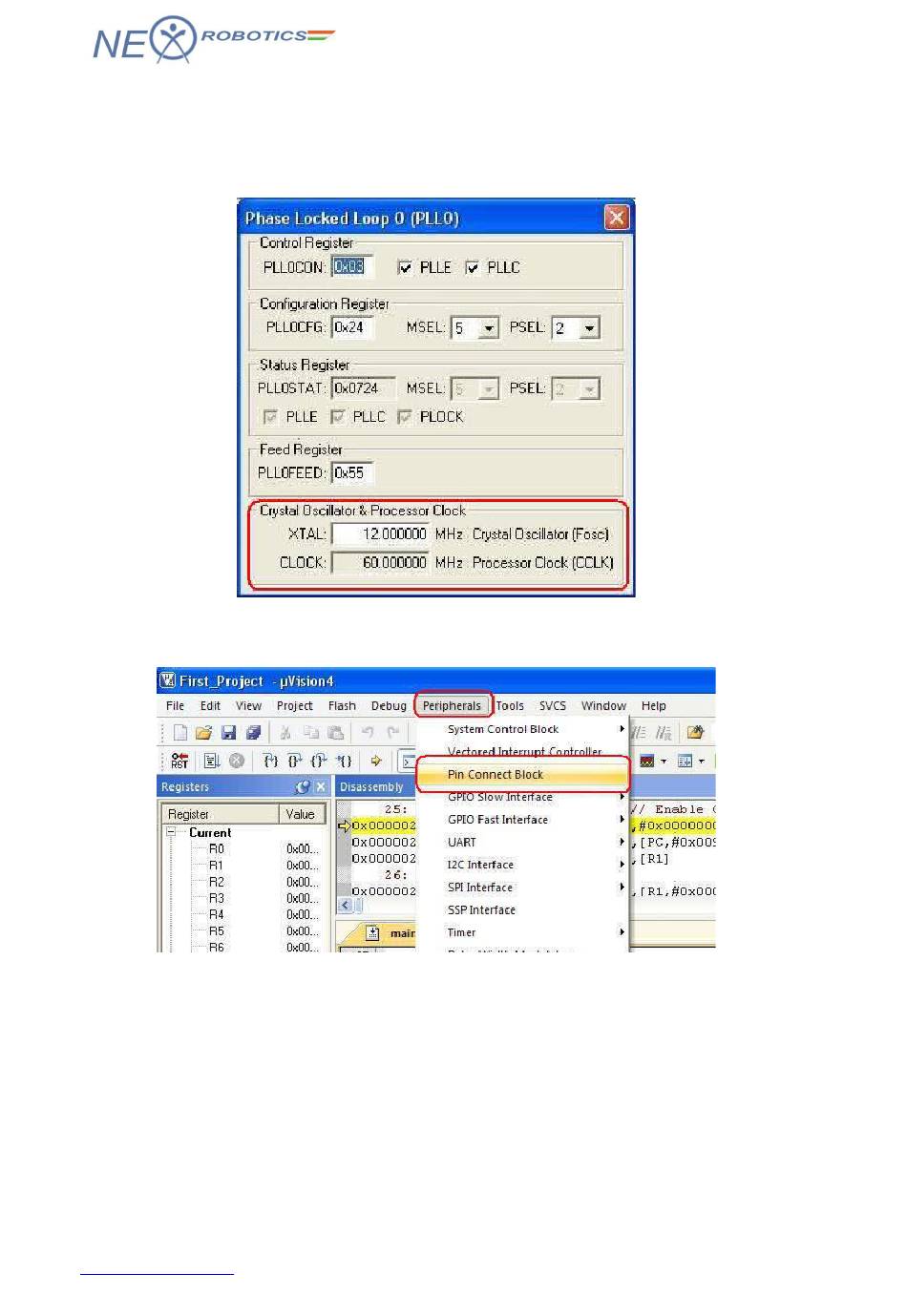

6. In the Crystal Oscillator & Processor Clock section observe that XTAL is 12MHz
and CCLK is 60MHz. This is because the debugger has already executed the start up
code when we started the debug session. It also ensures that PLL settings that we had
done in the configuration wizard of the startup code are properly working.
7. Now click Peripherals>Pin Connect Block to include pin connect block,
NEX Robotics Pvt. Ltd.
39
www.nex-robotics.com
