6. Before loading the hex file prepare LPC2148 development board by doing the following
hardware setup.
i. Connect a DB9 cable between the selected COMx port on your PC and the UART0 port on
LPC2148 development board.
ii. Plug in USB cable to the development board and slide ON/OFF switch to ON position.
iii. Enter in to boot load mode by keeping the BOOT switch pressed and then press RESET
switch, release RESET switch and then release BOOT switch.

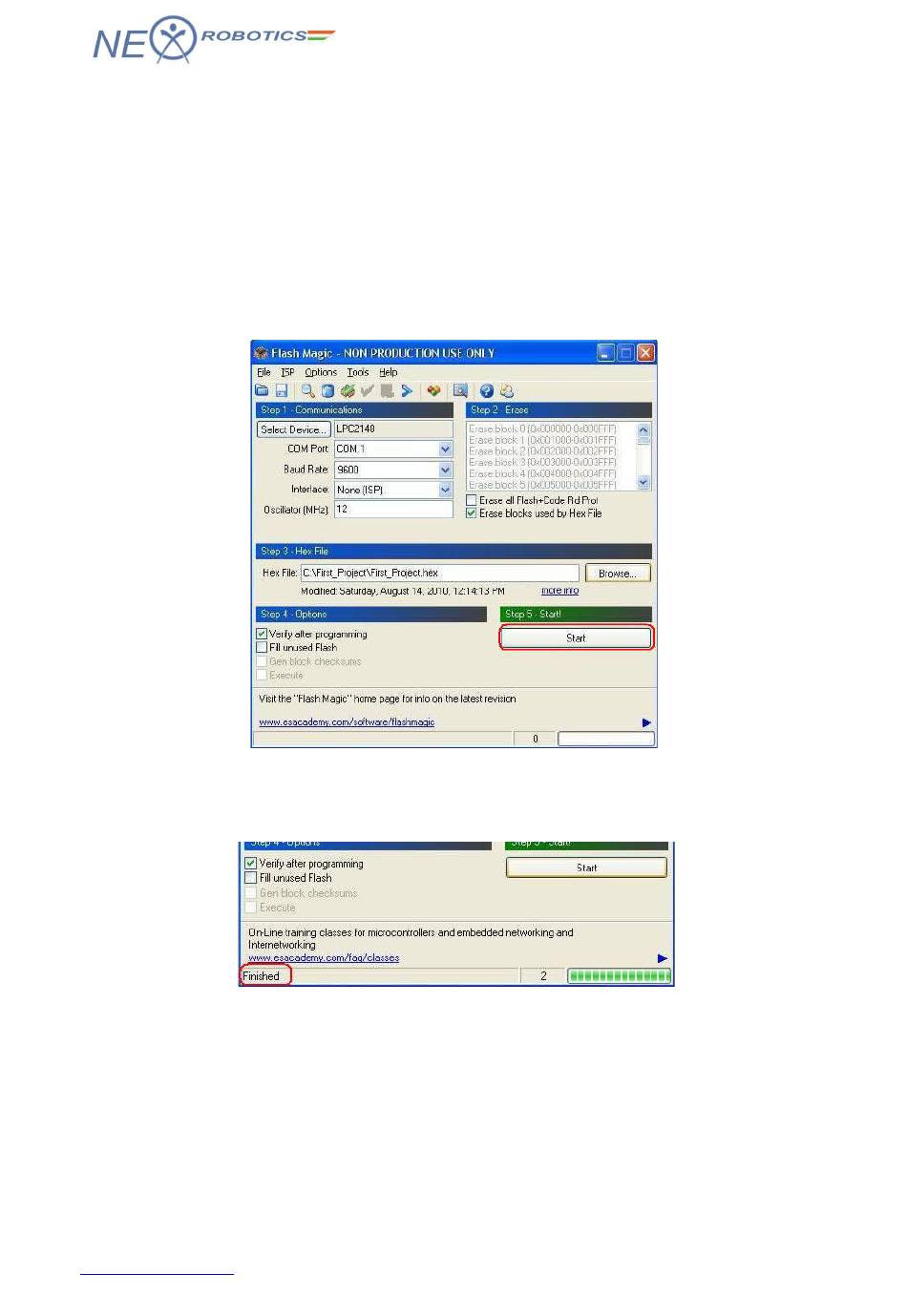

7. After ensuring the hardware setup in step 6 click start to begin programming the hex file.
8. Observe the status bar at the bottom of the Flash Magic tool. Wait for the "Finished"
status and press "Reset" on the LPC2148 development board and observe the LEDs.
If not successful then repeat again from step 6.
