CDVI V1ER Quick Start Manual

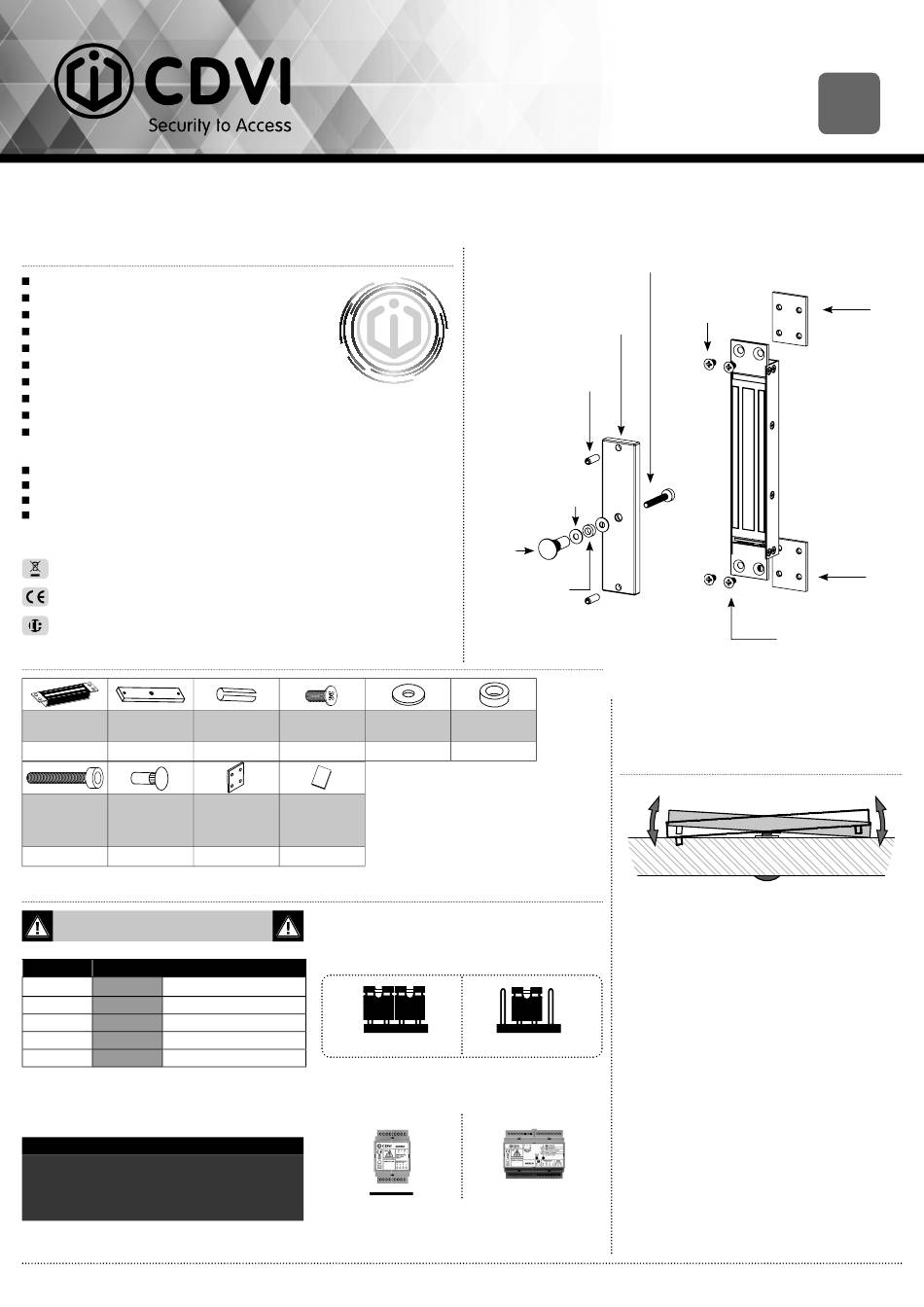

PRODUCT PRESENTATION
Monitored
Mortice
High Corrosion resistance
3,35
Delivered with armature
No mechanical wear
Ease of installation
Recommended for interior use
Fail safe (Door unlocked when power off)
Holding force: 180 kg
Built-in varistor: Built-in electronic protection
to eliminate back EMF
Dimensions (L x W x D): 202/166 x 35,8 x 21mm
Armature dimensions (L x W x D): 130 x 32 x 9mm
Power supply: 12/24V dc
Power absorption: 12 V DC = 450mA
24 V DC = 225mA
WEEE & RoHS
EC certifi cation
IP42
PACKAGE CONTENTS
9
32
Armature
Magnetic lock
plate
1 1
M5x35
screw with
Cap nut
glued rubber
washer
1 1
ELECTRICAL CONNECTIONS
12V dc default setup
Wires Correspondance
+
Red 12 or 24V dc
-
White - 0 V
Yellow NC Normally closed
Blue C COM
Orange NO Normally open
The N.O./N.C. signal only switches when the door is
closed with the power to it on.
IMPORTANT NOTE
Check the jumper position before connecting the
lock to the input current. A wrong position could
damage the lock. This type of damage is not
covered by the warranty.
All the information contained within this document (photos, drawing, features, specifi cations and dimensions) could be perceptibly different and can be changed without prior notice.
V1ER

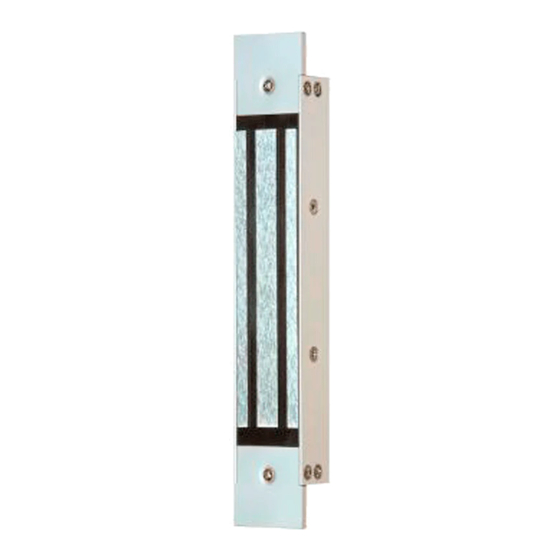

180 Kg Mortice Electromagnetic lock
32
3
10
17,15
YEAR
WARRANTY
34,5
Roll pin M5X10
5x16 screw washer
2 8
Joggle
Manual
bracket
2 1
6,5 19 6,5
Voltage selection jumpers
12V dc
Recommended power supplies
ADC335 ADC335
Armature plate
Roll pin
Steel
washer
Cap nut
Rubber
washer
Steel Rubber
washer
2 1
Ce document est la propritété exclusive de CDVI, il ne peut être communiqué à des tiers sans son autorisation.
This document is the exclusive property of CDVI and it may not be disclosed to others without permission.
F0525000005-A
C.A. :
V1ER
Mortice narrow electromagnetic lock - 180kg
Material : Aluminium
General tolerance:
DWG.: A. Broustal
Vol. (mm
24V dc
ADC612S
G0301FR1035V02
Armature plate screw
Screw
MOUNTING RECOMMENDATIONS
SCALE 1:1
0.2 Surface condition: Ra 3,2
3
) : Weight (g) :
Armature plate
- It is vital to fi x the electromagnetic lock and
armature plate solidly on their supports.
- Make sure that the magnet and the armature
meet evenly over their entire mating surfaces.
- The armature plate must be able to pivot slightly
about its center mounting screw to compensate
for any door misalignment.
EN
Joggle bracket
Joggle bracket
Screw
Plan D1297-ens
Edition 02
Date 04/05/2018
A3H Project : A0238004
31, av du Gal Leclerc
93691 PANTIN CEDEX
F R A N C E
Tel : 33(0)148910102
Fax : 33(0)148912121
www.cdvi.com
