LONGER RAY5 20W Quick Start Manual

Quick Start Guide
LONGER LASER ENGRAVER RAY5 20W
Thank you for choosing our products.
Please read this manual carefully before use.
Please reference more details on digital manual in TF card about the operation of
Laser Engraver and installation of LaserGRBL or LightBurn.
MORE INFORMATION
Support Email : support@longer3d.com
Facebook Group: Longer Laser Engraver Official Group
If you have any question, please feel free to contact us as above.
*Copyright © Shenzhen Longer 3D Technology Co.,Ltd. All Rights Reserved
3 .
We strongly recommend placing the machine in a well-ventilated room, and at the same
time, the door of the room has a sealing effect and the windows have curtains, so as to
effectively avoid looking directly at the laser beam and some smoke and steam , Particles
and other highly toxic substances. At the same time, you can pay attention to the Longer
products (cover) in the follow-up.
4 .
The high-energy diode laser beam can produce extremely high temperatures and significant
amounts of heat as the substrate material is burned away while engraving and cutting. Some
materials are prone to catch fire during cutting operations creating flame, fumes and smoke.
5 .
Although the RAY5 has a built in flame sensor, this technology should NOT be considered
100% accurate and should be seen only as a warning system.
P.S. During the working process of RAY5, if a flame is found, the machine will stop the laser
and make a sound to indicate abnormal conditions. Please pay attention to the working
status of the machine.
6 .
During operation to ensure that any flare ups/ flame are properly contained and extinguished.

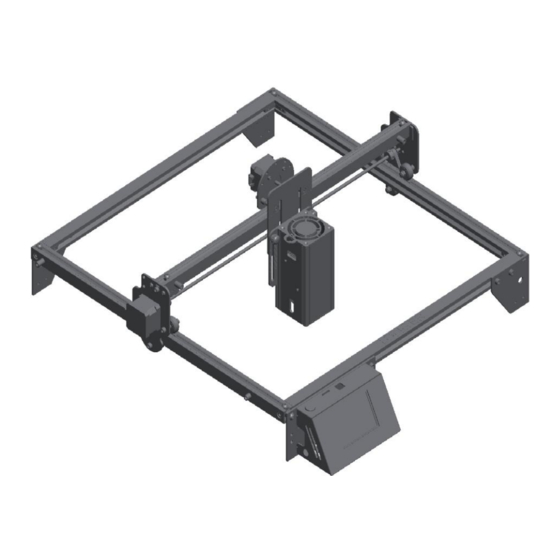

L ASE R EN GRAVE R I NT RO D U C T IO N
1 2 3
4
9
10
8
7
13
12
11
18
17
www.longer3d.com
Facebook ID: longer3dprinter
Youtube channel: Longer 3D
1 Y-Axis Motor
2
X-Axis Beam
3 Laser Module
4 Touch Screen
5 Synchronous Shaft
6 Support Feet
7 Left Frame
5 6
Rear Frame
8
9 X-Axis Motor
10 Laser Module
16
Power Switch
11
12 TF Card Slot
13 USB Port
15
Control Box
14
14
15 Front Frame
Right Frame
16
Power Port
17
Limit Switch
18
1 .
The RAY5 engraves and cuts materials by the means of a high-energy diode laser beam.
The hazards associated with a high-energy diode laser beam include the possibility of fires,
generation of hazardous and/or irritating toxic fumes, but more importantly damage to eyes
and skin.
2 .
RAY5 Unboxing Video
Laser class
Class I
Class IIa
Class IIa
Class II
Class IIIb
Class IV
The high energy laser beam can cause severe eye damage, including blindness and serious
skin burns.
Improper use of the controls and modification of the safety features may cause serious eye
injury and burns.
DO NOT look directly into the laser beam;
DO NOT aim the laser beam at reflective surfaces;
DO NOT operate the laser without PPE protection for all persons nearby in the
proximity of the RAY5;
DO NOT allow unsupervised access to the RAY5 to children;
DO NOT allow access near the RAY5 to pets;
DO NOT modify or disable any safety features of the laser system;
DO NOT touch the high energy laser beam;
ATT EN T IO N
Laser engravers are divided into several internationally valid classes based on
their performance and the risk of injury.The RAY5 falls into the Class IV (Class
4 IEC standard focus on the American FDA classification).
Class Definition.
Class I laser radiation is not considered hazardous.
Class IIa laser radiation is not considered hazardous if viewed
for any period of time less than or equal to 1x103 seconds, but is
considered a chronic viewing hazard for any period of time
greater than 1x103 seconds.
Class II laser radiation is considered a chronic viewing hazard.
Class IIIa laser radiation is, depending upon the irradiance,
either an acute in- trabeam viewing hazard or chronic viewing
hazard. If viewed directly with optical instruments, Class IIIa
laser radiation is classified as an acute viewing hazard.
Direct Class IIIb laser radiation is considered an acute hazard to
the skin and eyes.
Class IV laser radiation is considered an acute hazard to the
skin and eyes from both direct and scattered radiation.
Please wear Personal Protective Equipment (PPE, safety glasses are designed
to filter specific ranges of laser wavelength. The RAY5 safety glasses provided
are specific for LONGER Laser Module;) when using the engraver.
PA C K IN G L IST
X-Axis Frame
Laser Module Timing Belt
3 Rear Frame
Power Cable
Safety Glasses USB Cable
Plywood Support Feet
Card Reader
Control Box & TF Card
Front Frame
1
Limit Switch
M3*6X2
Thumb ScrewX2
M5*6X4
M5*8X1
Allen Wrench
M5*16X8
M5*25X4
Wrench
M5 Flat WasherX2
T-shaped Screw X4
Corner Groove X4
Laser Focus Plate
Nylon Isolation Column
Cable Tie Wooden Brush
