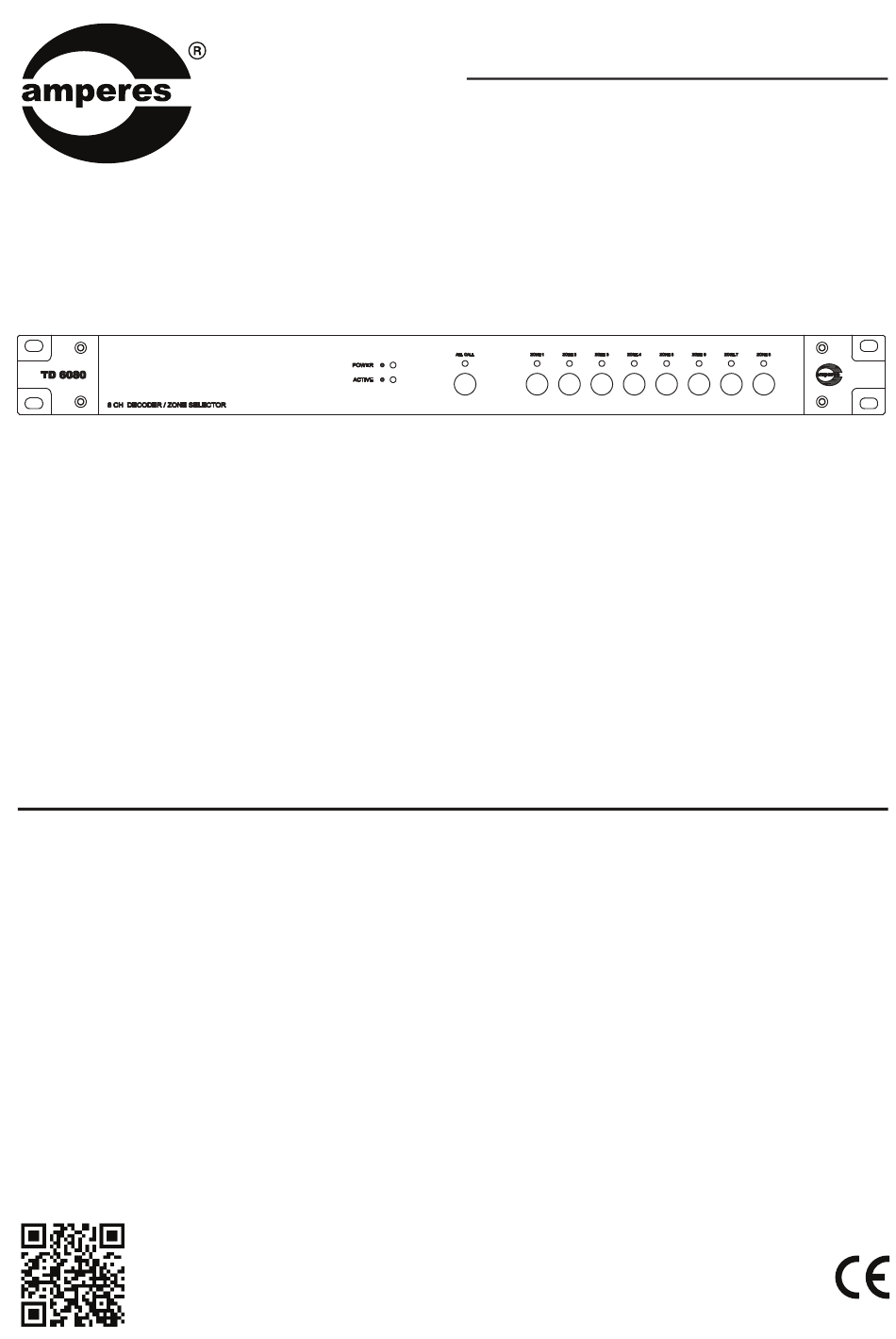

INSTRUCTION MANUAL
TD6080
8 Ch Decoder / Zone Selector
Thank you for choosing another quality product from Amperes Electronics.
TD6080 is an integrated unit of PD mic data decoder and zone selector in a box, thus saving unit count of using separate zone
decoder and zone selector, as well as saving rack spaces. Additional feature has been added to make the unit more flexible
such as All Call relay overriding option for paging or all call activation.
We appreciate that you read through the manual to avoiid any mishandling as well as to explore the full potential that this unit
can offer. Keep this manual for future reference and we believe that your are getting an optimum product in its class.
This manual is suitable for TD6080 firmware version 2.04 and above
Ver 4 / 2023

Advertisement

loading
Need help?

Need help?

Do you have a question about the TD6080 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Amperes TD6080

Summary of Contents for Amperes TD6080

  • Page 1 Thank you for choosing another quality product from Amperes Electronics. TD6080 is an integrated unit of PD mic data decoder and zone selector in a box, thus saving unit count of using separate zone decoder and zone selector, as well as saving rack spaces. Additional feature has been added to make the unit more flexible such as All Call relay overriding option for paging or all call activation.

  • Page 2: Parts Identification

    24V DC supply is required to operate this unit. Ensure polarity is correctly terminated to the port. It is recommeded that supply with 1A rating of regulated source is used. Amperes PS9400 is recommended as a DC supply source to your installation.
  • Page 3 The user has the flexibility to configure the zoning system as each zone comes with single amplifier output connection. Please observe polarity when terminating the amplifier / speaker zones and ensure that each zone is not over overloaded ( max load 500W l00V line ). TD6080 | 8 CH DECODER / ZONE SELECTOR PAGE 3...
  • Page 4 Zone 8 Zone 1 DOWN SPEAKERS 500W 100V LINE POWER AMPLIFIER POWER AMPLIFIER QP2000S Note: All PD Series of Amperes paging microphones can be used with TD6080. PAGE 4 TD6080 | 8 CH DECODER / ZONE SELECTOR...
  • Page 5 - - - - - - - - 100V Output QP2500 Zone 1 Zone 8 SPEAKERS Note: Also refer to page 10, in using EP1200 to trigger emergency overriding at volume controllers. TD6080 | 8 CH DECODER / ZONE SELECTOR PAGE 5...
  • Page 6 1) Use EX1103A if more than one PD2400 / 2800 are available in the system. The single output (RJ45) can be directly connected to TD6080 mic input port. 2) A higher priority mic shall override any lower priority unit in active.
  • Page 7 3) This setup would normally be used together with matrix controller. 4) Use of DA2208 at paging mic audio output is required if more than 6 amplifiers are installed in the system. TD6080 | 8 CH DECODER / ZONE SELECTOR PAGE 7...
  • Page 8 PAGING CLIENT PD2800 24V DC EX2800 INPUT Network Switch iPX5151 PAGING CLIENT TIME OUT 5 MIN LINE / MIC OUTPUT MASTER / SLAVE TD6080 DC 24V Line Out 100V SPEAKERS QP2500 PAGE 8 TD6080 | 8 CH DECODER / ZONE SELECTOR...
  • Page 9 : 10000 0000 - Zone 1 to 8 (DIP Switch 8 ON) 01000 0000 - Zone 9 to 16 (DIP Switch 8 OFF) 11000 0000 - Zone 17 to 24 (DIP Switch 8 OFF) TD6080 | 8 CH DECODER / ZONE SELECTOR PAGE 9...
  • Page 10 Press Zone 1 to activate Local All Call Press Zone 2 to activate Remote All Call To exit setting mode, press All Call button for more than 3 seconds, All Call LED will blink slowly. PAGE 10 TD6080 | 8 CH DECODER / ZONE SELECTOR...

  • Page 11: Technical Data

    482 x 44 x 180 mm Weight 2 kg Note: The above specifications are correct at time of printing but subjected to changes without prior notice due to product improvements. TD6080 | 8 CH DECODER / ZONE SELECTOR PAGE 11...

  • Page 12: Warranty Conditions

    Information contained in this manual is subjected to change without prior notice and does not represent a commitment on the part of the vendor. Amperes Electronics Sdn Bhd shall not be liable for any loss or damages whatsoever arising from the use of information or any error contained in this manual.
