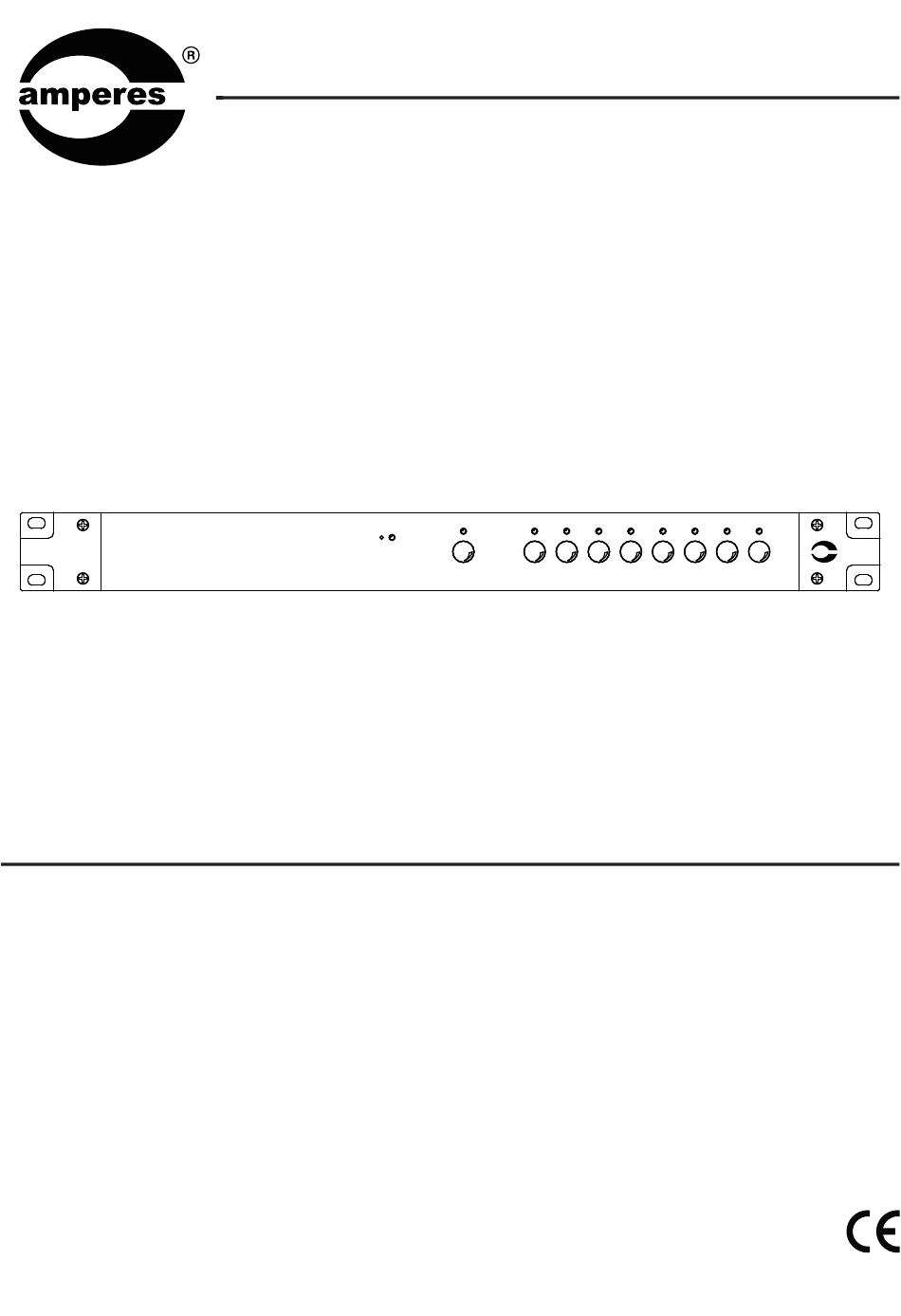

INSTRUCTION MANUAL
TD6400
2 x 4 Ch Decoder / Zone Selector
ALL CALL
ZONE 1
ZONE 2
ZONE 3
ZONE 4
ZONE 5
ZONE 6
ZONE 7
ZONE 8
POWER
TD 6400
amperes
DUAL 4 CH DECODER / ZONE SELECTOR
Thank you
for choosing another quality product from Amperes Electronics.
TD6400 works similarly to TD6080, but the output zones are divided further to work with 2 x 4 outputs. It provides more
flexibility when it is to work with Matrix Controller ( MxP2288 ) as matrix output zone extender. This shall reduce the number
of unused zones in matrix groupings.
VER 2 / 2020
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Amperes TD6400
Summary of Contents for Amperes TD6400
- Page 1 Amperes Electronics. TD6400 works similarly to TD6080, but the output zones are divided further to work with 2 x 4 outputs. It provides more flexibility when it is to work with Matrix Controller ( MxP2288 ) as matrix output zone extender. This shall reduce the number of unused zones in matrix groupings.
-
Page 2: Parts Identification
24V DC supply is required to operate this unit. Ensure polarity is correctly terminated to the port. It is recommended that supply with 1A rating of regulated source is used. Amperes PS9400 is recommended as a DC supply source to your installation. -
Page 3: Dip Switch
8. UNIT ADDRESS DIP SWITCHES Each TD6400 caters for 2 sets of 4 consecutive zone outputs. Zone assignment is achieved by configure the DIP switch setting to the binary number of the starting zone. TD6400 allows flexible starting number of each group of zones. Maximum zone number allowed is 138 ( starting zone must be set to 135 ). - Page 4 SPEAKERS Zone 8 Zone 1 DOWN 500W 100V LINE POWER AMPLIFIER POWER AMPLIFIER QP2000S Note: All PD Series of Amperes paging microphones can be used with TD6400. PAGE 4 TD6400 | 2 x 4 CH DECODER / ZONE SELECTOR...
- Page 5 - - - - - - - - 100V Output QP2500 INPUT LINK SPEAKERS Zone 1 Zone 8 Note: Also refer to page 10, in using EP1200 to trigger emergency overriding at volume controllers. TD6400 | 2 x 4 CH DECODER / ZONE SELECTOR PAGE 5...
- Page 6 2) A higher priority mic shall override any lower priority unit in active. PD2400 : 3 levels of priority available for PD2400. PD2800 : 9 levels of priority available for PD2800. PAGE 6 TD6400 | 2 x 4 CH DECODER / ZONE SELECTOR...
- Page 7 3) This setup would normally be used together with matrix controller. 4) Use of DA2208 at paging mic audio output is required if more than 6 amplifiers are installed in the system. TD6400 | 2 x 4 CH DECODER / ZONE SELECTOR PAGE 7...
- Page 8 GROUP A GROUP B GROUP A GROUP B TD6400 3A NO LINE LEVEL INPUTS / OUTPUTS Another Quality Product From AMPERES ELECTRONICS 100V Line Out SPEAKERS QP2500 INPUT LINK PAGE 8 TD6400 | 2 x 4 CH DECODER / ZONE SELECTOR...
- Page 9 The above configurations shows cascading for several TD6400. Note: That the paging mic audio goes to mixer and thereafter to EP1200. In this case, any paging would mute all incoming BGM. TD6400 | 2 x 4 CH DECODER / ZONE SELECTOR PAGE 9...
- Page 10 - ve Note: Trigger of ‘ALL CALL’ button at TD6400 front panel shall ON all zones but would not be able to override volume controllers. This is to avoid unnecessary announcement or BGM to be broadcasted to the selected zones.
-
Page 11: Technical Data
482 x 44 x 180 mm Weight 2.00 kg Note: The above specifications are correct at time of printing but subjected to changes without prior notice due to product improvements. TD6400 | 2 x 4 CH DECODER / ZONE SELECTOR PAGE 11... -
Page 12: Warranty Conditions
Only Amperes Electronics Service Centres are allowed to make warranty repairs : a list of Amperes Electronics Service Centres may be asked for by the purchaser or send directly to Amperes Electronics Sdn Bhd at 70 Jalan Industri PBP 3, Tmn Perindustrian Pusat Bandar Puchong, 47100, Puchong, Selangor, Malaysia or its authorized dealers.
