INSTRUCTION MANUAL

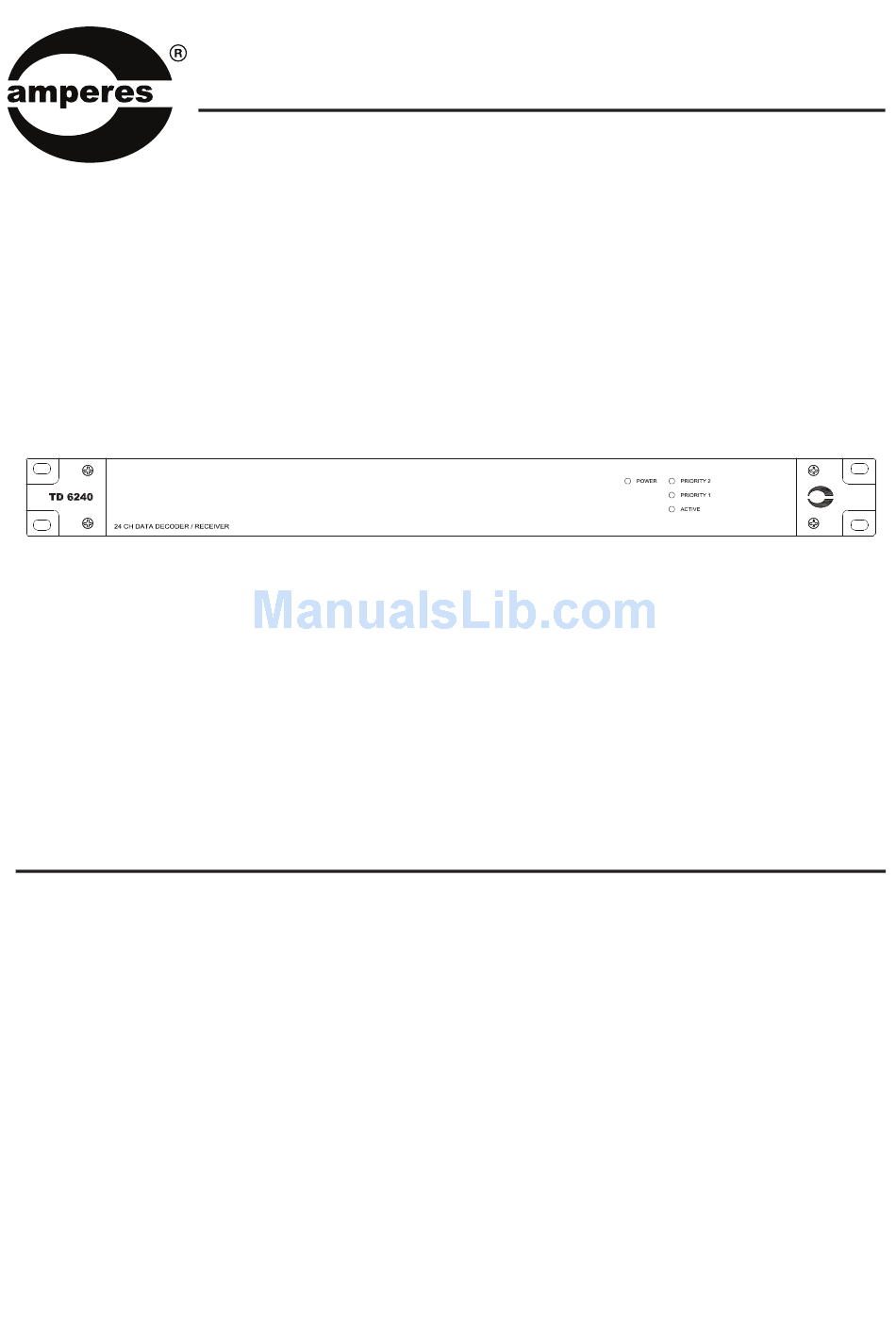

TD6240

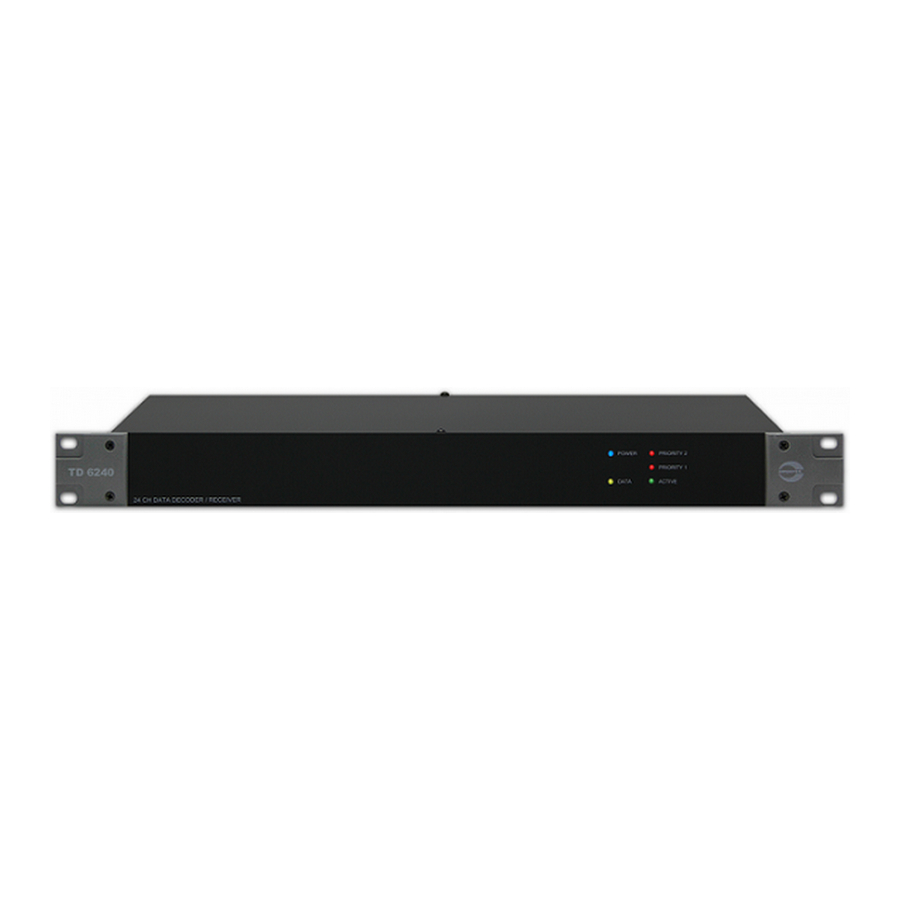

24 Channel Data Decoder
amperes
Thank you
for choosing another quality product from Amperes Electronics.
Amperes has upgraded the protocols in PD series paging microphones, MatriMix as well as PMX system. With this
harmonised data, all the equipments can be used or interchanged seamlessly. As such, the firmware of TD6240 has been
upgraded as well, to cater for the needs.
We shall endeavor to make products with contemporary needs and yet expandable for future upgrades. We are sure you
make the right decision to choose Amperes, which is not only offering the product that meets your budget, but perform beyond
your expectation.
We appreciate that you read through the manual to avoid any mishandling as well as to explore the full potential this unit can
offer. Keep this manual for future reference and we believe that you are getting an optimum product in its class.
Ver 5 / 2015
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Amperes TD6240
Summary of Contents for Amperes TD6240
- Page 1 We shall endeavor to make products with contemporary needs and yet expandable for future upgrades. We are sure you make the right decision to choose Amperes, which is not only offering the product that meets your budget, but perform beyond your expectation.
- Page 2 (Part 7). Ensure correct polarity and the unit setting. See also item 9. More than one TD6240 shall be used for larger system, such as 25 channel and above. There is no limitation on the number of units that can be cascaded.
- Page 3 SIG IN SIG IN SIG IN SIG IN SIG IN SIG IN SIG IN MUSIC SOURCE POWER MENU QP2500 a m pe re s DOWN Speakers 500W 100V LINE POWER AMPLIFIER Power Amplifier TD6240 | PAGING MICROPHONE DATA DECODER PAGE 3...
- Page 4 : 10000 - Zone 1 to 24 01000 - Zone 25 to 48 Each connection port is for 6 zones triggering. Connect the correct port according to the zone numbering. (See section : Connection to speaker zone selector) PAGE 4 TD6240 | PAGING MICROPHONE DATA DECODER...
- Page 5 OFF = TIMER 5 MIN NOTE : Paging mic can be set to any priority in a circuit and can be connected to any of the ports at TD6240. PD2400 : In a circuit with 2 or more PD2400, the unit which is triggered first would be served and the other left in busy mode.
- Page 6 Connecting to Speaker Zone Selector Remote select port from ZS5601 can be plugged Use Cat5 cable to any of the port at TD6240. provided for To external (Only applicable to new version of ZS5601 only) triggering port volume connection controllers...
- Page 7 Cascading The Units Max number of decoders that can cascaded is 8 inclusive Fr. Paging Mic ( Amperes PD2400 / 2800 of master. through EX2800) To Pre-amplifier mixer input (Only first decoder audio output is used) Z7 - 12 Z19 - 24...
- Page 8 Only Amperes Electronics Service Centres are allowed to make warranty repairs : a list of Amperes Electronics Service Centres may be asked for by the purchaser or send directly to Amperes Electronics Sdn Bhd at 70 Jalan Industri PBP 3, Tmn Perindustrian Pusat Bandar Puchong, 47100, Puchong, Selangor, Malaysia or its authorized master distributor, TNT Links Sdn Bhd / MyPA Systems Sdn Bhd.
