Read these instructions carefully. Failure to follow these instructions completely could damage the product or cause
a hazardous condition.
•
Check the ratings given in the instructions and on the product your installing to make sure the ESTOP1-0H Gas
Timer is suitable for your application. See description below.
•
Installer must be a trained, experienced service technician or gas plumber.
•
After installation is complete, check out product operation as provided in these instructions.
Description
The ESTOP1-0H Gas Timer is an emergency shut-off, mechanical timer, and manual shut-off gas valve
designed to be installed on the inlet side of a gas appliance to enable the user to control the time gas is allowed to flow
to a gas appliance. This is a mechanical timer (no batteries or power required) that has the ability to control gas flow for
1-hour (60 minutes). In addition, both models have an emergency shut-off (red knob) that enables the user to quickly and
easily shut the gas completely OFF, should the need arise.
The ESTOP1-0H Gas Timer body is 4-inches high x 2 ⅞ -inches wide x 2 ⅛ -inches deep and can replace a manual
shut-off valve and meet local code requirements as the accessible shut-off valve. It can be use for multiple applications
(indoor or outdoor) from gas fire pits, gas grills, gas logs, gas torch lights, etc., anywhere a shut-off valve is a required or a
specified by a manufacturer, code requirement or customer.
Specifications
Pipe Size: ½" NPT (2) inlets and (2) outlets
CSA Rated Capacity: 165,000 Btu/Hr at 1" Pressure Drop (NG)
Timer Accuracy: 60 Min. +/- 15% or 2.5 Hrs.+/- 15%
Multiple Mounting Holes: Uses 3/16-24 machine threads
CSA Certified: Tested to ANSI Z21.21; CSA 6.5
CALIFORNIA PROPOSITION 65
This product can expose you to Lead, which is
known to the state of California to cause cancer
and birth defects or other reproductive harm.
(For more information, go to www.p65warnings.ca.gov)
Skytech:
Gas Timer
ESTOP1-0H

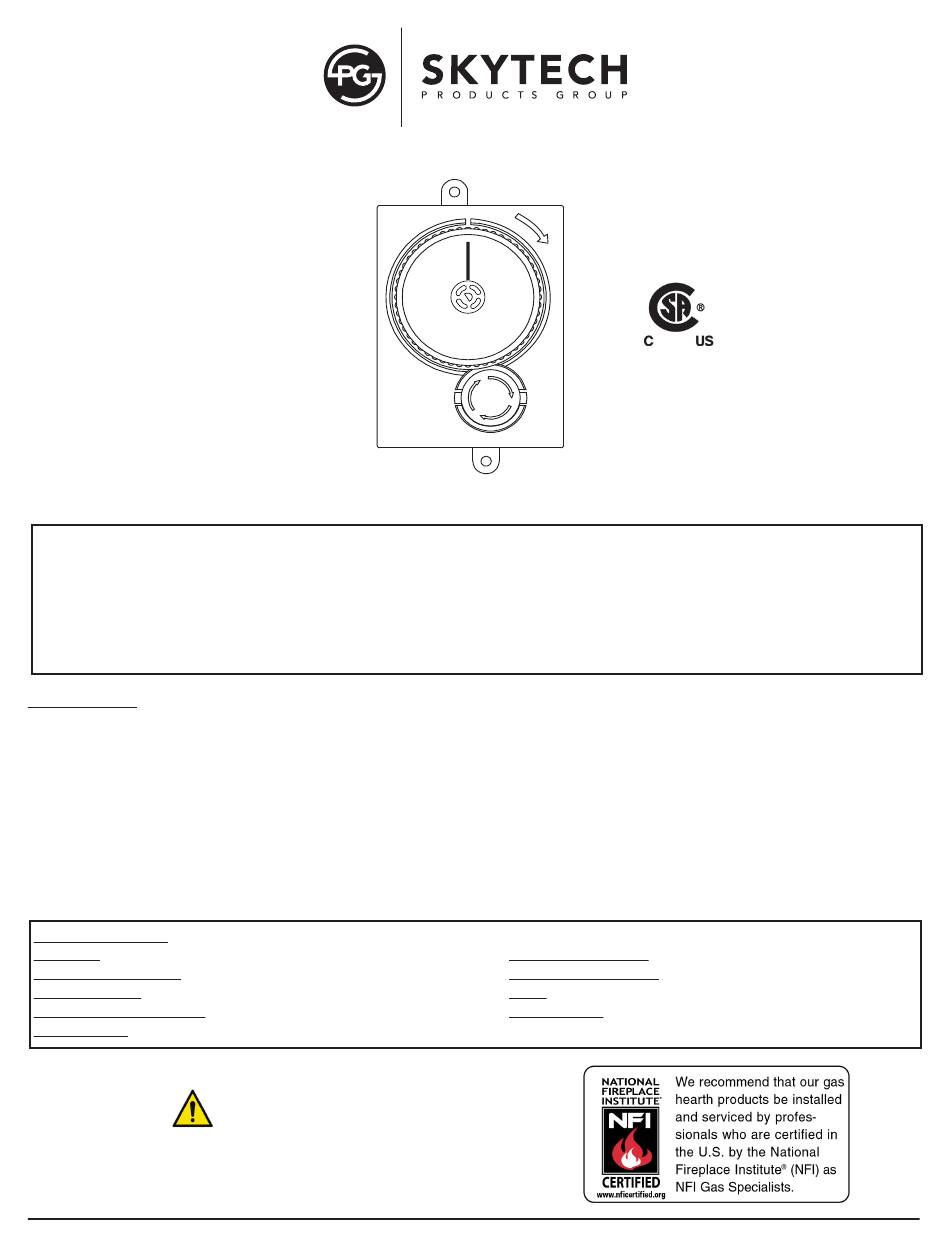

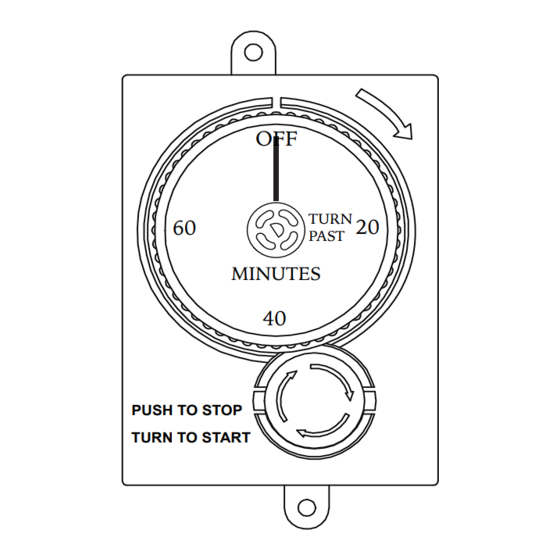

E-Stop Gas Timer
PUSH TO STOP
TURN TO START
Model: ESTOP1-0H
WARNING
OFF
TURN
60
20
PAST
MINUTES
40
E-STOP1-0
WARNING
Maximum Pressure: ½" PSI
Ambient Temperature: 0°F to 175°F (79°C)
Inlets: Have fine mesh screens to filter any debris
Designed For: Natural or LP Gas (no conversion required)
OFF
2.5
HOURS
2
U.S. PATENT
10,520,108
PUSH TO STOP
TURN TO START
E-STOP2-5
0.5
TURN
PAST
1
1.5
REV. 4-28-23
