Model: E-STOP1-0

Description:

The E-Stop is a manual shut-off valve/mechanical timer designed to be installed on the inlet side of a
gas appliance to enable the user to control the time that gas is allowed to flow to a gas appliance. This is a mechanical
timer that has the ability to control gas flow for 1-hour (60 minutes) using the E-STOP1-0 model or 2.5-hours using the
E-STOP2-5 model. In addition, the E-Stop has a safety feature (red knob) that enables the user to shut the gas
completely OFF immediately in case of an emergency.
The E-Stop body 4-inches tall by 2 ⅞ -inches wide and can replace a manual shut-off valve and meet local code
requirements as the accessible shut-off valve. It can be use for multiple applications from gas fire pits, gas grills, gas logs,
gas torch lights, etc. where a shut-off valve is a requirement.
Specifcations:
Pipe Size: ½" NPT (2) inlets and (2) outlets
Designed For: Natural or Propane Gas
Max Temperature: 175° (79°C)

Operation

TO START: First rotate the clear dial past 20 minutes to set
the proper time. Timer will begin "clicking" the predetermined
countdown time. Turn red knob clockwise (about a ¼ turn)
until it pops outward.
TO STOP: Simply press red knob inward. The red knob will
lock down with a "click" and stop gas flow. See Figs. 1 & 2.
Note: It is not recommended to force the timer knob to the
OFF position after time is set. Long term effects can
potentially weaken the spring inside the E-Stop and affect the
accuracy of the time.
Skytech: E-Stop
E-Stop Gas Timer
PUSH TO STOP
TURN TO START
OFF
TURN
20
PAST
PATENT PENDING
MINUTES
40
2.5
Model: E-STOP2-5
Pressure: Max ½" PSI
Btu Rating: 170,000 Max
Timer Accuracy: 60 Min. +/- 15%
Red Knob: Turn
clockwise and knob
will "pop" up to allow
gas flow.
Timer Dial:
Rotate clockwise to
start time. Adjust dial to
desired time frame.

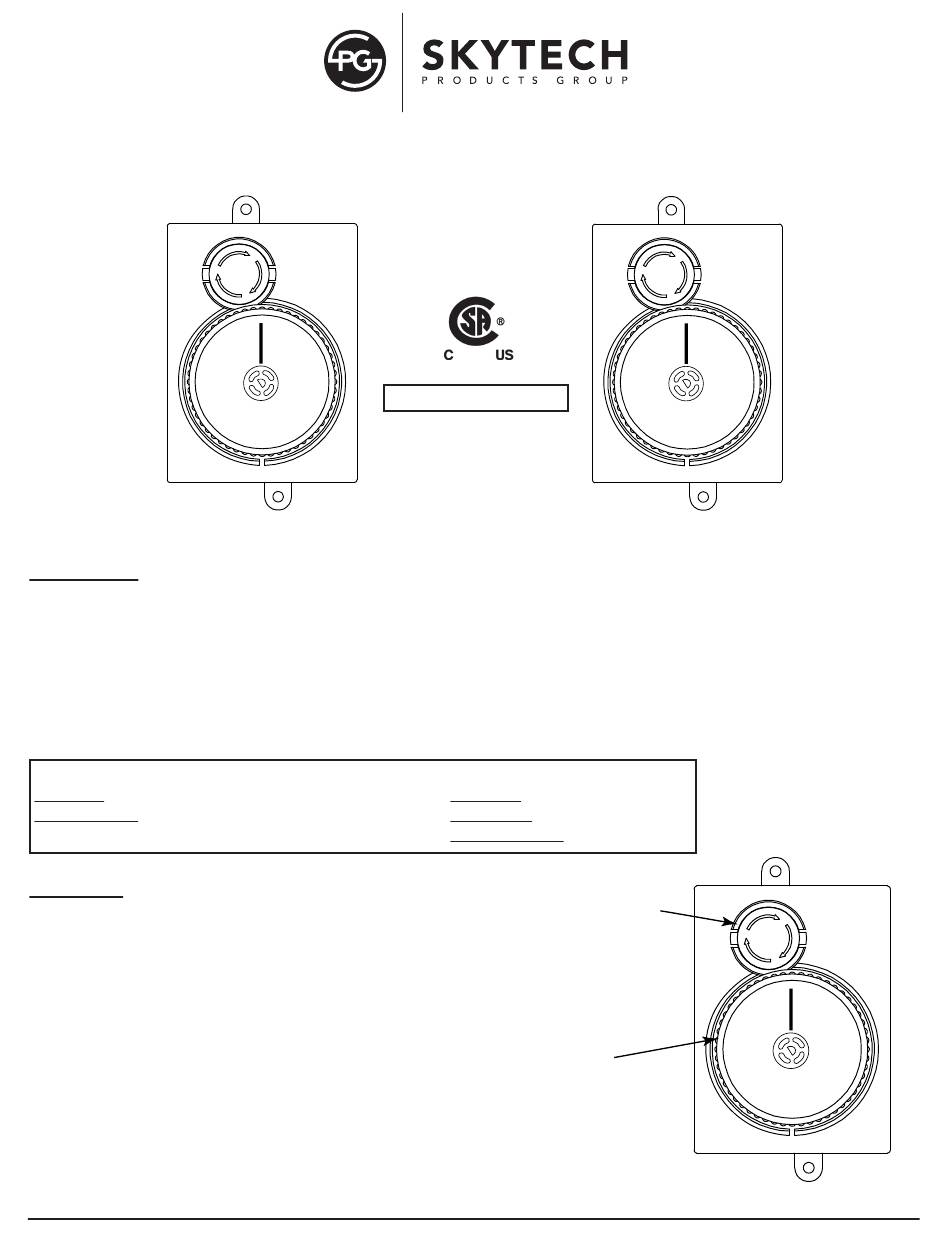

Fig. 1 E-Stop operation
PUSH TO STOP
TURN TO START
OFF
TURN
0.5
PAST
1
HOURS
2
1.5
PUSH TO STOP
TURN TO START
OFF
TURN
60
PAST
40
REV. 2-15-18
20
