Skytech TM-3 Installation And Operation Instructions

INSTALLATION AND OPERATION INSTRUCTIONS
IF YOU CANNOT READ OR UNDERSTAND THESE INSTALLATION INSTRUCTIONS DO

INTRODUCTION

This Wired Wall Timer system was developed to provide safe, reliable, and user-friendly remote control system for gas heating ap-
pliances. The timer is intended as a replacement for manual ON/OFF switches that currently operate millivolt and electronic ignition
appliances.

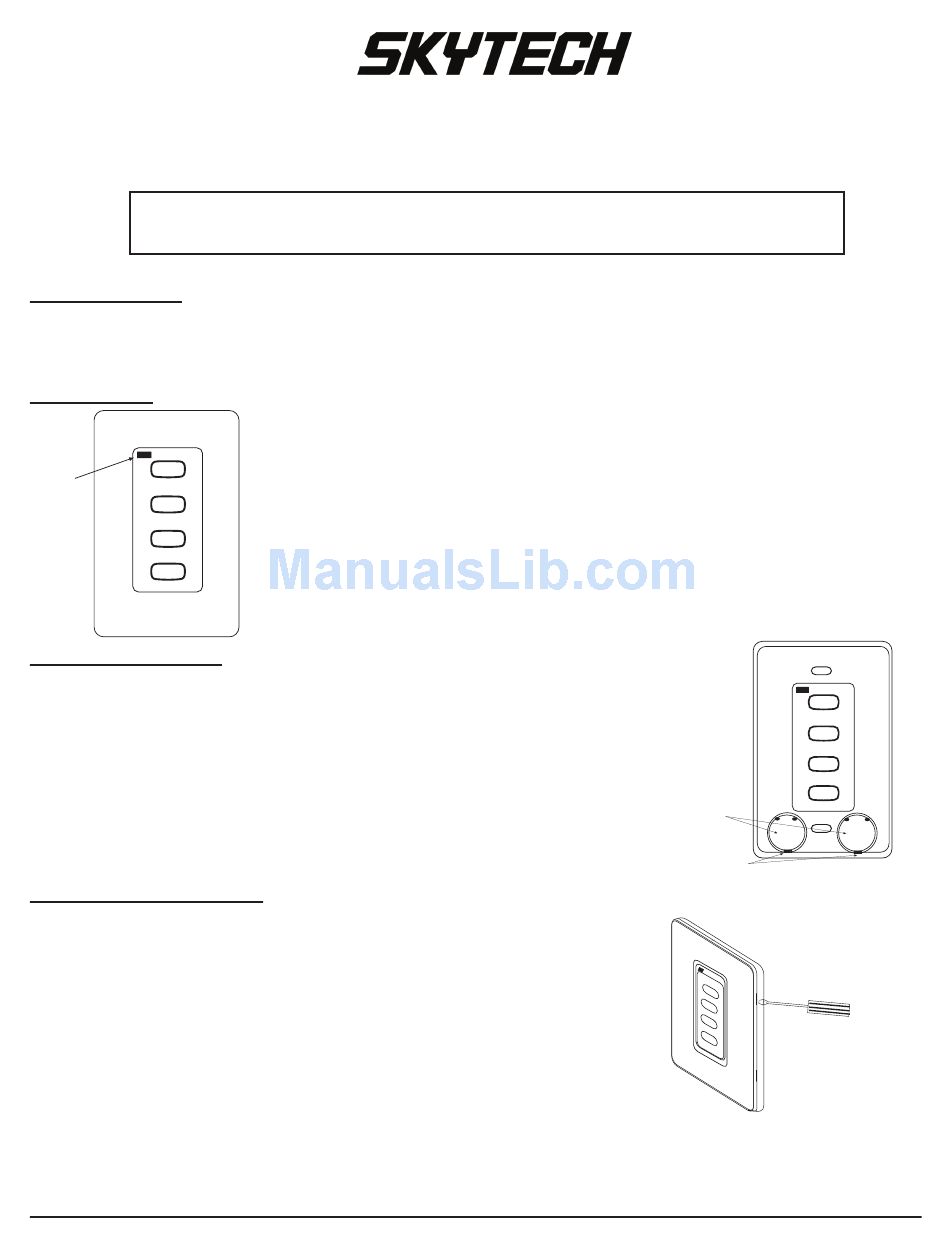

WALL TIMER

30 MIN
Indicator
Light
60 MIN
120 MIN
OFF

TO INSTALL BATTERIES

1. Remove face from backing plate by inserting a small screwdriver into the small slot at
the top or bottom of the faceplate as shown below then snap off.
2. Locate the (2) holders for the 3V button cell batteries.
3. Place the button cell batteries into the battery holders, inserting the top edge of the
battery underneath the metal clips, and snap into place. (Make sure that the batteries
are installed with the (+) plus side as shown to the right.
4. After the batteries are installed replace the faceplate on the base.

TO REMOVE THE BATTERIES

1. Remove face from backing plate by inserting a small screwdriver into the small slot on
the side at the top or bottom of the faceplate as shown to the right then snap OFF.
2. Locate the (2) holders for the 3V button cell batteries.
3. Insert a small screwdriver into the slot at the button cell battery and pop the battery out
(Slots shown in picture above).
Skytech TM-3
Model: TM-3
NOT ATTEMPT TO INSTALL OR OPERATE
The wall timer operates on (2) 3V button cell batteries (included). Before using the wall
timer, install the two (2) 3V button cell batteries. Follow instructions below.
The wall timer has 30 MIN, 60 MIN, 120 MIN, and OFF buttons.
• 30 MIN: Appliance will burn for 30 minutes then turn off automatically
• 60 MIN: Appliance will burn for 60 minutes then turn off automatically
• 120 MIN: Appliance will burn for 120 minutes then turn off automatically
• OFF: Will manually turn appliance burner off.
When any of the buttons on the wall timer is pressed, an indicator light on the wall timer's
face illuminates to verify that a signal has been sent. If the signal light does not illuminate,
or becomes dim, check/replace the batteries.
30 MIN
60 MIN
120 MIN
Insert batteries
OFF
into holder and
snap into holder
+
Plus
Side
Insert small screwdriver
into slot and pop out
batteries from holder
Insert small screwdriver
into slot at the top or bottom
and pop cover off
3 0
6 0
1 2
0
O F
F
REV 12-26-13 Page 1
+
