INTRODUCTION
This SKYTECH remote Wireless Wall Timer system was developed to provide safe, reliable, and user-friendly remote control system
for gas heating appliances. The system can be operated manually from the transmitter. The system operates on one of 65,536 security
codes that are programmed into the transmitter at the factory.
WALL TIMER
30 MIN
Indicator
Light
60 MIN
120 MIN
OFF

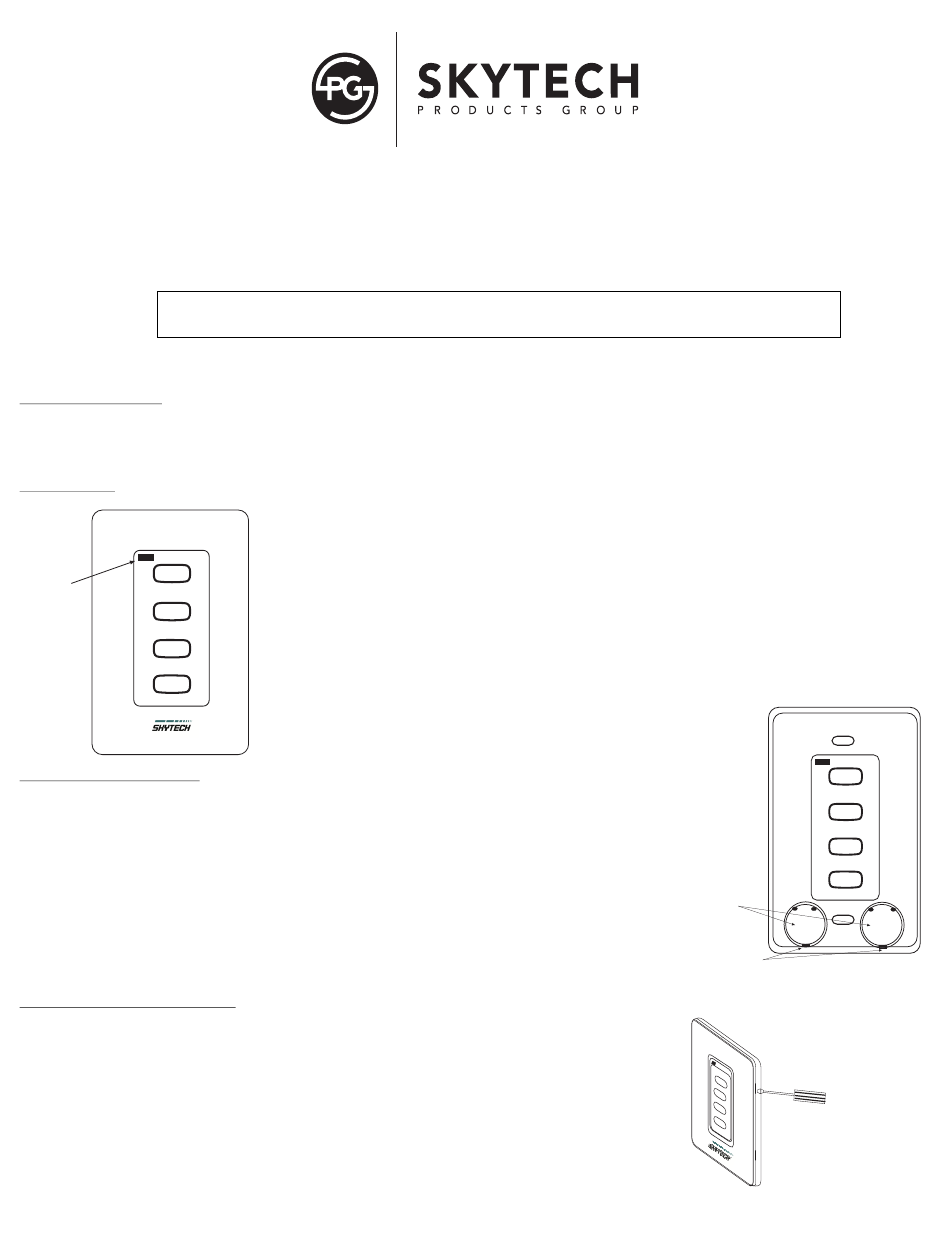

TO INSTALL BATTERIES
1.
Remove face from backing plate by insetting a small screwdriver into the small slot
at the top or bottom of the faceplate as shown below then snap OFF.
2.
Locate the (2) holders for the 3V button cell batteries.
3..
Place the button cell batteries into the battery holders and snap into place.
(Make sure that the batteries are installed with the (+) plus side as shown to
the right.
4.
After the batteries are installed replace the faceplate on the base.
TO REMOVE THE BATTERIES
1.
Remove face from backing plate by insetting a small screwdriver into the small slot
on the side at the top or bottom of the faceplate as shown to the right then snap OFF.
2.
Locate the (2) holders for the 3V button cell batteries.
3.
Insert a small screwdriver into the slot at the button cell battery and pop the
battery out (Slots shown in picture above).
4.
After the batteries are installed replace the faceplate.
___________________________________________________________________________________________________________
Skytech TM/R 2-A
Model: TM/R-2-A
Installation AND OPERATING INSTRUCTIONS
ATTEMPT TO INSTALL OR OPERATE
The wall timer operates on a (2) 3V button cell batteries (included) made
specifically for remote controls and electronic lighters. Before using the wall
transmitter, install the two (2) 3V button cell batteries. Follow instructions below.
The wall timer has a 30 min, 60 min, 120 min, and OFF buttons. When any of the
buttons on the wall timer is pressed, a signal light on the wall timer illuminates
briefly to verify that a signal has been sent. If the signal light does not illuminate,
check the batteries. Upon initial use, there may be a delay of five seconds before
the remote receiver will respond to the wall timer.
1.888.977.6849
30 MIN
60 MIN
120 MIN
Insert batteries
OFF
into holder and
snap into holder
+
Plus
Side
Insert small screwdriver
into slot and pop out
batteries from holder
Insert small screwdr
into slot at the top o
and pop cover of
3 0
6 0
1 2
0
O F
F
REV 7/10/15 Page 1 of 5
+
