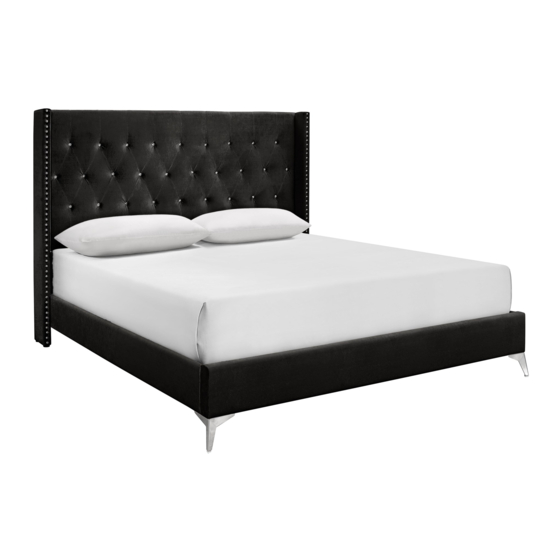

New Classic Furniture HUXLEY B3365-115 Assembly Instructions

Thank you for purchasing this quality product. Be sure to check all packing materials carefully for small parts, which may have
come loose inside the carton during shipment. Identify and count all items and compare with the parts list and/or hardware list
shown below.
PARTS LIST
ITEM DESCRIPTION
1 HEADBOARD
2 HEADBOARD LEG
(RSF)
3 HEADBOARD LEG
(LSF)
4 HEADBOARD RAIL
5 FOOTBOARD
6 FOOTBOARD LEG
7 SLAT
SLAT SUPPORT LEG
8
W/ADJUSTABLE FFET
9 SIDE RAIL (RSF)
10 SIDE RAIL (LSF)
IMPORTANT NOTE :
ASSEMBLY INSTRUCTIONS
HUXLEY EK/WK KING BED
B3365-115 HUXLEY 6/6 EK HB, FB AND SLATS
B3365-335 HUXLEY 6/6-5/0 EK/Q SIDE RAILS
B3365-215 HUXLEY 6/0 WK HB, FB AND SLATS
B3365-235 HUXLEY 6/0 WK SIDE RAILS
SKETCH QTY
1PC
1PC
1PC
1PC
1PC
2PCS
4PCS
8PCS
1PC
1PC
HARDWARE LIST
ITEM DESCRIPTION
A JCBC SCREW -
M8 x 25/32"
JCBC SCREW -
B
M8 x 1 3/8"
JCBC SCREW -
C
M6 x 1 3/8"
JCBC SCREW -
D
M6 x 19/32"
SPRING WASHER -
E
M6 x 15/32"
F
FLAT WASHER -
M6 x 3/4"
SPRING WASHER -
G
M8 x 33/64"
FLAT WASHER -
H
M8 x 55/64
WOOD DOWEL -
I
M10 x 1 3/16"
CSK C/B SCREW -
J
M4 x 1 17/64"
K
M4 ALLEN KEY (2 9/16")
M5 ALLEN KEY (2 9/16")
L
SKETCH QTY
4PCS
4PCS
16PCS
6PCS
8PCS
8PCS
4PCS
4PCS
4PCS
8PCS
1PC
1PC
PAGE 1 OF 3
