RH ESSEX TRACK WINDOW Hardware Installation Instructions

ESSEX TRACK WINDOW HARDWARE INSTALLATION INSTRUCTIONS

Getting Started:

Carefully unpack all materialss and check to make sure you have the following installation parts.
We recommend reading through these instructions before starting the installation.

Parts Included:

• Screws
• Rail(s)
• Mounting brackets + backplate
• Allen keys
• End caps (finials)
• Splice (only included with rails over 9ft)
• No rings come with this collection

Tools You Will Need:

• Drill with a 1/8" bit and a Phillips bit
• Phillips screwdriver
• Metal tape measure
* Please note the important dimensions as they will be helpful in
determining your installation height.

Installing Wall Mount - Single Set:

1. Mark the height you would like the top of your drapery rail to be installed,
taking into account any clearance or puddling you desire at the bottom,
as well as top of rail to top of drapery difference - 11/4".
2. Measure the width of the track. Mark the placement of the two end
brackets at the height determined in step 1, approximately 3" – 4" in
from the ends of where the track will be installed.
Take the back plate off the bracket and place the center of the back
plate at marked height (Remove back plate from the bracket by rotating
plate counter clockwise.)
Drill in screws through the top and bottom holes for secure mount.
Repeat this process for all other brackets evenly spacing them between
the two installed brackets.
NOTE: The top of bracket will rise 1" above the rail.
3. Reassemble the bracket onto the back plate. Screw bracket clockwise
onto back plate. Turn until tight. Make sure bracket is facing down
(loosen bracket set screw to adjust and tighten once complete).
4. Make sure rail holding set is attached to the bracket loosely
(you should receive it this way).
Attach the rail to the brackets making sure holding rail set
slips into top channel.
Lock the rail holding set into the top channel using
included Allen key.

Installing A Track System Over 104" Wide:

Note: Tracks greater than 104" will come as two pieces
1. Insert the Track Splice into the top channel of one of the tracks.
2. Tighten 2 set screws securely with included Allen Key.
3. Once both tracks have been attached to mounting brackets, butt the
two tracks up against one another and ensure they line up seamlessly.
• Make sure the "arm(s)" of the master carrier(s) are facing into the room.
4. Tighten the other 2 set screws on the Track Splice.
FOR ASSISTANCE, PLEASE CONTACT US VIA EMAIL AT CUSTOMWINDOWS@RESTORATIONHARDWARE.COM OR BY CALLING 1-888-669-2809.

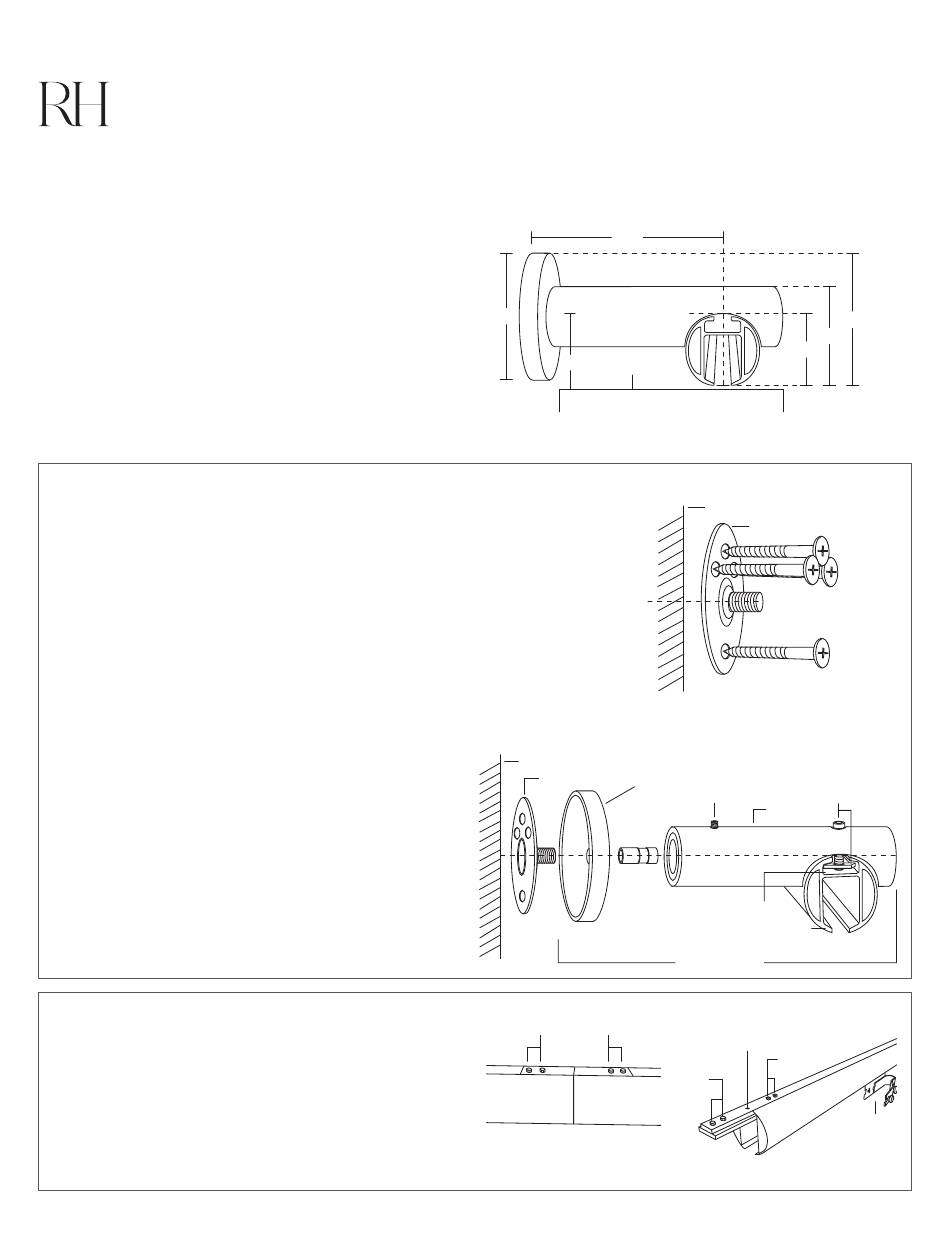

31/8"
