RH KING Instructions

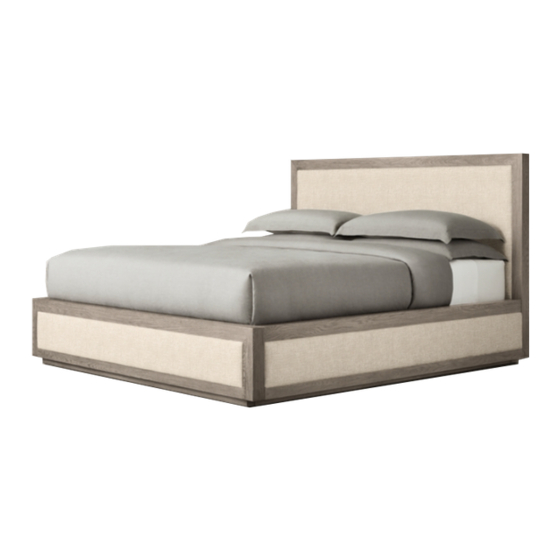

KEMPTON UPHOLSTERED PLATFORM KING AND CAL KING BED INSTRUCTIONS
PARTS INCLUDED
A
[1] HEADBOARD
B
[2] SIDE RAILS
C
[1] FOOTBOARD
D
[3] BED SLATS
E
[2] SUPPORT SLATS
F
[4]
SUPPORT LEGS
G
[2]
PLATFORM PANELS
H
[4] WOOD BRACKETS
ASSEMBLY INSTRUCTIONS

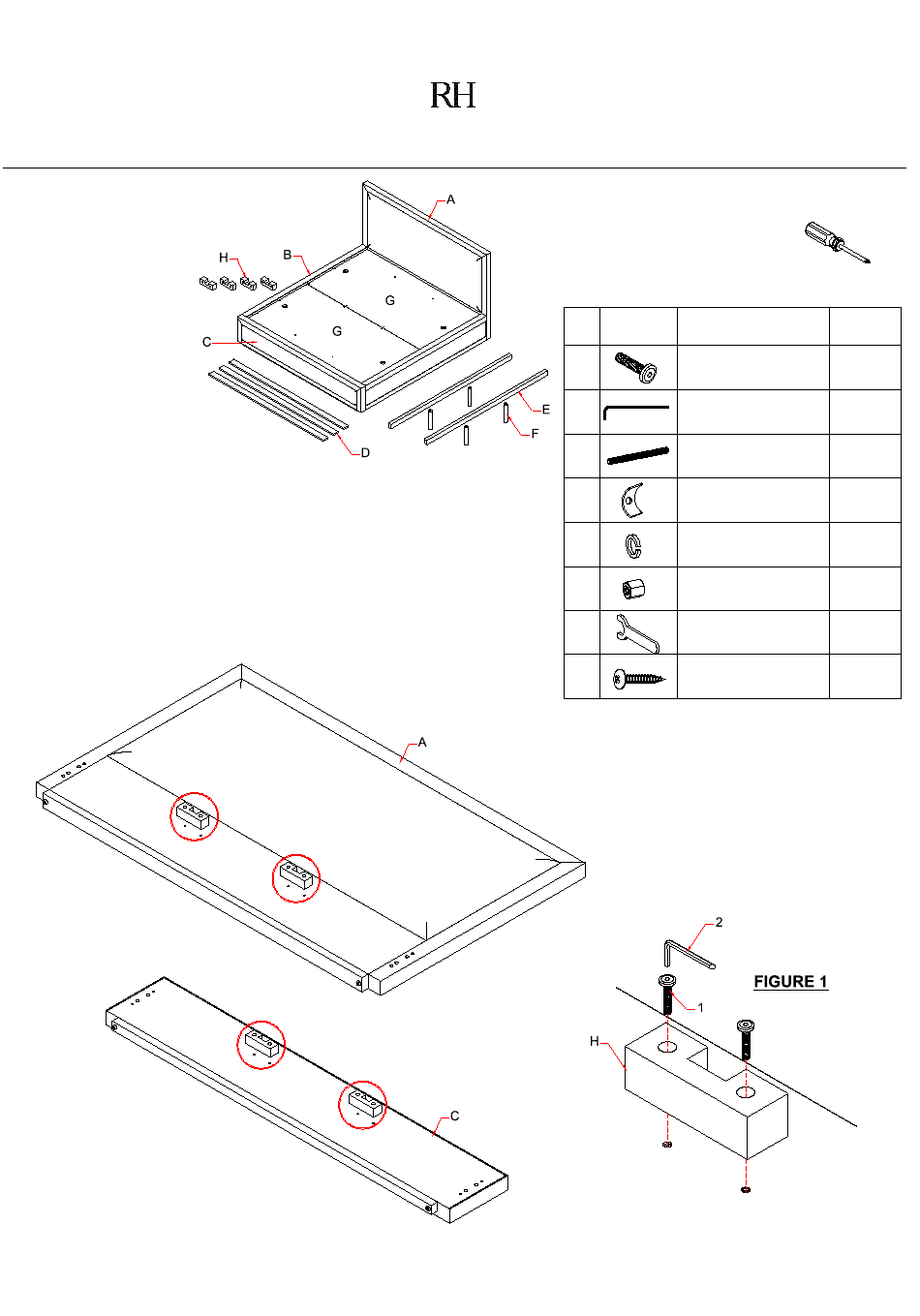

1. Gently lay the headboard(A) and footboard (C) on a flat and non-
abrasive surface.
2. Attach the wood brackets (H) to the headboard and footboard. Align
the wood brackets to the fixed nuts on the headboard and footboard.
Insert Allen bolts(1) through the holes on the wood brackets into the
fixed nuts on the headboard and footboard. DO NOT OVER TIGHTEN.
Refer to FIGURE 1.
10/1/18
TOOLS NEEDED
Phillips Screwdriver (Not provided)
HARDWARE INCLUDED
NO. ITEM DESCRIPTION
Allen Bolt
1
M6 x 40mm
2 Allen Wrench
3
Threaded Rod
4
Curved Washer
5 Lock Washer
6 Hex Nut
7 Wrench
Round Head Screw
8
M4 x 25mm
QTY.
8 pcs.
1 pc.
8 pcs.
8 pcs.
8 pcs.
8 pcs.
1 pc.
20 pcs.
Page 1 of 3
