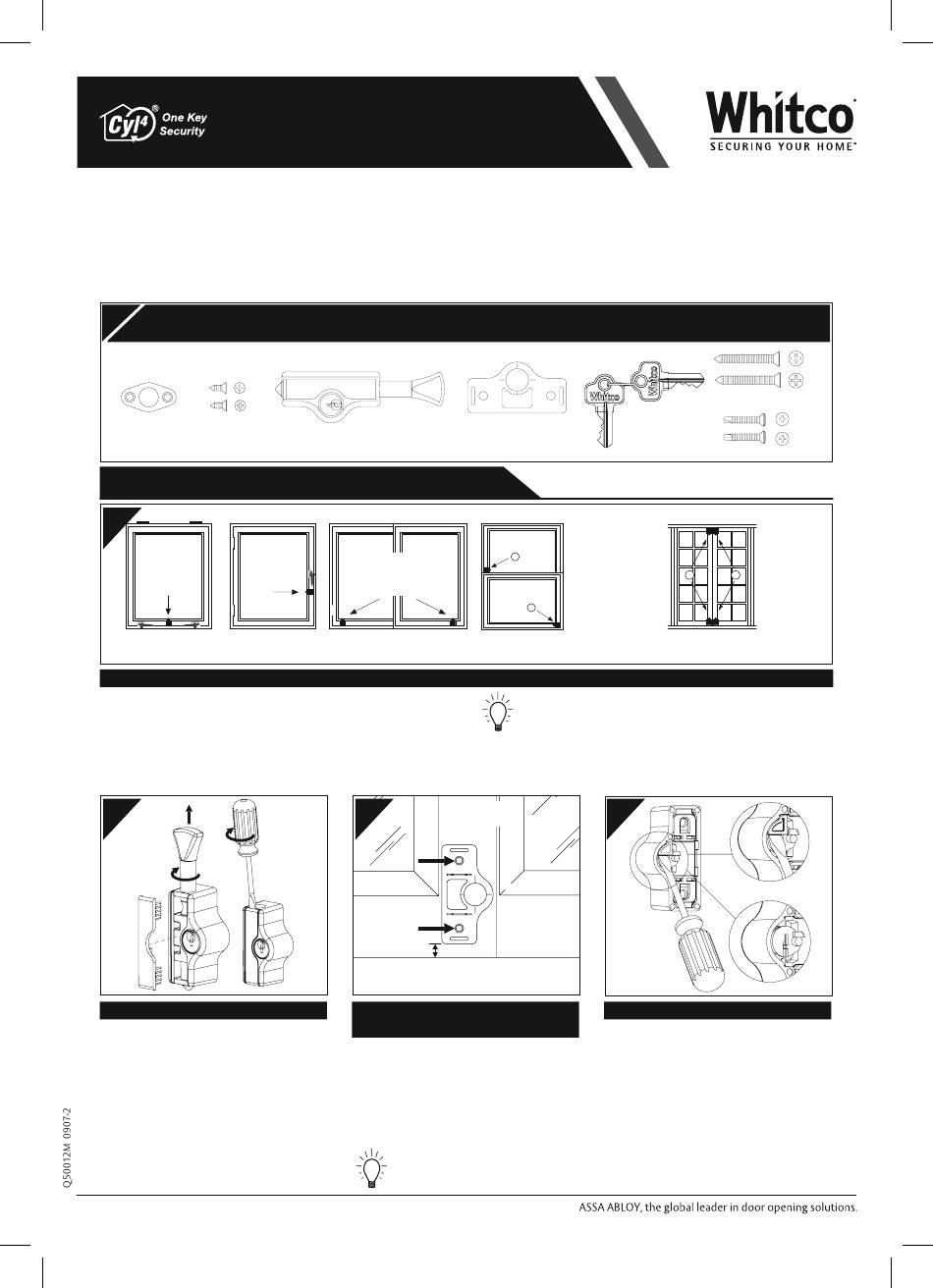

Assa Abloy Whitco Cyl4 Window Bolt Manual

Whitco Window Bolt: For use with most aluminium and timber windows and narrow stile french doors.
Operation: Key lockable bolt provides push to bolt and key to deadlock operation. Note: Cylinder can be located
on either side of bolt for convenient operation.
Application: Provides safe bolting or deadlocking of most window types and narrow stile french doors.
®
CYL4 : Please see your local hardware retailer or locksmith prior to installation if you are having this product
keyed to other locks in your home.
Components
Ferrule Ferrule Screws
Fixing Instructions
1
Fit lock
Fit lock at
in middle
bottom of
of window
window
Awning Casement
Windows Windows
Determine fi xing location
Select fi xing position, refer to diagrams above. Hold assembled
lock in desired mounting position and check for:
• Orientation of cylinder (bolt can be inserted from either end)
• Use packer when bolt doesn't engage frame
• When using a 5 pin key (refer step 4), use either the 4mm packer
or drill a 16mm clearance hole of 5mm depth to accommodate
point of the key
2
Remove bolt and screw cover
With unit unlocked remove bolt with
twist and pull action. Remove cover by
twisting a fl at head screwdriver in the
end slots.
Window Bolt
Stylish high security window lock
Lock Body
Fit lock
at end of
either window
Sliding
Windows
3
10mm
10mm
Mark fi xing screw locations through
packer
Check clearance of screws with glass line
and ensure bolt will not interfere with
frame in the unlocked position (Leave at
least 10mm clearance between lock body
and frame). Drill two 4mm pilot
holes to suit fi xing screws where marked.
Drilling Holes Accurately - We
recommend centre punching holes
prior to drilling.
Packer Keys
Option 1
With both windows
sliding, fi t to top
1
of lower sash locking
into upper sash
Option 2
With fi xed top
2
window, fi t to lower
sliding sash
Double Hung
Windows
Extra Clearance - For extra clearance and strength it may be
necessary to use the packer for optimal bolt engagement.
Note: we recommend using a packer when fi tting lock to
casement or awning windows.
4
Remove key stop for 5 pin key
Note: Optional - this step is not required if
using the key supplied in the pack.
When using a 5 pin key (keyed alike with
door locks), snap off triangular cylinder
stop, on the back of product using a
fl at screwdriver as shown and mount
lock using 4mm packer to provide rear
clearance for longer key.
Timber Screws
Aluminium Screws
Option 1
Fit bolt to top
and bottom
of last closing
2
1
door
Option 2
Fit bolt to top
and bottom of
both doors
French Doors
Before
Before
After
After
