Ameriwood HOME 6410340EBL Assembly Instructions Manual
  1. Manuals
  2. Brands
  3. Ameriwood HOME Manuals
  4. Indoor Furnishing
  5. 6410340EBL
  6. Assembly instructions manual

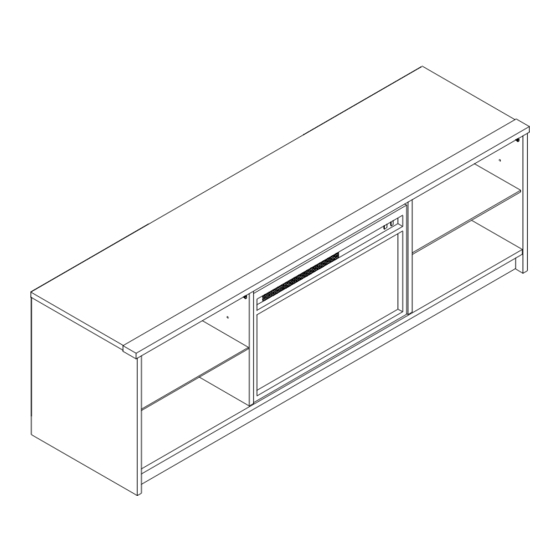

Ameriwood HOME 6410340EBL Assembly Instructions Manual

Fireplace tv stand
Hide thumbs

Advertisement

Quick Links

Download this manual
6410340EBL
Fireplace TV Stand
Date of Purchase ___ / ___ / ___
Lot Number:
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Do Not Return This Product!
Contact our customer service team for help first.
Call: 1-800-489-3351 (toll free)
Monday-Friday 9am - 5pm CST
Visit: www.ameriwoodhome.com
WARNING
This piece of furniture can overturn and cause serious
injuries & or death.
Anchor the furniture to a stud in the wall (if this is required).
Do not allow children to climb on furniture
Keep heavier items on lower shelves.
Easy
Assembly Difficulty Meter
Follow Ameriwood Home
You
Tube
B346410340EBL0
Tough

Advertisement

loading
Need help?

Need help?

Do you have a question about the 6410340EBL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ameriwood HOME 6410340EBL

Summary of Contents for Ameriwood HOME 6410340EBL

  • Page 1 Tough Visit: www.ameriwoodhome.com Assembly Difficulty Meter WARNING Follow Ameriwood Home This piece of furniture can overturn and cause serious injuries & or death. Anchor the furniture to a stud in the wall (if this is required). Do not allow children to climb on furniture Tube Keep heavier items on lower shelves.

  • Page 2: Helpful Hints

    Contact Us! Do NOT return this product! Contact our friendly customer service team first for help. Assembly Tips Call us! 1-800-489-3351 Monday-Friday 9am - 5pm CST Tube Visit ameriwoodhome.com to view the limited warranty valid in the U.S. and Canada. Helpful Hints PEOPLE NEEDED FOR ASSEMBLY: 1-2 - Open your item in the area you plan to keep it to avoid excessive heavy lifting.

  • Page 3: Before You Start

    Before You Start Read through each step carefully and follow the proper order Separate and count all your parts and hardware Parts are labeled on the surface or edge of the part Give yourself enough room for the assembly process Have the following tools: Flat Head Screwdriver, #2 Phillips Head Screwdriver and Hammer Caution: If using a power drill or power screwdriver for screwing,...
  • Page 4 Before You Start Please Note: You may need to lightly tap the wood dowels into the holes during your assembly process. ameriwoodhome.com...

  • Page 5: Board Identification

    Board Identification Not actual size Right Partition Left Panel Left Partition Right Panel 36410340040 36410340010 36410340030 36410340020 Kick Bottom 36410340070 36410340060 36410340050 This piece is paperboard construction. It is not made from wood, but is required for the assembly of your unit. BACK PANEL Back Panel (2)
  • Page 6 Board Identification Not actual size This piece is paperboard BACK construction. It is not made PANEL from wood, but is required for the assembly of your unit. BACK PANEL ameriwoodhome.com...

  • Page 7: Part List

    Note that your unit may contain extra hardware Part List Actual Size (x16) (x16) (x4) (x3) #A22700 #A22710 #A11080 #A12120 cam lock #6 X 7/16" flat cam bolt #8 X 7/16" pan (x4) (x6) (x8) (x10) #A23030 #A21660 #A80250 #A22760 confirmat screw wood dowel shelf support...
  • Page 8 Part List (x2) #H13260 glass shelf #B64359 TV warning label ameriwoodhome.com...
  • Page 9 STEP 1 (x1) (x3) (x2) Proper cam orientation ameriwoodhome.com...
  • Page 10 STEP 2 (x1) (x2) (x3) Proper cam orientation ameriwoodhome.com...
  • Page 11 STEP 3 (x1) (x3) Proper cam orientation ameriwoodhome.com...
  • Page 12 STEP 4 (x1) (x3) Proper cam orientation ameriwoodhome.com...
  • Page 13 STEP 5 (x8) ameriwoodhome.com...
  • Page 14 STEP 6 (x4) ameriwoodhome.com...
  • Page 15 STEP 7 (x2) (x4) Proper cam orientation Proper cam orientation ameriwoodhome.com...
  • Page 16 STEP 8 (x10) Be sure quickloc (8) is positioned as shown before inserting into hole. Tap with a hammer to fully insert. ameriwoodhome.com...
  • Page 17 STEP 9 Turn clockwise to lock both parts together raw edge ameriwoodhome.com...
  • Page 18 STEP 10 (x4) ameriwoodhome.com...
  • Page 19 STEP 11 UNLOCK LOCK ameriwoodhome.com...
  • Page 20 STEP 12 UNLOCK LOCK ameriwoodhome.com...
  • Page 21 STEP 13 IMPORTANT! THE BACK PANEL IS A STRUCTURAL PART OF THIS UNIT AND MUST BE INSTALLED PROPERLY. Place the unit onto its front. Attach the back panel as shown nailing straight into the raw edges. Assure that the unit is square. Distance from corner to corner must be equal.
  • Page 22 STEP 14 Carefully stand your unit upright. Insert the fireplace insert (10a) into the opening. You will want the fireplace insert to be positioned 1/8" inward from the front edge of the partitions. ameriwoodhome.com...
  • Page 23 STEP 15 From the back of the unit, attach the three brackets to the back of the fireplace insert. Using screws (3), attach the brackets to the bottom and sides. There will be a pilot hole for attachment. (x3) ameriwoodhome.com...
  • Page 24 STEP 16 Note: The light bar (10b) offers the option of fastening with peel and stick tape. (x4) (x2) View is angled to show the locations of the light bars (10b). Use cut out holes at the top of left & right partitions (C & D) for light bar (10b) wire management.
  • Page 25 STEP 17 (x8) (x2) ameriwoodhome.com...

  • Page 26: Maximum Loads

    Maximum Loads This unit has been designed to support the maximum loads shown. Exceeding these load limits could cause sagging, instability, product collapse, and/or serious injury. Apply TV Warning label to your unit for future reference. Notice: Once you apple this label to your unit, you cannot remove it. Maximum TV (flat screen) 65"...
  • Page 27 Visit your local retailer's website, rate your purchased product and leave us some feedback! We would like to extend a big "Thank You" to all of our customers for taking the time to assemble this Ameriwood Home product, and to give us your valuable feedback. ameriwoodhome.com...
