AutoLoc SUICIDE DOOR User Manual And Installation Manual

TECH SUPPORT: 503.693.1918
USER GUIDE AND INSTALLATION MANUAL
SUICIDE DOOR
SAFETY LOCK System
DL1000
- manual operation
DL2500
- automatic operation
DL2550
- deluxe automatic operation

Optional Accessories

Switch
Use this high quality
illuminated switch to
operate your suicide door
safety system.
Part Number: SW1
©2003 The Hoffman Group L.L.C. All rights reserved.
The above instructions are for reference only. THG LLC is not responsible for any inaccuracies in the above instructions. THG LLC is also not responsible for any property damage or personal injuries resulting from the above
instructions. Installation by qualified automotive professionals is highly recommended.
WWW.AUTOLOC.COM
Ignition Control Module
Add ignition controlled locking to your
suicide safety locks. The IS1000 will
unlock your doors when the ignition is
switched to the "OFF" position and
automatically lock the doors when the
ignition is in the "ON" position.
Part Number: IS1000
DL 2500 - 1 of 2 Revised 5/21/03 t

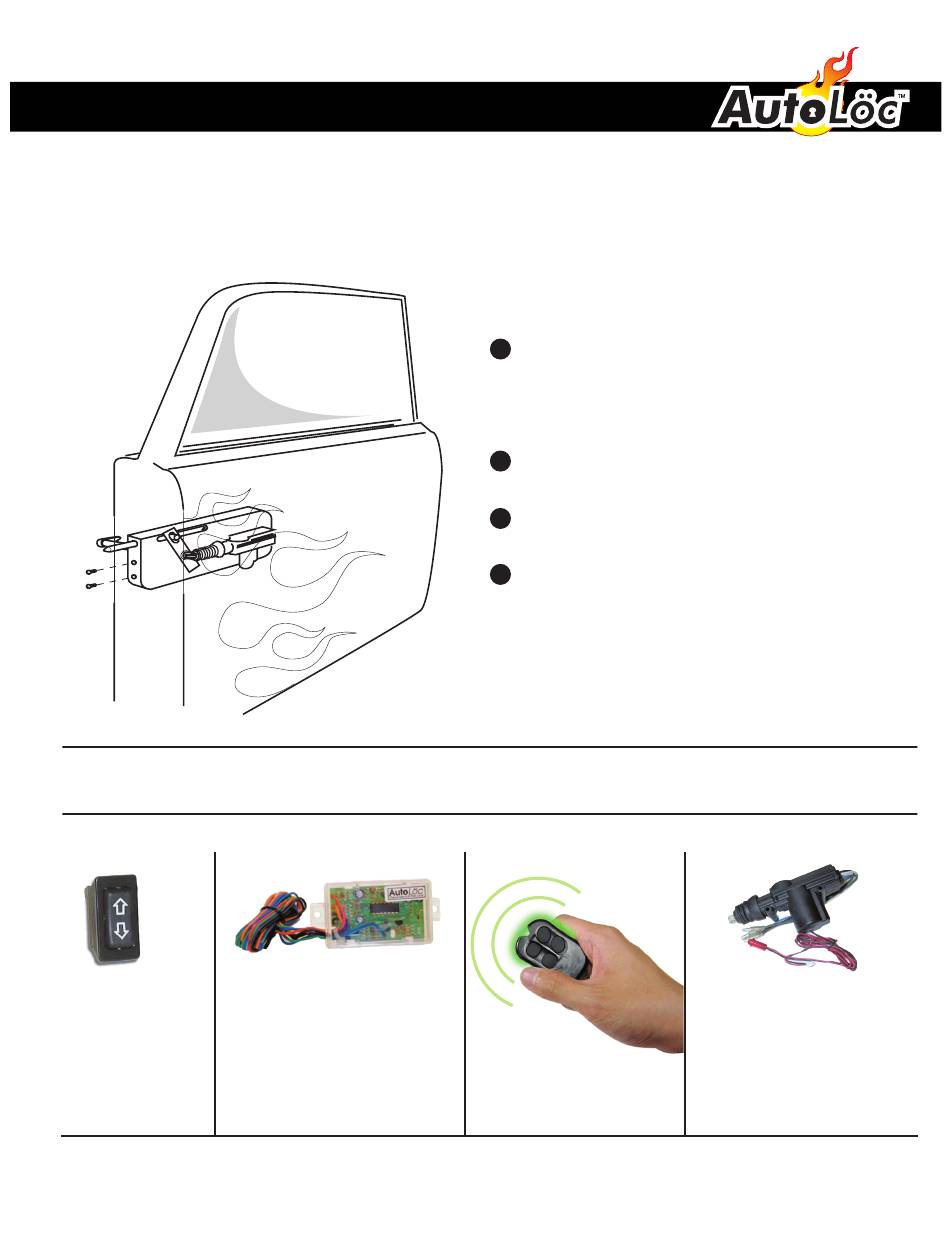

Installation

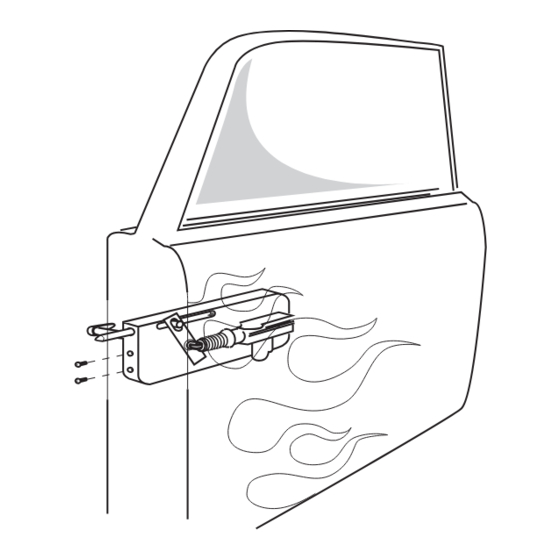

Mount the suicide door safety unit on the door with the
1
supplied hardware as shown in diagram to the left. You
may need to drill mounting holes on your door. You will
also need to drill holes for the sliding locking pin in your
door and door jamb.
Wire up the actuator. Please refer to wiring diagram. See
2
back side.
Repeat the above steps for the other door to complete
3
installation.
See optional accessories listed below for ways to
4
enhance your suicide door safety lock system.
Remote Kit
Several to choose from.
Please call for details.
Activation Indicator
Add a bright activation indicator to
your suicide door safety lock system.
Bright LED lets you know whether
your system is actived. Easy hook up.
Great functionality.
Part Number: DLIN
