AutoLoc AUTDL1000 User Manual And Installation Manual

TECH SUPPORT: 503.693.1918

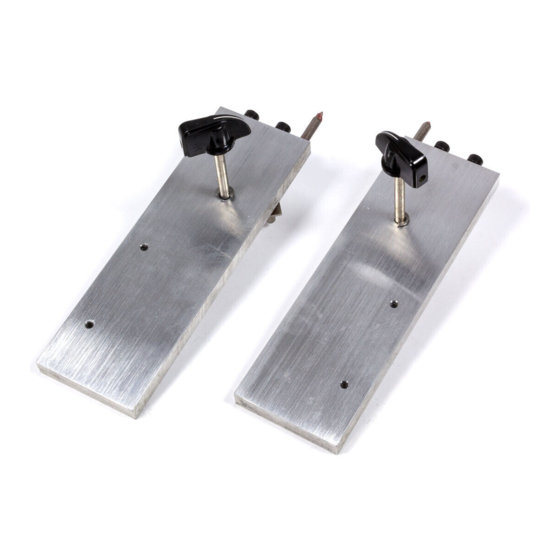

SUICIDE DOOR
SAFETY LOCK System
AUTDL1000
- manual operation
AUTDL2500
- automatic operation
AUTDL2550
- deluxe automatic operation
Optional Accessories
3 Position Rocker Switch
Use this high quality
illuminated switch to
operate your suicide door
safety system.
Part Number: AUTSW1
©2012 The Hoffman Group L.L.C. All rights reserved.
The above instructions are for reference only. THG LLC is not responsible for any inaccuracies in the above instructions. THG LLC is also not responsible for any property damage or personal injuries resulting from the above
instructions. Installation by qualified automotive professionals is highly recommended.
WWW.AUTOLOC.COM
Ignition Control Module
Add ignition controlled locking to your
suicide safety locks. The IS1000 will
unlock your doors when the ignition is
switched to the "OFF" position and
automatically lock the doors when the
ignition is in the "ON" position.
Part Number: AUTIS1000
AUTDL1000, AUTDL2500, AUTDL2550 - 1 of 2
Installation
Mount the suicide door safety unit on the door with
1
hardware as shown in diagram to the left (hardware is
not supplied). You may need to drill mounting holes on
your door. You will also need to drill holes for the sliding
locking pin in your door and door jamb.
Wire up the actuator. Please refer to wiring diagram. See
2
back side.
Repeat the above steps for the other door to complete
3
installation.
See optional accessories listed below for ways to
4
enhance your suicide door safety lock system.
NOTE: Grease the mechanical pins prior to use.
Remote Kit
Several to choose from.
Please call for details.
Revised 01/27/12
Adjustable Cable Clamp
Autolöc's™ super heavy-duty
adjustable cable clamps offer a
"clinching" ball bearing that snugs up
to the cable resulting in a solid clean
grip without fraying or damaging the
cable.
Part Number: AUTADJCBL
