USER GUIDE AND INSTALLATION MANUAL
SB3PRxx 3-POINT RETRACTABLE LAP BELT
IMPORTANT:
When available, be sure to use the vehicle manufacturer's provisions to attach belts. When you
use the manufacturer's threaded floor fittings, it is IMPORTANT that all full threads be engaged
to obtain the ultimate strength of the anchorage. Reuse factory mounting bolts or use 7/16th"
grade 5 or higher bolts.
CAUTION:
Do not attach this belt directly to the seat. Death or serious injury could occur in an accident if
the seat is not designed to withstand the additional load. FLOOR MOUNT ONLY!

Installation Instructions:

1. Mount the short side of the belt INBOARD, toward the center of the vehicle.
2. Avoid rough or sharp edges when choosing a belt path.
WHERE NO FACTORY FITTINGS ARE AVAILABLE:
1. If the seat is adjustable, move to the rearmost position.
2. Mark the floor to mount down and behind the seat to assure that the lap belt is pulling down-
ward and rearward at approximately a 70 degree angle. (Figure 1)
3. Space the attachment points 15" to 25" apart so that the lap belt forms a "U" shaped loop
when in use. (Figure 2) Never attach both ends of the same lap belt to the same anchorage or
attachment point.
4. Carefully drill 1/2" holes to avoid damaging exhaust system, brake or fuel lines. Always use
the reinforcement plates (sold separately- part number SBHP, SKU# 12186) underneath the
floor. (Figure 3) Examine and reinforce any weakened area of the floor pan.

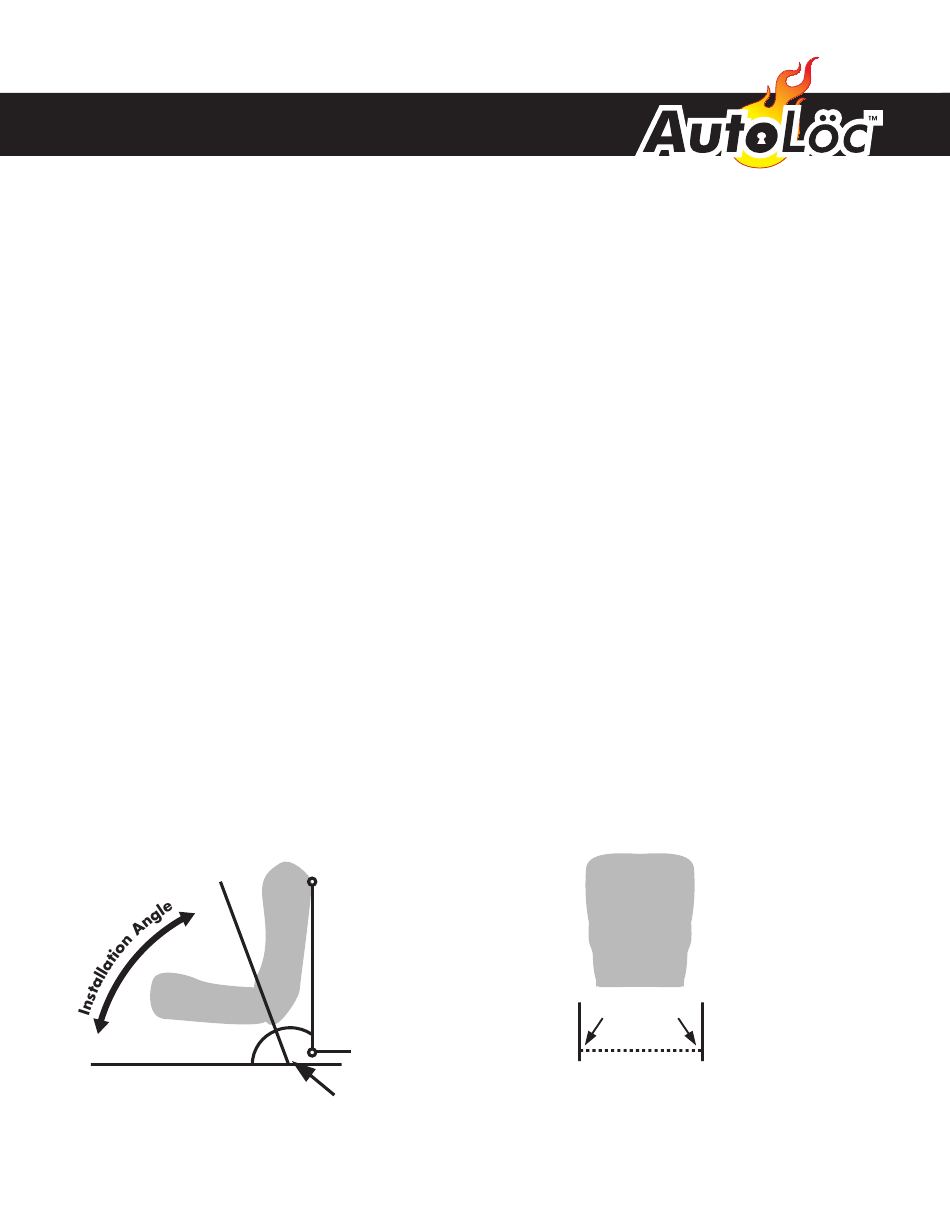

Figure 1.
SEAT
70°
Figure 2.
90°
Retractor needs to
point at 90°
Anchor Point
BACK
OF SEAT
Anchor points:
Minimum of 15" apart
Maximum of 25" apart
Anchor Points
