OPER TION & M INTEN NCE M NU L

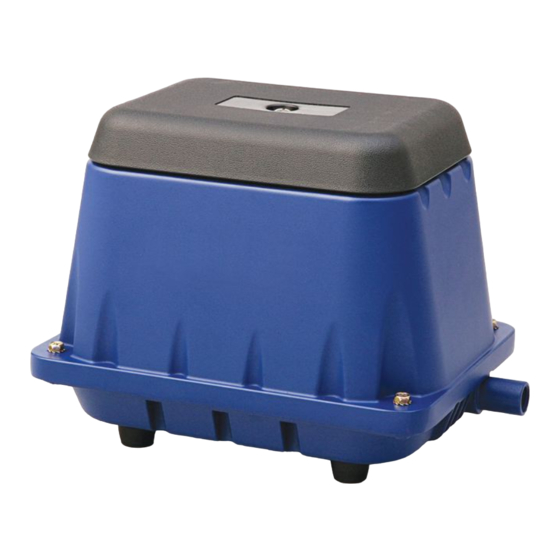

DDL15
Please follow all recommended maintenance, operational and safety
Life
Product Use Criteria
www.gastmfg.com
OILLESS COMPRESSORS
DBM40-DBM80
Thank you for purchasing this Gast product.
It is manufactured to the highest standards using quality materials.
instructions and you will receive years of trouble-free service.
PLEASE READ THIS MANUAL COMPLETELY
BEFORE INSTALLING AND USING THIS MOTOR.
SAVE THIS MANUAL FOR FUTURE REFERENCE
AND KEEP IN THE VICINITY OF THE MOTOR.
Depends upon speed, operating pressure and motor maintenance
• Pump only clean, dry air.
• Operate at 40ºF - 104ºF (4.4ºC - 40ºC)
• Protect unit from dirt and moisture.
• Do not pump flammable or explosive gases or use in an atmosphere that contains
such gases.
• Corrosive gases and particulate material will damage unit. Water vapor, oil-based
contaminants or other liquids must be filtered out.
• Oil-less compressors require NO lubrication
• Consult your Gast Distributor/Representative before using at high altitudes.
Unit of
Corporation
ISO 9001 &14001 CERTIFIED
Registered Trademark/ Trademark of Gast Manufacturing Inc., Copyright 2002 Gast Manufacturing Inc. ll Rights Reserved.
P RT NO. 70-1570 F1-210 (REV. F)
DBMX100
