OIL-LESS COMPRESSORS

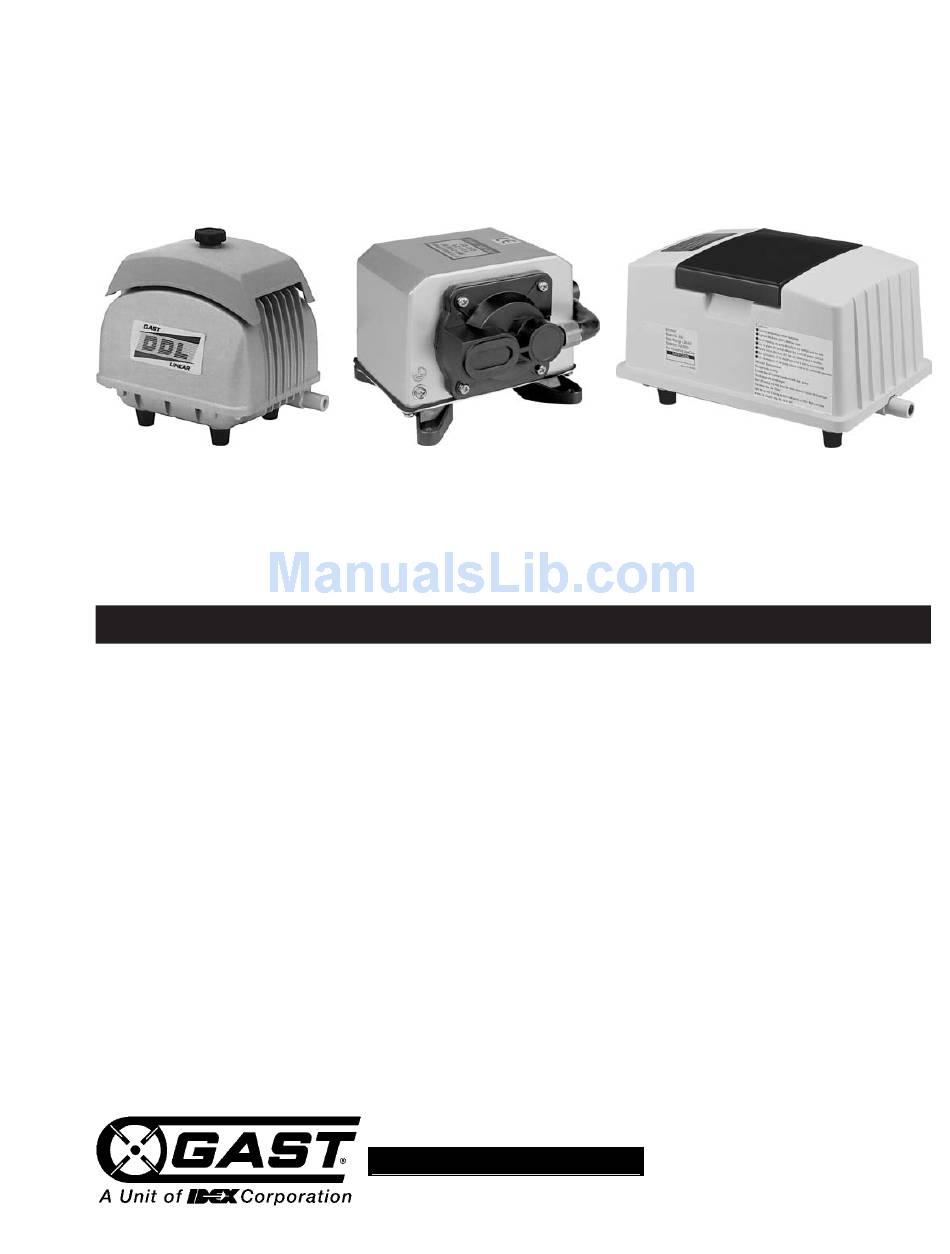

Model DDL30 Shown
Thank you for purchasing this Gast product. It is manufactured to the highest standards
using quality materials. Please follow all recommended maintenance, operational
and safety instructions and you will receive years of trouble free service.
IMPORTANT: PLEASE READ THIS MANUAL AND SAVE FOR FUTURE REFERENCE.
Product Use Criteria:
• Pump only clean, dry air.
• Operate at 40ºF - 104ºF (4.4ºC - 40ºC).
• Protect unit from dirt & moisture.
• Do not pump flammable or explosive gases or
use in an atmosphere that contains such gases.
• Corrosive gases and particulate material will
damage unit. Water vapor, oil-based contaminants
or other liquids must be filtered out.
• Oil-less compressors require NO lubrication
• Consult your Gast Distributor/Representative
before using at high altitudes.
