Part No. 6190761 (Rev A)
®
A BRAND OF

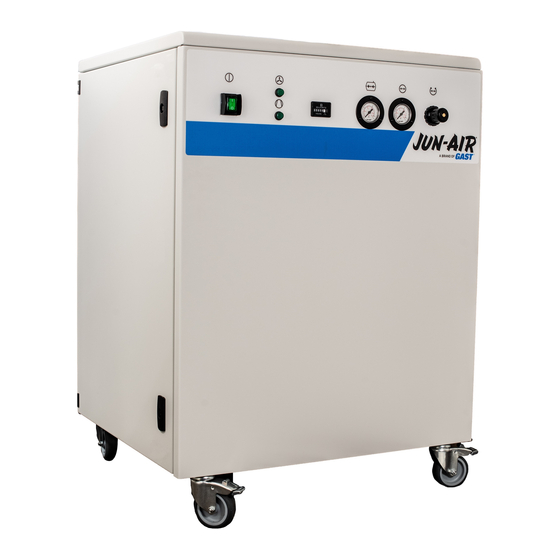

Compressor
120R-40M, 120R-40MQ3
2x120R-40MQ6, 2x120R-40M
®
.
-
.
A BRAND OF
WWW
JUN
AIR
COM
ISO 9001 CERTIFIED
® Registered Trademark/™ Trademark of JUN-AIR Inc. ©Copyright 2022 JUN-AIR Manufacturing Inc. All Rights Reserved.
Advertisement
Related Manuals for Gast JUN-AIR 120R-40M
Summary of Contents for Gast JUN-AIR 120R-40M

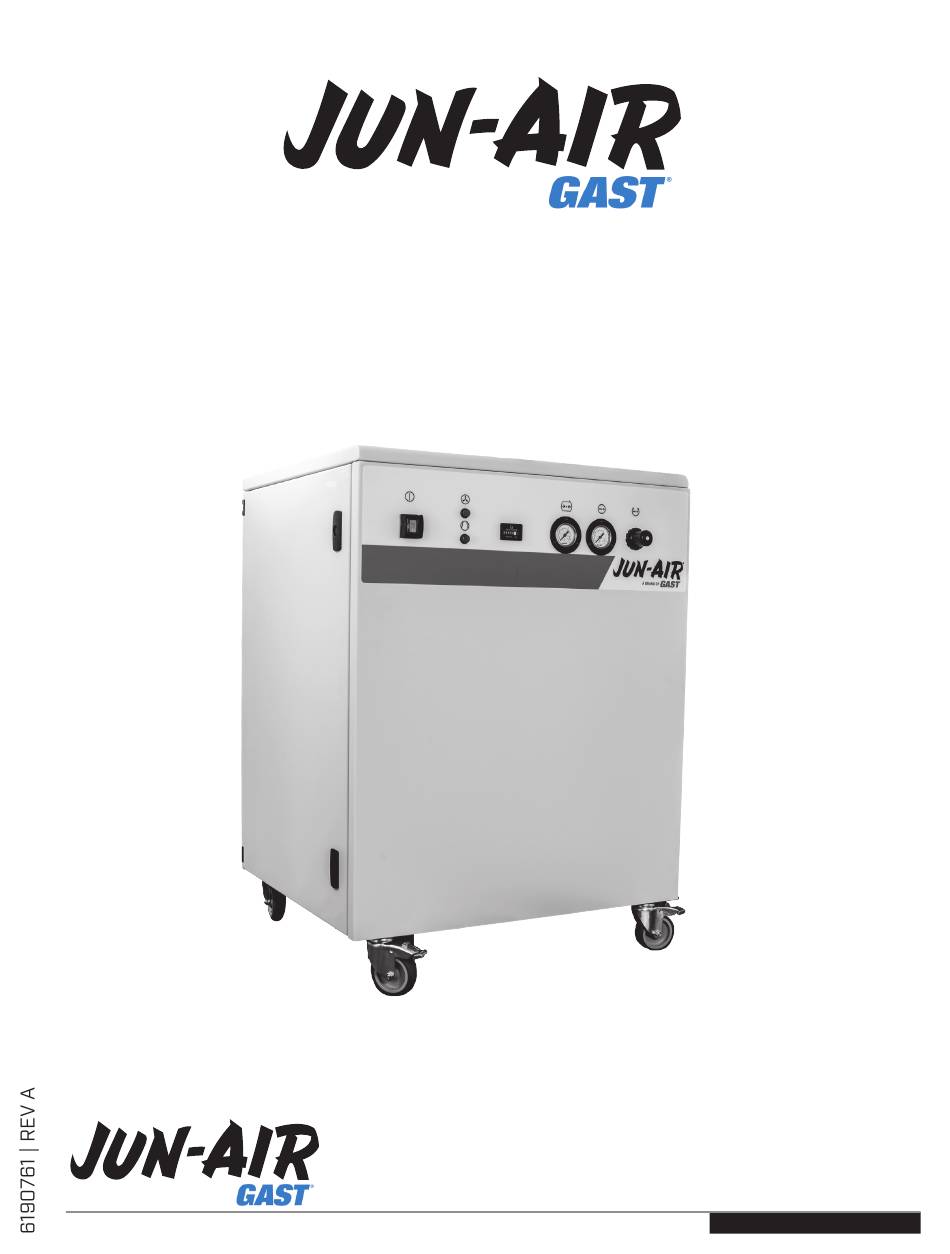

- Page 1 Part No. 6190761 (Rev A) ® A BRAND OF Compressor 120R-40M, 120R-40MQ3 2x120R-40MQ6, 2x120R-40M ® A BRAND OF ISO 9001 CERTIFIED ® Registered Trademark/™ Trademark of JUN-AIR Inc. ©Copyright 2022 JUN-AIR Manufacturing Inc. All Rights Reserved.
- Page 2 6190761 (Rev A) 120R Basic Compressor User Guide Table of Contents Operating Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Betriebsanweisung .
- Page 3 6190761 (Rev A) 120 Basic Compressor User Guide DK – Garanti Warranty Under forudsætning af at alle betjenings- og serviceforskrifter Provided that the instructions for operation, maintenance and overholdes, ydes der 2 års garanti for alle materiale- og service have been carried out, your JUN-AIR compressor is fabrikationsfejl .
- Page 4 6190761 (Rev A) 120R Basic Compressor User Guide SAFETY CAUTION: To prevent injury Important - read this first! • Compressed air can be dangerous; do not direct airflow at a person’s head or body . Please read the following information and operating instructions •...
- Page 5 6190761 (Rev A) 120 Basic Compressor User Guide Thermo Switch INSTALLATION Your JUN-AIR compressor is easy to operate . Observe the instructions and you will get many years service from your compressor . • Visually inspect unit for shipping damage, contact your supplier immediately if you think the unit may have been damaged .
- Page 6 6190761 (Rev A) 120R Basic Compressor User Guide OPERATION Start • If the compressor has been stored at an extremely low Start the compressor by pressing the green button . temperature, allow it to heat to room temperature before switching it on . The green lamp for compressor in operation is now •...
- Page 7 6190761 (Rev A) 120 Basic Compressor User Guide MAINTENANCE c) Check for leaks Check motor, hoses and equipment for leaks . Check the pumping To ensure a long lifetime of the compressor, it is important that time . inspection and maintenance is carried out regularly as described in the following .
- Page 8 6190761 (Rev A) 120R Basic Compressor User Guide Disassemble the non-return valve and remove the O-ring (1) part Test of pumping time no . 6243000 from the piston . The pumping time indicates the condition of the compressor . Clean the non-return valve . Check that there are no leaks in the system .
- Page 9 6190761 (Rev A) 120 Basic Compressor User Guide 3. The compressor runs but the pressure does not increase PRESSURE VESSEL Intake filter clogged . Replace . 24 bar Pressure tested at 4-25 litre Non-return valve is clocked . Clean or replace . 18.3 bar 40-50 litre Leaks in fittings, tubes or pneumatic equipment .
- Page 10 6190761 (Rev A) 120R Basic Compressor User Guide Technical Data & Specifications 120R-40M 120R-40MQ3 2x120R-40M 2x120R-40MQ6 Specifications liter Tank size U .S . gallon 10 .6 10 .6 10 .6 10 .6 Weight 720 x 650 x 860 720 x 780 x 860 Dimensions (LxWxH)**** 28 .0 x 25 .5 x 34 .0...
- Page 11 6190761 (Rev A) 120 Basic Compressor User Guide Translations English German French Spanish Dutch Dansk Voltage Spannung Voltage Voltaje Voltage Spænding Frequency Frequenz Fréquence Frequencia Frequentie Frekvens Power Motor HP Moteur CV Motor CV Motor HP Effekt Displacement Ansaugleistung Débit Aire aspirado Capaciteit Ydelse...
- Page 12 6190761 (Rev A) 120R Basic Compressor User Guide Performance Curves © 2022, JUN-AIR We reserve the right to make any alterations which may be due to any technical improvements Printed in the USA...
- Page 13 6190761 (Rev A) 120 Basic Compressor User Guide Electrical Drawing Model 120R-40M and 120R-40MQ3, 230 V/50/60 Hz © 2022, JUN-AIR We reserve the right to make any alterations which may be due to any technical improvements Printed in the USA...
- Page 14 6190761 (Rev A) 120R Basic Compressor User Guide Electrical Drawing Model 2x120R-40M, 2x120R-40MQ6, 230 V/50/60 Hz © 2022, JUN-AIR We reserve the right to make any alterations which may be due to any technical improvements Printed in the USA...
- Page 15 6190761 (Rev A) 120 Basic Compressor User Guide Parts & Accessories List 4799600 Auto drain 120V series 590 Compressor system 5074800 Pressure switch MDR 21/11 4-way UL 120R689- Compressor 5150000 Gauge Ø40 0-16 bar 1/8” built-in P102M- 5414500 Non return valve N800NX 5416100 Safety valve 12 bar / 177 psi...
- Page 16 6190761 (Rev A) 120R Basic Compressor User Guide Parts & Accessories List, continued 6984960 Mounting bracket complete A-D & BD 230V Snapline Compressor motor 6984961 Mounting bracket complete A-D & BD 120V Snapline 6984962 Mounting bracket complete A-M & B-M 230V Snapline 5240607 Capacitor, run complete 60uF f/OF300/OF1202 (60 cm) 6984963...
- Page 17 6190761 (Rev A) 120 Basic Compressor User Guide Spare Parts: Model 120R-40MQ3 6985922 7167201 4146200 7167215 4143500 4739340 4785600 6341750 7070901 7024002 4750700 7167102 6342200 6372600 6372600 6390000 6341750 6342250 120R689-T102-N800NX 4143502 7026001 6339900 6390200 6341750 4094100 6390000 5074800 4141620 4146203 6317100 6985928...
- Page 18 6190761 (Rev A) 120R Basic Compressor User Guide Spare Parts: Model 120R-40M 6314200 4750700 4143500 6341800 4146200 4739340 4146200 7167201 4740400 6358000 6985922 8081112 6372600 4785600 5074800 6295510 7070901 4143502 7167215 6341750 6390000 7024002 6342200 6984878 DETAIL 6342250 120R689-T102-N800NX 6984878 7026001 6339900 6390200...
- Page 19 6190761 (Rev A) 120 Basic Compressor User Guide Spare Parts: 2x120R-40M 6984563 COMPLETE 4141860 5414500 7083000 7167102 4146200 4146800 6221000 4799700 7022100 7025000 4750700 7076000 6342250 6341800 4141800 6390025 4740400 7167102 4739312 7020000 7024002 4785600 4740400 4146200 4147000 4146200 6372600 4071009 7167201 4141800...
- Page 20 6190761 (Rev A) 120R Basic Compressor User Guide Spare Parts: Model 2x120R-40MQ6 6984563 COMPLETE A-A 6457037 B-B 6457037 6342250 6355500 8008511 7024002 6243710 O-RING 4141620 7167201 6342200 6243710 O-RING 4146458 4094200 5612302 COMPLETE 120R689-T102-N800NX 5451000 7026001 6984974 COMPLETE 7052005 6390200 4146200 6342200 4146200...
- Page 21 6190761 (Rev A) 120 Basic Compressor User Guide Symbols - Abbildungen - Symboler The symbols found on the product and packing are explained below . Folgende Abbildungen befinden sich an Produkt und Verpackung . De symboler, der findes på produktet og på emballagen forklares i det følgende . English/GB Symbol Description...
- Page 22 Gast Manufacturing Gast Group Ltd. 2300 M139 Highway Unit 11, The I O Centre Benton Harbor, MI 49023 Nash Road Ph: 269-926-6171 Redditch, B98 7AS Fax: 269-927-0808 United Kingdom Phone +44 (0)1527-504040 Fax +44 (0)1527-525262 www.JUN-AIR.com ® A BRAND OF ISO 9001 CERTIFIED ®...
