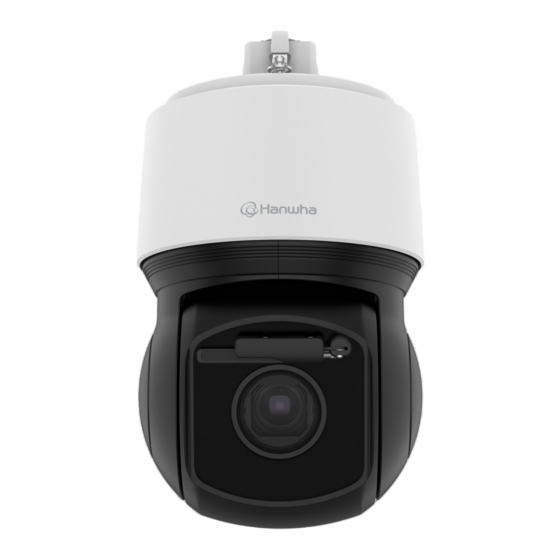

Hanwha Vision XNP-C9303RW User Manual

Hide thumbs Also See for XNP-C9303RW:
Table of Contents

Advertisement

Quick Links

Download this manual
NETWORK CAMERA
User Manual
XNP-C9303RW
XNP-C8303RW
XNP-C6403RW

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XNP-C9303RW and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hanwha Vision XNP-C9303RW

Summary of Contents for Hanwha Vision XNP-C9303RW

  • Page 1 NETWORK CAMERA User Manual XNP-C9303RW XNP-C8303RW XNP-C6403RW...
  • Page 2 Network Camera User Manual Copyright ©2023 Co., Ltd. All rights reserved. Hanwha Vision Trademark Each of trademarks herein is registered. The name of this product and other trademarks mentioned in this manual are the registered trademark of their respective company. Restriction Copyright of this document is reserved.
  • Page 3 overview IMPORTANT SAFETY INSTRUCTIONS 22. If your product works normal, the degree of preset precision is 0.1˚. In the case of reboot due to outage, firmware upgrade, etc., its tolerance might have to be adjusted after checking for any changes in Preset setup. 23.
  • Page 4 For below models only. 802.3bt shall be a UL Listed device with the output evaluated as a Limited Power Source XNP-C9303RW/XNP-C8303RW/XNP-C6403RW as defined in UL60950-1 or PS2 as defined in UL62368-1. Unit is intended for installation in a Network Environment 0 as defined in IEC TR 62102.

  • Page 5: Table Of Contents

    CONTENTS OVERVIEW Important Safety Instructions WEB VIEWER Connecting to the Camera Recommended PC Specifications Password setting Recommended Micro SD/SDHC/SDXC Login Memory Card Specifications Camera Web Viewer Setup NAS recommended specs What’s Included Network I/O box - separately sold product Optional Accessories for Installation At a Glance APPENDIX Troubleshooting...

  • Page 6: Recommended Pc Specifications

    overview RECOMMENDED PC SPECIFICATIONS NAS RECOMMENDED SPECS ~ CPU : Intel(R) Core(TM) i7 3.4 GHz or higher ~ Recommended capacity : 200GB or higher is recommended. ~ RAM : 8G or higher ~ For this camera, you are recommended to use a NAS with the following manufacturer’s specs. ~ Recommended browser: Chrome Recommended products : QNAP NAS, Synology NAS ~ Supported browsers: Chrome, Safari, Firefox, MS Edge(chromium based)

  • Page 7: What's Included

    WHAT’S INCLUDED NETWORK I/O BOX - SEPARATELY SOLD PRODUCT Please check if your camera and accessories are all included in the product package. Appearance Item Name Description Model Name (As for each sales country, accessories are not the same.) Appearance Item Name Quantity Description...
  • Page 8 overview AT A GLANCE Appearance Inside Item Description Item Description Main cover Protects the internal PTZ mechanism from the direct sunlight, rain or external impact. IR LED These infrared LED’s are controlled by the illumination sensor. Used for wiping off raindrops or snow dripping on the window. Lens Lens for the camera.
  • Page 9 Mounting surface Item Description Cable bushing A waterproof rubber cap, which allows a network cable to go through it. Hang this hook on the safety wire of the mount when installing this product to prevent it Safety wire hook from falling. A port that connects to the HPoE injector and network cable for power and network HPoE port connection.

  • Page 10: Installation & Connection

    installation & connection INSTALLATION 2. Pull up the Micro SD card cover and push the Micro SD card to the arrow direction as shown in the figure. This camera is waterproof and in compliance with the IP66 spec, but the jack connected to the external cable is not. You are recommended to install this product below the edge of eaves to prevent the cable from being externally exposed.
  • Page 11 Removing a Micro SD card Getting ready for network cable installation Gently press down on the exposed end of the Micro SD card as shown in the diagram to eject the Micro SD 1. Remove the cable bushing. card from the slot. Before removing the Micro SD card, in <Setup ( )>-<Event>-<Storage>, set the device to <Off>...
  • Page 12 installation & connection 4. For waterproof protection, pull down the cable below the cable bushing as shown in the figure below. 2. Connect the network cable to the HPoE port. 9~10 cm Installing using wall & pole mount 3. Plug the cable bushing of the network cable in the hole. Power on the HPoE injector only after installation is complete.
  • Page 13 4. Install the bushing clip. 6. Tightly fasten the 3 mounting screws on the inside of the Wall & Pole Mount. Let the arrow mark on the clip point in the direction of the safety wire hook, and click each side into place one at a time.
  • Page 14 installation & connection Installing using ceiling or parapet mount 3. Plug the cable bushing of the network cable in the hole. When plugging it in, press the whole bushing area evenly so that it is properly plugged in. 1. Hang the safety wire of the mount on the safety wire hook of the product. Safety wire Safety wire hook The length and width of the cable bushing are different.
  • Page 15 5. After aligning the installation direction guides of the hanging mount, push the main cover upward and turn ` Joined with official product mounts (ceiling/parapet) it counterclockwise until it is secured. Parapet Mount Ceiling Mount (SBP-156LMW) (SBP-156CMW) 6. Tightly fasten the 3 mounting screws on the top side of the mount. TR30 English _15...
  • Page 16 installation & connection ` Joined with mounts other than official product mounts If you use hanging mount, you can install the camera onto any mount other than the official product mount. Parapet Mount (SBP-300LMW) Hanging Mount Wall Mount (SBP-156HMW) (SBP-300WMW) Hanging Mount (SBP-156HMW) Ceiling Mount...
  • Page 17 Replacing the rubber of wiper blade 3. Remove the rubber part by pulling it back. If the rubber part of your wiper blade is worn and not cleaning the window properly, you can replace the rubber part. 1. Lift up the wiper. 4.

  • Page 18: Powering And Networking

    installation & connection POWERING AND NETWORKING SFP port Specification Support SFP Voltage 3.3 V Typical Connect the HPoE injector with the HPoE port of the camera. Support SFP Current 300 mA Max. Support SFP Cage Standard mini-SFP Cage(for 6.5 mm pitch SFP) Support SFP Port Type LC Type HPoE injector...

  • Page 19: Connecting Audio And Alarm I/O

    CONNECTING AUDIO AND ALARM I/O You can connect audio and alarm using a network I/O box separately sold. Microphone Network Speaker <SPM-4210> Sensor Alarm (Warning lamp) For more information on the network I/O box, see the manual for the network I/O box. You can set the network I/O box in Camera web viewer <Setup ( )>...

  • Page 20: Network Connection And Setup

    network connection and setup You can set up the network settings according to your network configurations. CONNECTING THE CAMERA DIRECTLY TO A DHCP BASED DSL/CABLE MODEM CONNECTING THE CAMERA DIRECTLY TO LOCAL AREA NETWORKING Connecting to the camera from a local PC in the LAN INTERNET 1.

  • Page 21: Using Device Manager

    If using a Broadband Router ~ IP Address : Enter an address falling in the IP range provided by the Broadband Router. Device manager program can be downloaded from <Support>-<Online Tool> menu at Hanwha Vision website ex) 192.168.1.2~254, 192.168.0.2~254, (https://www.HanwhaVision.com).

  • Page 22: Manually Registering Camera

    ~ Example of the Dynamic IP environment configure the IP. XNP-C9303RW - If a Broadband Router, with cameras connected, is assigned an IP address by the DHCP server 2. Click < + > at the main page of device manager.

  • Page 23: Port Range Forward (Port Mapping) Setup

    PORT RANGE FORWARD (PORT MAPPING) SETUP Setting up Port Range Forward for several network cameras ~ You can set a rule of Port Forwarding on the Broadband Router device through its configuration web page. If you have installed a Broadband Router with a camera connected, you must set the port range forwarding on the ~ A user can change each port using the camera setting screen.

  • Page 24: Connecting To The Camera From A Shared Local Pc

    network connection and setup CONNECTING TO THE CAMERA FROM A SHARED LOCAL PC 1. Run device manager. It will scan for connected cameras and display them as a list. 2. Double-click a camera to access. The Internet browser starts and connects to the camera. Access to the camera can also be gained by typing the camera’s IP address in the address bar of the Internet browser.

  • Page 25: Connecting To The Camera

    web viewer CONNECTING TO THE CAMERA Connecting via Bonjour 1. Run the client or operating system in support of the Bonjour protocol. Normally, you would 2. Click the camera name for search. In the Mac operating system, click the camera name searched from the Bonjour tab of Safari. 1.

  • Page 26: Password Setting

    web viewer PASSWORD SETTING CAMERA WEB VIEWER SETUP When you access the product for the first time, you must register the 1. Click the [Setup ( )] icon. login password. 2. The Settings window appears. 3. You can configure settings for the camera’s basic information, video, audio, network, event, analysis, and For a new password with 8 to 9 characters, you must use at least system over the network.

  • Page 27: Troubleshooting

    appendix TROUBLESHOOTING PROBLEM SOLUTION PROBLEM SOLUTION ~ On the authentication popup window prompted when initially accessing https, click "View ~ Verify the settings in the following sequence: <Motion detection> of <Analytics> is Authentication Certificate" and select the "Always trust when connecting to the designated set to <Enable>, but no notification A.
  • Page 28 Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. Hanwha Vision cares for the environment at all product manufacturing stages, and is taking measures to provide customers with more environmentally friendly products.
