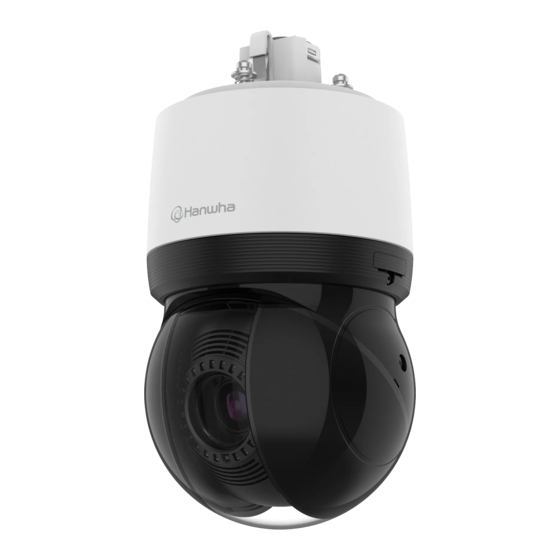

- Page 1 NETWORK CAMERA User Manual XNP-C9253R/XNP-C9253 XNP-C8253R/XNP-C8253 XNP-C6403R/XNP-C6403...
- Page 2 Network Camera User Manual Copyright ©2023 Co., Ltd. All rights reserved. Hanwha Vision Trademark Each of trademarks herein is registered. The name of this product and other trademarks mentioned in this manual are the registered trademark of their respective company. Restriction Copyright of this document is reserved.
- Page 3 Preset setup. 1. Read these instructions. 24. The operating temperature of the product is -40°C to +55°C (-40°F ~ +131°F). (XNP-C9253R/XNP-9253/ 2. Keep these instructions.
- Page 4 The wired LAN hub providing power over the Ethernet (PoE) in accordance with IEEE 802.3bt shall be a UL Listed device with the output evaluated as a Limited Power Source as defined in UL60950-1 or PS2 as defined in UL62368-1.(XNP-C9253R/XNP-C8253R/ XNP-C6403R) The wired LAN hub providing power over the Ethernet (PoE) in accordance with IEEE 802.3at shall be a UL Listed device with the output evaluated as a Limited Power Source as...
-
Page 5: Table Of Contents
CONTENTS OVERVIEW Important Safety Instructions WEB VIEWER Connecting to the Camera Recommended PC Specifications Password setting Recommended Micro SD/SDHC/SDXC Login Memory Card Specifications Camera Web Viewer Setup NAS recommended specs What’s Included Network I/O box - separately sold product Optional Accessories for Installation APPENDIX Troubleshooting At a Glance... -
Page 6: Recommended Pc Specifications
overview RECOMMENDED PC SPECIFICATIONS NAS RECOMMENDED SPECS ~ CPU : Intel(R) Core(TM) i7 3.4 GHz or higher ~ Recommended capacity : 200GB or higher is recommended. ~ RAM : 8G or higher ~ For this camera, you are recommended to use a NAS with the following manufacturer’s specs. ~ Recommended browser: Chrome Recommended products : QNAP NAS, Synology NAS ~ Supported browsers: Chrome, Safari, Firefox, MS Edge(chromium based) -
Page 7: What's Included
SPM-4210 alarm and audio I/O Main Body OPTIONAL ACCESSORIES FOR INSTALLATION You can purchase appropriate optional accessories available. Quick Guide (Optional) XNP-C9253R/XNP-C9253/ XNP-C8253R/XNP-C8253/ Used to connect the Cap Installer XNP-C6403R/XNP-C6403 network cable Used as a means of preventing cable bushing... - Page 8 AT A GLANCE Inside(XNP-C9253R/XNP-C8253R/XNP-C6403R) Appearance Item Description Main cover Protects the internal PTZ mechanism from the direct sunlight, rain or external impact. Dome cover Shield cover for the lens and unit protection. Item Description The Micro SD card slot and reset button are located inside and can be opened using Torx Micro SD Card cover drivers, etc.
- Page 9 A port that connects to the HPoE injector and network cable for power and network Lens Lens for the camera. connection.(XNP-C9253R/XNP-C8253R/XNP-C6403R) Network port A port that connects to the PoE+ router and network cable for power and network At a certain temperature below the threshold, it automatically operates, or you can turn it on Heater connection.(XNP-C9253/XNP-C8253/XNP-C6403)
-
Page 10: Installation & Connection
installation & connection INSTALLATION 2. Push in a flathead screwdriver under the slot to pull out the Micro SD card slot. This camera is waterproof and in compliance with the IP66 spec, but the jack connected to the external cable is not. You are recommended to install this product below the edge of eaves to prevent the cable from being externally exposed. - Page 11 Removing a Micro SD card Do not forcefully insert it in the reverse direction. It might damage your Micro SD card and your product. Gently press down on the exposed end of the Micro SD card as shown in the diagram to eject the Micro SD card from the slot.
- Page 12 overview Getting ready for network cable installation 4. For waterproof protection, pull down the cable below the cable bushing as shown in the figure below. 1. Remove the cable bushing. 9~10 cm Installing using wall & pole mount Connect the power only after installation is complete. Supplying power while the installation is in progress may cause fire or damage the product.
- Page 13 2. Connect the network cable to the network port. 4. Install the bushing clip. Let the arrow mark on the clip point in the direction of the safety wire hook, and click each side into place one at a time. 3.
- Page 14 installation & connection 6. Tightly fasten the 3 mounting screws on the inside of the Wall & Pole Mount. Installing using ceiling or parapet mount 1. Hang the safety wire of the mount on the safety wire hook of the product. TR30 Safety wire Safety wire hook...
- Page 15 3. Plug the cable bushing of the network cable in the hole. 5. After aligning the installation direction guides of the hanging mount, push the main cover upward and turn When plugging it in, press the whole bushing area evenly so that it is properly plugged in. it counterclockwise until it is secured.
- Page 16 installation & connection ` Joined with official product mounts (ceiling/parapet) Ceiling Mount (SBP-300CMW) Hanging Mount (SBP-156HMW) Parapet Mount Ceiling Mount (SBP-156LMW) (SBP-156CMW) ` Joined with mounts other than official product mounts Parapet Mount If you use hanging mount, you can install the camera onto any mount other than the official product mount. (SBP-300LMW) Hanging Mount (SBP-156HMW)
-
Page 17: Powering And Networking
If the product is turned on after being exposed to -20°C or below environment for some time, reset the time. Use the provided HPoE injector when connecting power and network. (XNP-C9253R/XNP-C8253R/XNP-C6403R) The connection/disconnection of the SFP module must be made only when the power is off. -
Page 18: Connecting Audio And Alarm I/O
installation & connection CONNECTING AUDIO AND ALARM I/O You can connect audio and alarm using a network I/O box separately sold. Microphone Network Speaker <SPM-4210> Sensor Alarm (Warning lamp) For more information on the network I/O box, see the manual for the network I/O box. )>... -
Page 19: Network Connection And Setup
network connection and setup CONNECTING THE CAMERA DIRECTLY TO A DHCP BASED DSL/CABLE You can set up the network settings according to your network configurations. MODEM CONNECTING THE CAMERA DIRECTLY TO LOCAL AREA NETWORKING Connecting to the camera from a local PC in the LAN 1. -
Page 20: Using Device Manager
If using a Broadband Router ~ IP Address : Enter an address falling in the IP range provided by the Broadband Router. Device manager program can be downloaded from <Support>-<Online Tool> menu at Hanwha Vision website ex) 192.168.1.2~254, 192.168.0.2~254, (https://www.HanwhaVision.com). -
Page 21: Manually Registering Camera
~ Example of the Dynamic IP environment configure the IP. XNP-C9253R - If a Broadband Router, with cameras connected, is assigned an IP address by the DHCP server 2. Click < + > at the main page of device manager. -
Page 22: Port Range Forward (Port Mapping) Setup
network connection and setup PORT RANGE FORWARD (PORT MAPPING) SETUP Setting up Port Range Forward for several network cameras ~ You can set a rule of Port Forwarding on the Broadband Router device through its configuration web page. If you have installed a Broadband Router with a camera connected, you must set the port range forwarding on the ~ A user can change each port using the camera setting screen. -
Page 23: Connecting To The Camera From A Shared Local Pc
CONNECTING TO THE CAMERA FROM A SHARED LOCAL PC 1. Run device manager. It will scan for connected cameras and display them as a list. 2. Double-click a camera to access. The Internet browser starts and connects to the camera. Access to the camera can also be gained by typing the camera’s IP address in the address bar of the Internet browser. -
Page 24: Connecting To The Camera
web viewer CONNECTING TO THE CAMERA Connecting via Bonjour 1. Run the client or operating system in support of the Bonjour protocol. Normally, you would 2. Click the camera name for search. In the Mac operating system, click the camera name searched from the Bonjour tab of Safari. 1. -
Page 25: Password Setting
PASSWORD SETTING CAMERA WEB VIEWER SETUP When you access the product for the first time, you must register the 1. Click the [Setup ( )] icon. login password. 2. The Settings window appears. 3. You can configure settings for the camera’s basic information, video, audio, network, event, analysis, and For a new password with 8 to 9 characters, you must use at least system over the network. -
Page 26: Troubleshooting
appendix appendix TROUBLESHOOTING PROBLEM SOLUTION PROBLEM SOLUTION ~ On the authentication popup window prompted when initially accessing https, click "View ~ Verify the settings in the following sequence: <Motion detection> of <Analytics> is Authentication Certificate" and select the "Always trust when connecting to the designated set to <Enable>, but no notification A. - Page 27 Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. Hanwha Vision cares for the environment at all product manufacturing stages, and is taking measures to provide customers with more environmentally friendly products.
