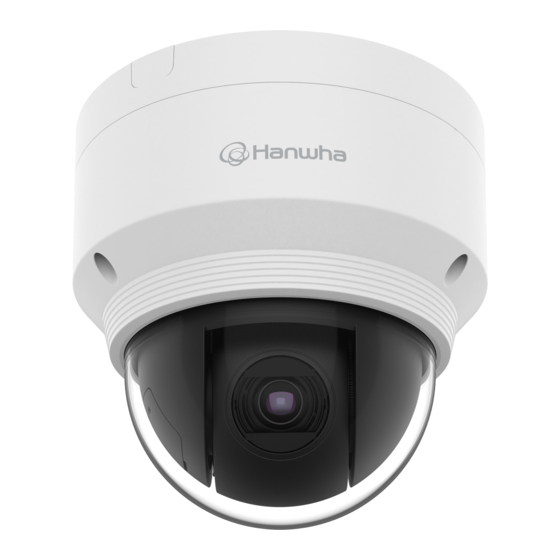

Hanwha Vision XNP-6120HW User Manual
  1. Manuals
  2. Brands
  3. Hanwha Vision Manuals
  4. Security Camera
  5. XNP-6120HW
  6. User manual

Hanwha Vision XNP-6120HW User Manual

Hide thumbs Also See for XNP-6120HW:
Table of Contents

Advertisement

Quick Links

Download this manual
NETWORK CAMERA
User Manual
XNP-6120HW

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XNP-6120HW and is the answer not in the manual?

Questions and answers

Related Manuals for Hanwha Vision XNP-6120HW

Summary of Contents for Hanwha Vision XNP-6120HW

  • Page 1 NETWORK CAMERA User Manual XNP-6120HW...
  • Page 2 Network Camera User Manual Copyright ©2024 Co., Ltd. All rights reserved. Hanwha Vision Trademark Each of trademarks herein is registered. The name of this product and other trademarks mentioned in this manual are the registered trademark of their respective company. Restriction Copyright of this document is reserved.
  • Page 3 overview IMPORTANT SAFETY INSTRUCTIONS WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT 1. Read these instructions. TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECT THROUGH THE VENTILATION GRILLS OR OTHER OPENNINGS ON THE EQUIPMENT. 2.
  • Page 4 overview Class construction Please read the following recommended safety precautions carefully. An apparatus with CLASS construction shall be connected to a MAINS socket outlet with a ~ Do not place this apparatus on an uneven surface. protective earthing connection. ~ Do not install on a surface where it is exposed to direct sunlight, near heating equipment or heavy cold area.

  • Page 5: Table Of Contents

    CONTENTS OVERVIEW Important Safety Instructions WEB VIEWER Connecting to the Camera Recommended Micro SD/SDHC/SDXC Password setting Memory Card Specifications Login What’s Included Camera Web Viewer Setup At a Glance APPENDIX Troubleshooting INSTALLATION & CONNECTION Installation Inserting/Removing a Micro SD Memory Card Memory Card Information (Not Included) Connecting with other Device...

  • Page 6: Recommended Micro Sd/Sdhc/Sdxc Memory Card Specifications

    overview RECOMMENDED MICRO SD/SDHC/SDXC MEMORY CARD SPECIFICATIONS ~ Recommended capacity : 16GB to 256GB (MLC type required) ~ Recommended Manufacturers : SanDisk, Transcend ~ Product Type : High endurance ~ The compatibility varies depending on the card manufacturers and types. 6_ overview...

  • Page 7: What's Included

    WHAT’S INCLUDED Please check if your camera and accessories are all included in the product package. (As for each sales country, accessories are not the same.) Appearance Item Name Quantity Description Appearance Item Name Quantity Description Audio/RS-485 cable Used for audio and RS-485 connection Camera Alarm cable Used for alarm connection...

  • Page 8: At A Glance

    overview AT A GLANCE Components Appearance Item Description Dome cover Case cover used to protect the lens and the main unit. Camera Case Housing part that covers the camera body. 8_ overview...
  • Page 9 Item Description Lens Lens for the camera. Port to connect the WiFi dongle. You can check the installation video through the applications installed in the smartphone. MICRO USB port Refer to “Connect to WiFi dongle” on page 14. WiFi dongle and OTG adapter are sold separately. Micro SD Memory Card Compartment for the Micro SD memory card.

  • Page 10: Installation & Connection

    installation & connection INSTALLATION Installation 1. Drill a hole (diameter : 6mm, depth : min 55mm) of the case bottom and insert the provided plastic anchor to the end. This camera is waterproof and in compliance with the IP66 spec, but the jack connected to the external cable is not. You are recommended to install this product below the edge of eaves to prevent the cable from being externally exposed.
  • Page 11 3. Insert the power cable into the small hole made by removing the projected 3. Insert the audio/RS-485 and alarm cable through the hole formed by part of the rubber plug in step 2 above, and lay the cable along the long removing the rubber plug in step 2, and connect it to the alarm terminal of groove.

  • Page 12: Inserting/Removing A Micro Sd Memory

    installation & connection INSERTING/REMOVING A MICRO SD MEMORY CARD Removing a Micro SD Memory Card Gently press down on the exposed end of the memory card as shown in the diagram to eject the memory card from the slot. Disconnect the power cable from the camera before inserting the Micro SD memory card. Do not insert the Micro SD memory card while it’s upside down by force.

  • Page 13: Memory Card Information (Not Included)

    MEMORY CARD INFORMATION (NOT INCLUDED) CONNECTING WITH OTHER DEVICE What is a memory card? The memory card is an external data storage device that has been developed to offer an entirely new way to Monitor to install SOFT AP record and share video, audio, and text data using digital devices. Selecting a memory card that’s suitable for you WiFi dongle Your camera supports Micro SD/SDHC/SDXC memory cards.
  • Page 14 installation & connection Ethernet Connection Power Supply Connect the Ethernet cable to the local network or to the Internet. Use the screwdriver to connect each line (+, –) of the power cable to the corresponding power port of the camera. Connecting WiFi If DC 12V and PoE power are supplied at the same time, the unit will operate with the external power (DC 12V).
  • Page 15 Connecting to Audio Input/Output RS-485 communication ~ Control signal connection diagram Microphone Camera Controller Speaker RS-485+ TXD+ Speaker RS-485- TXD- Communication cable An RS-485 communication line is needed for communication between the camera and the controller. Microphone It is recommended that the cable length be less than 30M. Speaker Microphone The communication cable is not included.
  • Page 16 installation & connection Connecting to the I/O port box Select Normal Open from the setup menu. Connect the Alarm I/O cable to the corresponding port of the port box. - The sensor input is activated when it is short if the contact type is used, and when it is at the “LOW” level if the active type is used.

  • Page 17: Network Connection And Setup

    network connection and setup CONNECTING THE CAMERA DIRECTLY TO A DHCP BASED DSL/CABLE You can set up the network settings according to your network configurations. MODEM CONNECTING THE CAMERA DIRECTLY TO LOCAL AREA NETWORKING Connecting to the camera from a local PC in the LAN INTERNET DSL/Cable Modem 1.

  • Page 18: Using Device Manager

    If using a Broadband Router ~ IP Address : Enter an address falling in the IP range provided by the Broadband Router. Device manager program can be downloaded from <Support>-<Online Tool> menu at Hanwha Vision website ex) 192.168.1.2~254, 192.168.0.2~254, (https://www.HanwhaVision.com).

  • Page 19: Manually Registering Camera

    AUTOMATICALLY CONFIGURING IP Configuring Dynamic IP Receive IP address from DHCP 1. Click the camera from the list that you want to automatically ~ Example of the Dynamic IP environment configure the IP. XNP-6120H - If a Broadband Router, with cameras connected, is assigned an IP address by the DHCP server 2.

  • Page 20: Port Range Forward (Port Mapping) Setup

    network connection and setup PORT RANGE FORWARD (PORT MAPPING) SETUP Setting up Port Range Forward for several network cameras ~ You can set a rule of Port Forwarding on the Broadband Router device through its configuration web page. If you have installed a Broadband Router with a camera connected, you must set the port range forwarding on the ~ A user can change each port using the camera setting screen.

  • Page 21: Connecting To The Camera From A Shared Local Pc

    CONNECTING TO THE CAMERA FROM A SHARED LOCAL PC 1. Run device manager. It will scan for connected cameras and display them as a list. 2. Double-click a camera to access. The Internet browser starts and connects to the camera. Access to the camera can also be gained by typing the camera’s IP address in the address bar of the Internet browser.

  • Page 22: Connecting To The Camera

    web viewer CONNECTING TO THE CAMERA Connecting via Bonjour 1. Run the client or operating system in support of the Bonjour protocol. Normally, you would 2. Click the camera name for search. In the Mac operating system, click the camera name searched from the Bonjour tab of Safari. 1.

  • Page 23: Password Setting

    PASSWORD SETTING CAMERA WEB VIEWER SETUP When you access the product for the first time, you must register the 1. Click the [Setup ( )] icon. login password. 2. The Settings window appears. 3. You can configure settings for the camera’s basic information, video, audio, network, event, analysis, and For a new password with 8 to 9 characters, you must use at least 3 system over the network.

  • Page 24: Troubleshooting

    appendix appendix TROUBLESHOOTING PROBLEM SOLUTION Voice is not recorded even though PROBLEM SOLUTION ~ You must enable the <Audio In> check box in <Basic> - <Video Profile>. audio input settings are configured. When an Windows 10 user accesses ~ This is what happens when microphone driver has been set to Realtek driver. ~ Verify the settings in the following sequence: the web viewer through Chrome <Motion detection>...
  • Page 25 Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. Hanwha Vision cares for the environment at all product manufacturing stages, and is taking measures to provide customers with more environmentally friendly products.
