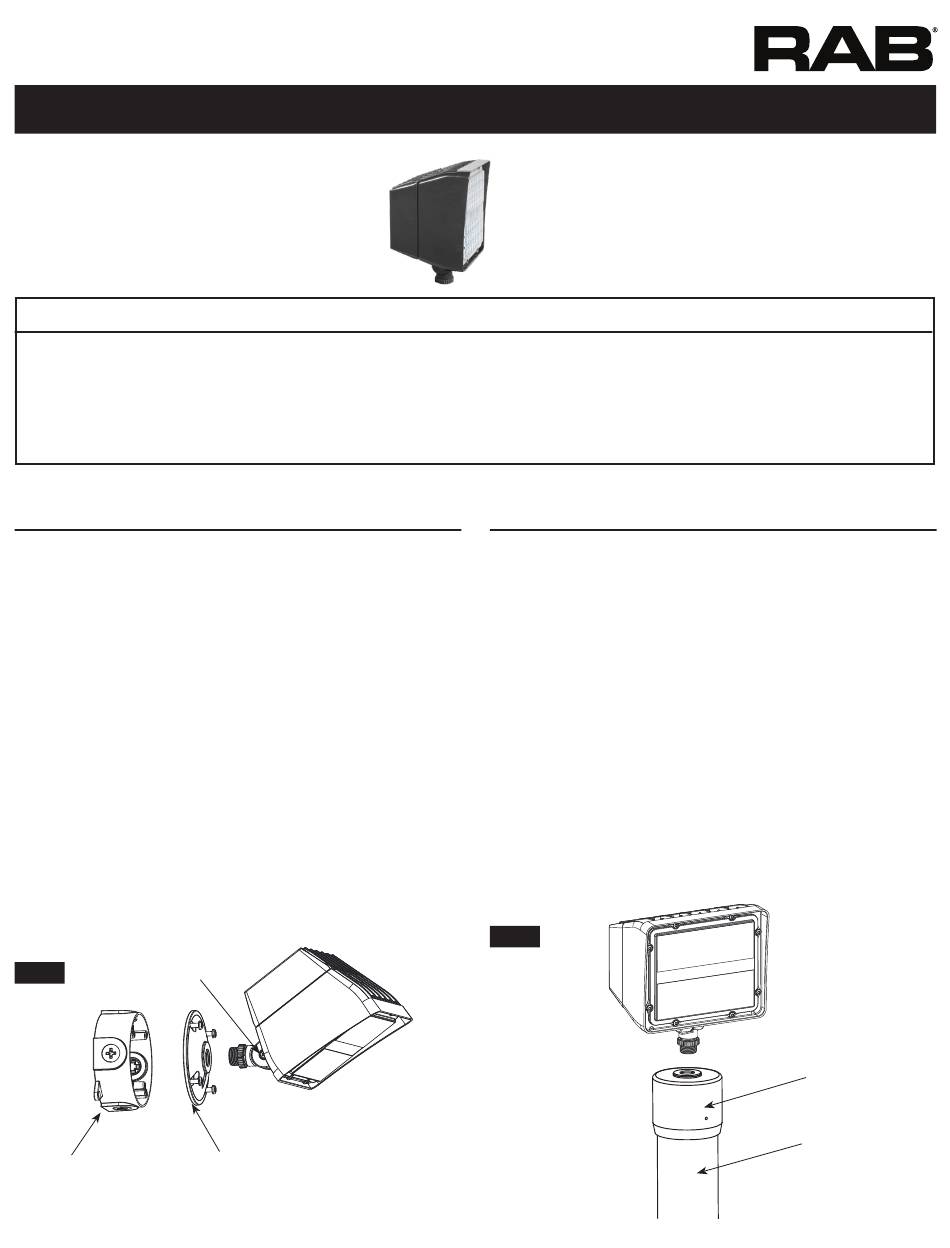

RAB PIP 45W Installation Instructions

INSTRUCTIONS
PIP® 45W INSTALLATION
RAB Lighting is committed to creating high-quality, affordable, well-designed and energy-efficient LED lighting and controls that make it easy for electricians to install
and end users to save energy. We'd love to hear your comments. Please call the Marketing Department at 888-RAB-1000 or email: marketing@rablighting.com

IMPORTANT

READ CAREFULLY BEFORE INSTALLING FIXTURE. RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE.
RAB fixtures must be wired in accordance with the National Electrical Code and all applicable local codes. Proper grounding is
required for safety. THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY A PERSON
FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED.
WARNING: Make certain power is OFF before installing the fixture. No user serviceable parts inside.

WALL MOUNTING

Mount to a weatherproof Junction Box and Cover Plate
(not supplied) as shown in Fig.1.
To ensure weatherproof seal, apply weatherproof silicone sealant
around the edge of the Junction Box (not supplied). This is
especially important with an uneven wall surface.
1. Secure LED Flood to a 1/2" NPS on Cover Plate (not supplied).
Seal arm thread using Teflon® tape or silicone sealant.
2. Connect wires as shown in the wiring diagram Fig.3.
Use appropriate UL approved wire connectors as required by
code to make electrical splices to fixture leads. Be careful not
to pinch wires.
WARNING: To prevent wiring damage or abrasion, do not
expose wiring to edges of sharp objects.
3. Attach Cover Plate to Junction Box (not supplied).
4. Aim floodlight in the direction desired and tighten locknut
and Arm Screw.
5. Plug all unused holes and seal threads with Teflon tape or
silicone sealant.
Arm Screw
Fig. 1
Junction Box Cover Plate
(not supplied) (not supplied)
PIP 45W

GROUND MOUNTING

Mount to a Mighty Post (RAB CAT# MP19) as shown in Fig.2.
To ensure weatherproof seal, apply weatherproof silicone sealant
around the edge of the Junction Box (not supplied). This is
especially important with an uneven wall surface.
1. Secure LED Flood on Mighty Post Cap. Seal arm thread using
Teflon tape or silicone sealant.
2. Connect wires as shown in the wiring diagram Fig.3.
and push all wires inside the Mighty Post. Use appropriate
UL approved wire connectors as required by code to make
electrical splices to fixture leads. Be careful not to pinch wires.
WARNING: To prevent wiring damage or abrasion, do not
expose wiring to edges of sharp objects.
Place Mighty Post Cap on the Mighty Post
3.
4. Aim floodlight in the direction desired and tighten locknut and
Arm Screw.
Fig. 2
Mighty Post Cap
Mighty Post
