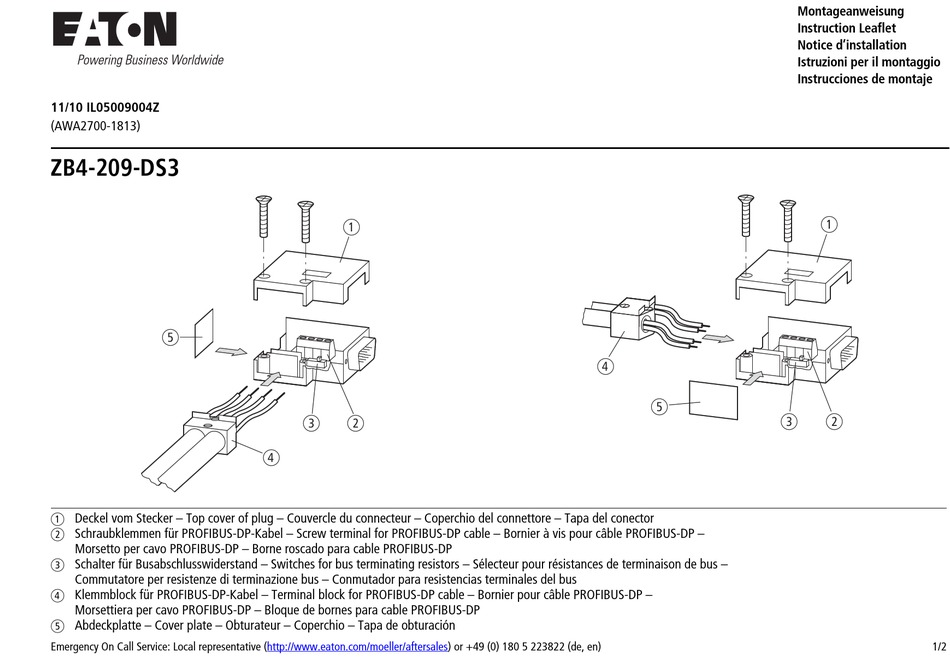

Eaton ZB4-209-DS3 Instruction Leaflet

11/10 IL05009004Z

(AWA2700-1813)

ZB4-209-DS3

a Deckel vom Stecker – Top cover of plug – Couvercle du connecteur – Coperchio del connettore – Tapa del conector

b Schraubklemmen für PROFIBUS-DP-Kabel – Screw terminal for PROFIBUS-DP cable – Bornier à vis pour câble PROFIBUS-DP –

Morsetto per cavo PROFIBUS-DP – Borne roscado para cable PROFIBUS-DP

c Schalter für Busabschlusswiderstand – Switches for bus terminating resistors – Sélecteur pour résistances de terminaison de bus –

Commutatore per resistenze di terminazione bus – Conmutador para resistencias terminales del bus

d Klemmblock für PROFIBUS-DP-Kabel – Terminal block for PROFIBUS-DP cable – Bornier pour câble PROFIBUS-DP –

Morsettiera per cavo PROFIBUS-DP – Bloque de bornes para cable PROFIBUS-DP

e Abdeckplatte – Cover plate – Obturateur – Coperchio – Tapa de obturación

Emergency On Call Service: Local representative (http://www.eaton.com/moeller/aftersales) or +49 (0) 180 5 223822 (de, en)

Montageanweisung

Instruction Leaflet

Notice d'installation

Istruzioni per il montaggio

Instrucciones de montaje

1/2
