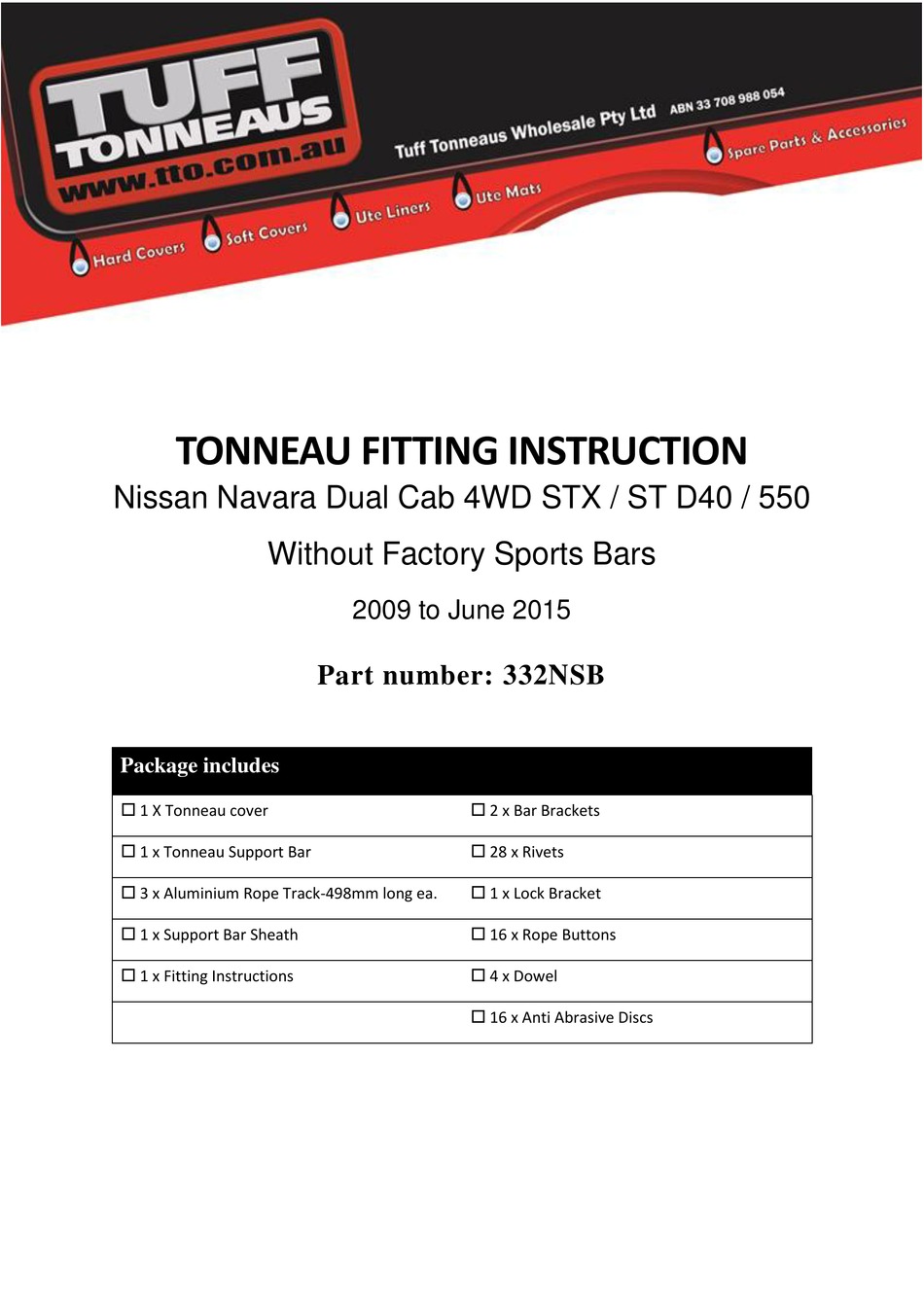

TONNEAU FITTING INSTRUCTION
Nissan Navara Dual Cab 4WD STX / ST D40 / 550
Without Factory Sports Bars
Package includes
1 X Tonneau cover
1 x Tonneau Support Bar
3 x Aluminium Rope Track-498mm long ea.
1 x Support Bar Sheath
1 x Fitting Instructions
2009 to June 2015
Part number: 332NSB
2 x Bar Brackets
28 x Rivets
1 x Lock Bracket
16 x Rope Buttons
4 x Dowel
16 x Anti Abrasive Discs
Advertisement
Table of Contents
Related Manuals for Tuff Tonneaus 332NSB
Summary of Contents for Tuff Tonneaus 332NSB
- Page 1 TONNEAU FITTING INSTRUCTION Nissan Navara Dual Cab 4WD STX / ST D40 / 550 Without Factory Sports Bars 2009 to June 2015 Part number: 332NSB Package includes 1 X Tonneau cover 2 x Bar Brackets 1 x Tonneau Support Bar ...
- Page 2 1. TONNEAU COVER FITTING NOTE Read entire instructions prior to start. 1.1 BASIC TOOL REQUIRED Drill, 4mm Drill Bit, Rivet Gun, Marking Pencil / Pen 1.2 TONNEAU COVER INSTALLATION PROCEDURE Using two pieces of dowel, join the 3 aluminium rope tracks together. Place the other 2 pieces of dowel in the ends of the now joined rope track.
- Page 3 Figure 1: Placement of aluminium rope track. Ensure channel is above the tub’s top edge. 15mm Down 740mm from top edge of tub Figure 2: Placement of bar bracket Figure 3: Placement of rope button is along panel crease and vertically inline with each ring grip.
- Page 4 2. TONNO LOCK The Tonno Lock is now a standard feature included with all Tuff Tonneaus. The Tonno Lock is situated at the front of the tonneau cover, so as not to impede the accessibility of the Tuff Tonneau. Fitting the lock is simple and only requires a small attachment on the inside edge of the tub behind the cab.
- Page 5 3.1 BASIC TOOL REQUIRED Drill, 4mm drill bit 3.2 MULTI-FIT SUPPORT BAR CONTENTS 1 x hollow bar centrepiece 2 x grub screws 2 x solid bar end piece 1 x Tonneau bar sheath 3.3 FITTING MULTI-FIT BAR 1. Insert solid bar pieces into either end of hollow tube. Adjust bar so it fits between bar bracket holders with the holes facing to the ground (so the grub screws don’t rub against the tonneau), as shown above and then with a white pencil make a mark through the small holes of the hollow bar onto the solid ends.
