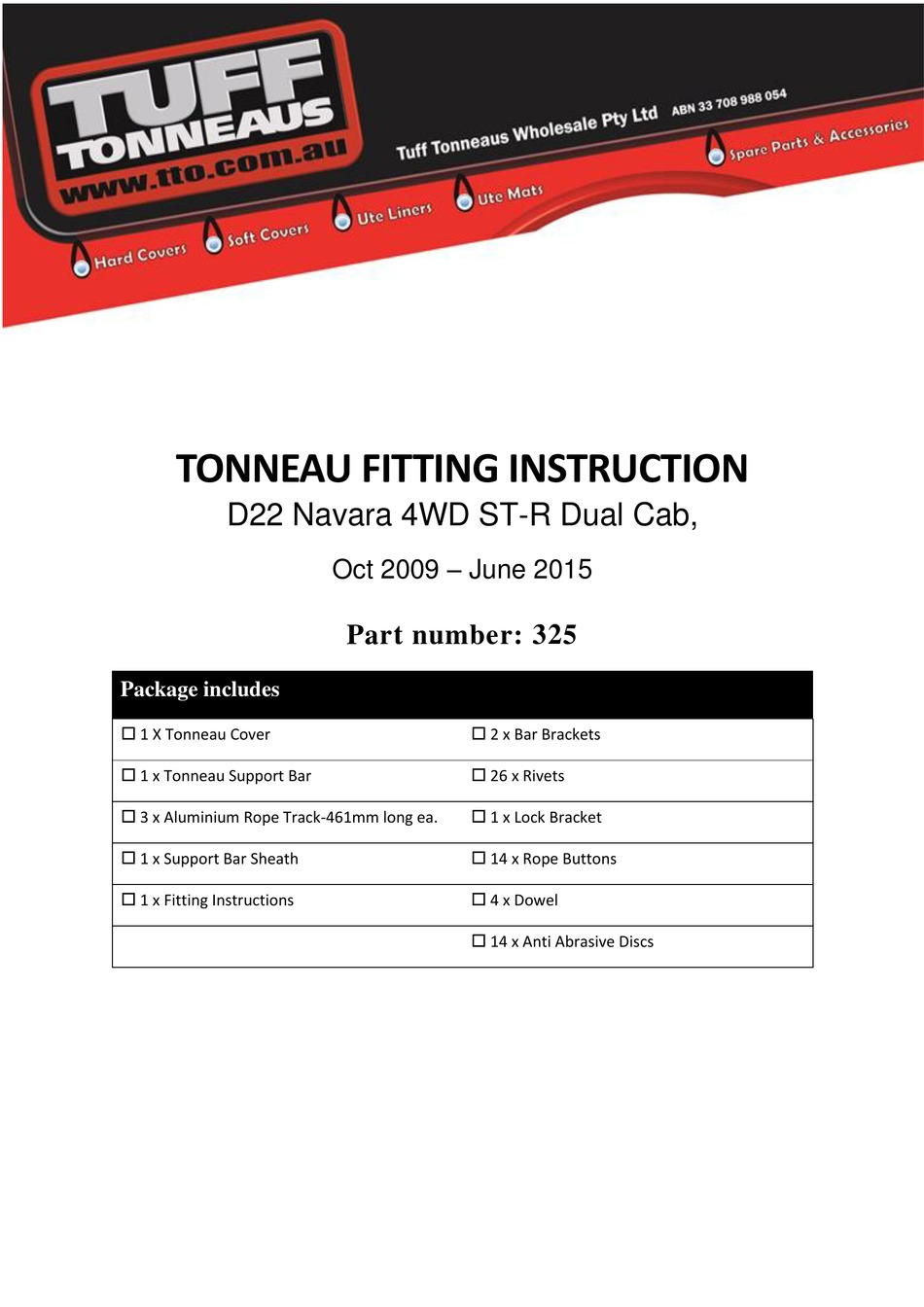

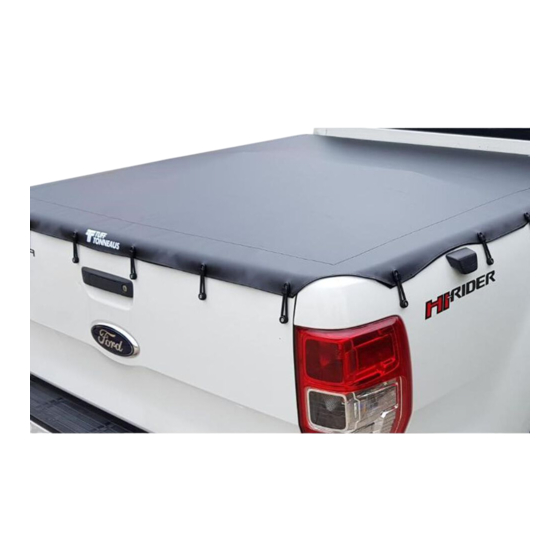

TONNEAU FITTING INSTRUCTION
D22 Navara 4WD ST-R Dual Cab,
Package includes
 1 X Tonneau Cover
 1 x Tonneau Support Bar
 3 x Aluminium Rope Track-461mm long ea.
 1 x Support Bar Sheath
 1 x Fitting Instructions
Oct 2009 – June 2015
Part number: 325
 2 x Bar Brackets
 26 x Rivets
 1 x Lock Bracket
 14 x Rope Buttons
 4 x Dowel
 14 x Anti Abrasive Discs

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 325 and is the answer not in the manual?

Questions and answers

Related Manuals for Tuff Tonneaus 325

Summary of Contents for Tuff Tonneaus 325

  • Page 1 TONNEAU FITTING INSTRUCTION D22 Navara 4WD ST-R Dual Cab, Oct 2009 – June 2015 Part number: 325 Package includes  1 X Tonneau Cover  2 x Bar Brackets  1 x Tonneau Support Bar  26 x Rivets  3 x Aluminium Rope Track-461mm long ea.
  • Page 2 1. TONNEAU COVER FITTING NOTE Read entire instructions prior to start. 1.1 BASIC TOOL REQUIRED Drill, 4mm Drill Bit, Rivet Gun, Marking Pencil / Pen 1.2 TONNEAU COVER INSTALLATION PROCEDURE 1. Using two pieces of dowel, join the 3 aluminium rope tracks together. Place the other 2 pieces of dowel in the ends of the now joined rope track.
  • Page 3 Figure 1 Placement of aluminium rope track. Ensure channel is above the tub’s top edge. Figure 2 Placement of rope button is on tailgate panel crease as per measurements. Figure 3 Placement of rope button is on the side, is under panel crease as per measurements.
  • Page 4 2. TONNO LOCK The Tonno Lock is now a standard feature included with all Tuff Tonneaus. The Tonno Lock is situated at the front of the tonneau cover, so as not to impede the accessibility of the Tuff Tonneau. Fitting the lock is simple and only requires a small attachment on the inside edge of the tub behind the cab.
  • Page 5 3.2 MULTI-FIT SUPPORT BAR CONTENTS 1 x hollow bar centrepiece 2 x grub screws 2 x solid bar end piece 1 x Tonneau bar sheath 3.3 FITTING MULTI-FIT BAR 1. Insert solid bar pieces into either end of hollow tube. Adjust bar so it fits between bar bracket holders with the holes facing to the ground (so the grub screws don’t rub against the tonneau), as shown above and then with a white pencil make a mark through the small holes of the hollow bar onto the solid ends.
