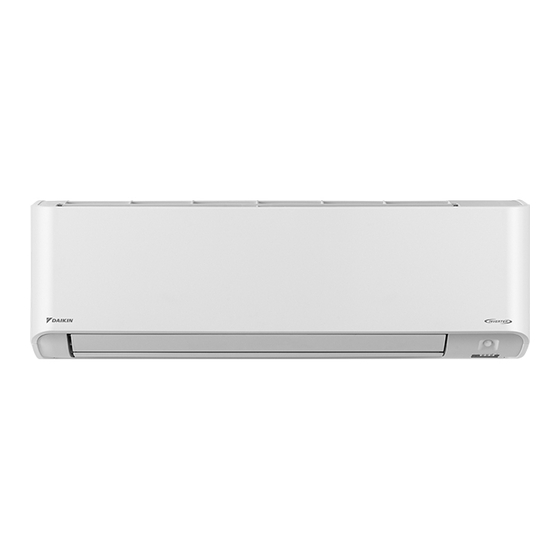

- Page 1 DA IK IN ROOM AIR CO N DI TIO NE R OPERATION MANUAL M OD E LS FTKZ15VV2S FTKZ18VV2S FTKZ24VV2S [Sticker attachment area] Attach the SSID&KEY sticker of wireless LAN connecting adapter to the sticker attachment area and keep safe.
- Page 2 Features Enhanced comfort, energy savings and air cleaning DRY (Dehumidifying) This mode mixes dehumidified cool air with room air to adjust the air outlet temperature and remove moisture. Page 15 INTELLIGENT EYE The INTELLIGENT EYE sensor detects the human movement in a room.
-
Page 3: Table Of Contents
Contents Read Before Operation Safety Precautions .......... Names of Parts ..........Preparation Before Operation ...... Basic Operation COOL · DRY · FAN Operation .... Adjusting the Airflow Rate ....Adjusting the Airflow Direction ... Useful Functions MOLD PROOF Operation ....FLASH STREAMER AIR CLEANING Operation .... -
Page 4: Read Before Operation
Read Before Operation Safety Precautions Read the precautions in this manual carefully This appliance is filled with R32. before operating the unit. • After reading, keep this manual in a convenient place so that you can refer to it whenever necessary. If the equipment is transferred to a new user, be sure also to hand over the manual. - Page 5 Read Before Operation • Be sure to earth the unit. Do not earth the unit to a utility pipe, lightning conductor or telephone earth lead. Imperfect earthing may result in electric shock. CAUTION • Be aware that prolonged, direct exposure to cool or warm air from the air conditioner, or to air that is too cool or too warm can be harmful to your physical condition and health.
-
Page 6: Names Of Parts
Read Before Operation Names of Parts Indoor Unit Air inlet „ Room temperature Front panel sensor and Room humidity sensor • Sense the air temperature and humidity around the unit. „ Streamer air inlet • Air inlet for streamer operation. Flaps Air outlet INTELLIGENT EYE... - Page 7 Read Before Operation „ Open the front panel Backside of the front panel Fixing tab Panel support plate Wireless LAN connecting adapter (inside) Page 7, 30 Streamer unit (inside) Prevents mold and allergens with the decomposition power of the streamer discharge. SSID&KEY sticker of wireless LAN connecting adapter Air filter...
- Page 8 Read Before Operation Names of Parts Wireless LAN connecting adapter The wireless LAN connecting adapter function requires the DAIKIN Mobile controller application for connecting to the air conditioner and controlling it via your smartphone or tablet over your network. ATTENTION •...
- Page 9 Read Before Operation Remote Controller Signal transmitter Display (LCD) • Displays the current settings. Receiver (In this illustration, each section is shown with all its displays on for the purpose of explanation.) • To use the remote controller, aim the transmitter at the indoor unit.
- Page 10 Read Before Operation Names of Parts „ Open the front cover MODE selector button • Selects the operation mode. (DRY/COOL/FAN) Page 14 CEILING button • CEILING airflow operation. Page 22 SENSOR button • INTELLIGENT EYE operation. Page 23 SWING button •...
-
Page 11: Preparation Before Operation
Read Before Operation Preparation Before Operation CAUTION Incorrect handling of batteries can result in injury from battery leakage, rupturing or heating, or lead to equipment failure. Please observe the following precautions and use safely. • If the alkaline solution from the batteries should get in the eyes, do not rub the eyes. Instead, immediately flush the eyes with tap water and seek the attention of a medical professional. - Page 12 Read Before Operation Preparation Before Operation „ To set the clock Press “ ” appears on the LCD. “ ” blinks. Press to set the clock to the present time. • Holding down rapidly increases or decreases the displayed time. Press •...
- Page 13 Read Before Operation „ To set the brightness of the indoor unit lamps Adjust the brightness of the indoor unit display as desired, or turn OFF the display. „ To set Press and hold the button for 2 seconds. • ‘‘ ”...
- Page 14 Read Before Operation Preparation Before Operation „ To set the position where the indoor unit is installed Set the indoor unit position to avoid direct airflow to walls. „ To set Press and hold the button for 2 seconds. • ‘‘ ”...
-
Page 15: Basic Operation
Basic Operation COOL · DRY · FAN Operation The air conditioner operates with the operation mode of your choice. From the next time on, the air conditioner will operate with the same operation mode. „ To start Press and select an operation mode. •... - Page 16 Basic Operation COOL · DRY · FAN Operation „ To change the temperature setting Press • Press to raise the temperature and press to lower the temperature. Each pressing of the button changes the temperature by 0.5°C. COOL operation DRY operation FAN operation The temperature setting 16.0~32.0°C...
-
Page 17: Adjusting The Airflow Rate
Basic Operation Adjusting the Airflow Rate You can adjust the airflow rate to increase your comfort. „ To adjust the airflow rate setting Press • Each pressing of changes the airflow rate setting in sequence. AUTO Indoor unit quiet Airflow rate 1-5 (Low to High) •... -
Page 18: Adjusting The Airflow Direction
Basic Operation Adjusting the Airflow Direction You can adjust the airflow direction to increase your comfort. ATTENTION • Always use a remote controller to adjust the angles of the flaps and louvres. − If you attempt to move the flaps and louvres forcibly by hand when they are swinging, the mechanism may be damaged. - Page 19 Basic Operation The 3-D airflow direction Press , and set the vertical and horizontal airflow directions to “Swinging”. • “ ” and “ ” appear on the LCD. • The flaps (horizontal blades) and louvres (vertical blades) will move alternately. •...
-
Page 20: Useful Functions
Useful Functions MOLD PROOF Operation The inside of the air conditioner is dried to reduce the occurrence of mold and odour. [To operate automatically] „ To set Press and hold the button for 2 seconds. • “ ” appears on the LCD. •... - Page 21 Useful Functions [Flow of function] MOLD PROOF operation MOLD PROOF setting Stop with streamer Heat exchanger is dried for about 60 mins. Automatic During operation, flap start every time opens and air flows. After Automatic stop Set function stop during Cooling or Dry MOLD PROOF setting MOLD PROOF operation with streamer...
-
Page 22: Flash Streamer Air Cleaning Operation
Useful Functions FLASH STREAMER AIR CLEANING Operation The streamer generates a high-speed electron stream with a high oxidizing power, reducing bad odours and viruses. Together with the air quality filter (enzyme blue with PM2.5) and the air filters, this function cleans the air in the room. „... -
Page 23: Ceiling Airflow Operation
Useful Functions CEILING AIRFLOW Operation The flow of air will be in the upward direction while in COOL/FAN/DRY operation, which will provide a comfortable wind that will not come in direct contact with people. Airflow direction : Upward (ceiling spread airflow) COOL/FAN/DRY operation „... -
Page 24: Intelligent Eye Operation
Useful Functions INTELLIGENT EYE Operation The INTELLIGENT EYE operation detects human movement. If no one is detected in the room for more than 20 minutes, the unit automatically enters energy saving operation. CAUTION • Do not place large objects near the INTELLIGENT EYE sensor. Also keep heating units and humidifiers outside the sensor’s detection area. - Page 25 Useful Functions INTELLIGENT EYE operation is useful for energy saving „ People are detected in the sensing area. „ No people are detected in the sensing area. The air conditioner is in normal operation while the The air conditioner will switch to energy-saving sensor is detecting human movement.
-
Page 26: Powerful Operation
Useful Functions POWERFUL Operation POWERFUL operation quickly maximises the cooling effect in any operation mode. In this mode, the air conditioner operates at maximum capacity. „ To start Press during operation. • “ ” appears on the LCD. • POWERFUL operation ends in 20 minutes. Then the system automatically operates again with the previous settings which were used before POWERFUL operation. -
Page 27: Econo / Outdoor Unit Quiet Operation
Useful Functions ECONO / OUTDOOR UNIT QUIET Operation ECONO operation enables efficient operation by limiting the maximum power consumption. This function is useful to prevent the circuit breaker from tripping when the unit operates alongside other appliances on the same circuit. OUTDOOR UNIT QUIET operation lowers the noise level of the outdoor unit by changing the frequency and fan speed of the outdoor unit. -
Page 28: Timer Operation
TIMER Operation ON/OFF TIMER Operation Timer functions are useful for automatically switching the air conditioner on or off at night or in the morning. You can also use the ON TIMER and OFF TIMER together. [ON TIMER with a 24 hour clock display] (24 HOUR ON/OFF TIMER) „... - Page 29 TIMER Operation [OFF TIMER with a 24 hour clock display] (24 HOUR ON/OFF TIMER) „ To set • Check that the clock is correct. If not, set the clock to the present time. Page 11 Press “ ” appears on the LCD. “ ...
- Page 30 TIMER Operation ON/OFF TIMER Operation [ON/OFF TIMER with an hours remaining display] (COUNT UP-DOWN ON/OFF TIMER) • Check that the clock is correct. If not, set the clock to the present time. Page 11 Press and hold for about 5 seconds, when signal indicater ( ) blink, release your finger from the button.
-
Page 31: System Control Via Smart Control
• Before downloading the application software for installation, please read ‘‘Configuration” on Page 7 For Android phones 1) Open [Google Play]. 2) Search using the application name: [DAIKIN Mobile Controller]. 3) Follow the on-screen instructions for installation. For iOS phones 1) Open [App Store]. 2) Search using the application name: [DAIKIN Mobile Controller]. - Page 32 System control via Smart Control Wireless LAN connection Enabling/disabling the wireless LAN connecting adapter „ To enable While operation is stopped, press and hold the button for 5 seconds. • “ ” appears on the LCD. • “ ” (SP menu) blinks. Press and select SP menu .
- Page 33 • The wireless LAN connecting adapter lamp (orange) stays lit. If you fail to connect, refer to NOTE. Press to return to the default screen. Connect your smart phone to your home network. Open the Home screen of the DAIKIN Mobile Controller application. The air conditioner will be listed there (Fig.1). Fig. 1 NOTE Note on simple connection (WPS connection) •...
- Page 34 • The wireless LAN connecting adapter lamp (orange) stays lit. If you fail to connect, refer to NOTE. Connect your smart phone to your home network. Open the Home screen of the DAIKIN Mobile Controller application. The air conditioner will be listed there. Fig. 2 Reset connection setting to factory defaults.
-
Page 35: Care
Care Care and Cleaning CAUTION • Before cleaning, be sure to stop the operation and turn off the circuit breaker. • Do not touch the aluminum fins of the indoor unit. If you touch those parts, this may cause an injury. „... - Page 36 Care Care and Cleaning „ Air filter Open the front panel. Wash the air filters with water or clean them with • Hold the front panel by the sides and open it. vacuum cleaner. Backside of the front panel • It is recommended to clean the air filters every Fixing tab 2 weeks.
- Page 37 Care „ Filter (small) * For the applicable filter type, please refer to Page 34 Attaching Clean or replace. [Cleaning] Open the front panel and Deodorizing filter (enzyme blue) : Blue / pull out the air filters. Page 35 Titanium apatite deodorizing filter : Insert the filter.
- Page 38 Care Care and Cleaning „ Prior to a long period of non-use Operate the MOLD PROOF mode. Page 19 After operation stops, turn off the circuit breaker for the room air conditioner. Clean the air filters and reattach them. Page 35 To prevent battery leakage, take out the batteries from the remote controller.
-
Page 39: When The Need Arises
When the Need Arises Indoor unit The flaps do not start swinging immediately. • The air conditioner is adjusting the position of the flaps. The flaps will start moving soon. Operation does not start soon. Different sounds are heard. „ A sound like flowing water „... -
Page 40: Troubleshooting
When the Need Arises Troubleshooting Before making an inquiry or a request for repair, please check the following. If the problem persists, consult your dealer. Not a problem Check This case is not a problem. Please check again before requesting repairs. Air conditioner The air conditioner does not operate Case... - Page 41 When the Need Arises Air conditioner Mist comes out Case Description / what to check • This happens when the air in the room is cooled into mist by the cold airflow during COOL Mist comes out of the indoor unit. or other operation.
- Page 42 • Refer to the FAQ on: None of the above work. http://www.daikinthai.com/product/dmobile For instructions about how to operate the DAIKIN Mobile Controller application, please refer to the operation manual at http://www.daikinthai.com/product/dmobile „ Call your dealer immediately WARNING When an abnormality (such as a burning smell) occurs, stop operation and turn off the circuit breaker.
- Page 43 When the Need Arises „ Fault diagnosis by remote controller • In case the air conditioner is malfunctioning, you can check the error code via the remote controller before consulting with service personnel and informing them of the malfunction code. When is held down for about 5 seconds, “...
-
Page 44: Specifications
Specifications Specifications Air conditioner Indoor unit model name FTKZ15VV2S FTKZ18VV2S FTKZ24VV2S Cooling capacity kW (kcal/h) 4.2(3610) 5.2(4470) 7.1(6110) Running current 10.3 Power consumption 1320 2140 Indoor unit Dimensions H (mm) W (mm) 1100 D (mm) Net weight Outdoor unit model name RKZ15VV2S RKZ18VV2S RKZ24VV2S... - Page 45 MEMO...
- Page 46 MEMO...
- Page 48 Quick Reference เป ด ป ด SIAM DAIKIN SALES CO.,LTD. This telecommunication equipment is in compliance with NTC requirements. 3P620957-12P _WEB...
