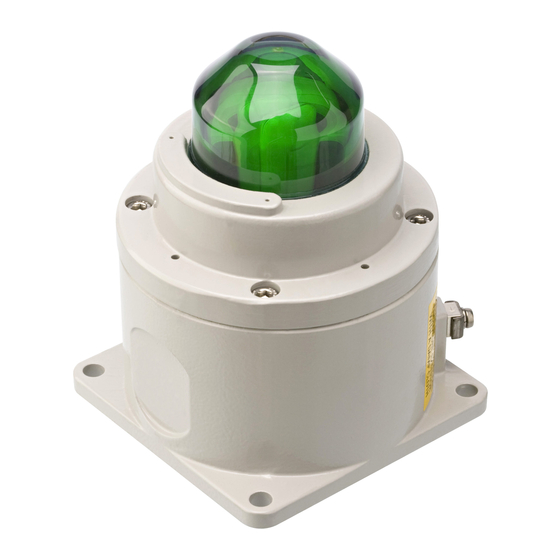

MEDC SM87 LU1 Technical Manual

Technical Manual for the

Steady Lights –

SM87 LU1 & SM87 LU3

Please note that every care has been taken to ensure the accuracy of our

technical manual. We do not, however, accept responsibility for damage,

loss or expense resulting from any error or omission. We reserve the right

to make alterations in line with technical advances and industry standards.

06/01

Table of Contents

Need help?

Do you have a question about the SM87 LU1 and is the answer not in the manual?

Page 1 Technical Manual for the Steady Lights – SM87 LU1 & SM87 LU3 Please note that every care has been taken to ensure the accuracy of our technical manual. We do not, however, accept responsibility for damage, loss or expense resulting from any error or omission. We reserve the right to make alterations in line with technical advances and industry standards.
Page 2 NEMA/IP rating of the unit is maintained. The light is mounted via 4 x Ø 0.354" (Ø 9mm) fixing holes in the base. The fixing holes have been designed to accept an M8 screw or bolt. MEDC recommend the use of stainless steel screws.
Page 3 However, if abnormal or unusual environmental conditions occur due to plant damage or accident etc., then visual inspection is recommended. If a fault should occur, it is recommended that the unit be returned to MEDC for repair. All parts are replaceable.
Page 4 6. CERTIFIED TEMPERATURE –55°C to +55°C –67°F to + 131°F MEDC Ltd, Colliery Road, Pinxton, Nottingham NG16 6JF, UK. Tel: +44 (0)1773 864100 Fax: +44 (0)1773 582800 Sales Enq. Fax: +44 (0)1773 582830 Sales Orders Fax: +44 (0)1773 582832 MEDC Stock No.
