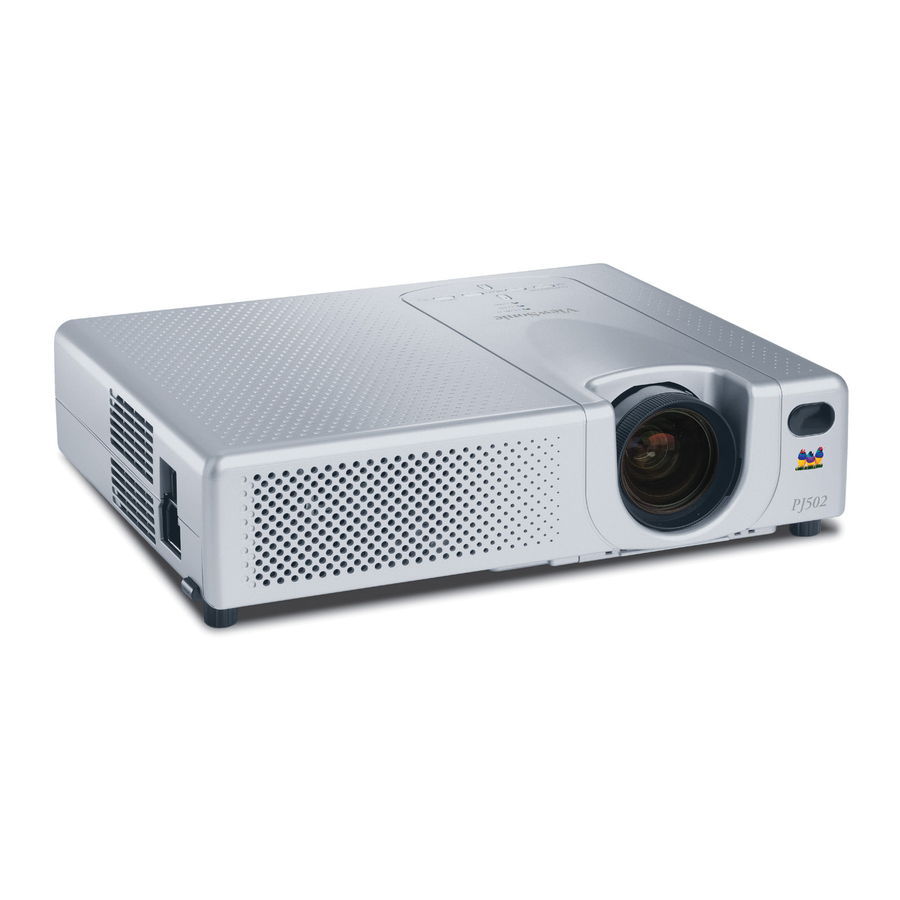

- Page 1 PJ502 User Guide Guide de l’utilisateur Bedienungsanleitung Guía del usuario Guida dell’utente Guia do usuário Användarhandbok Käyttöopas Руководство пользователя 使用手冊 使用手冊 Inage size 30"-300" High Brightness Light Weight LCD Projector...
-
Page 2: Table Of Contents
Temporarily blanking the screen...19 Multifunctional setting ... 20 Using the menu function ...20 EASY MENU...21 ASPECT, KEYSTONE, MODE,BRIGHT, CONTRAST, COLOR , TINT, SHRP- NESS, WHISPER , MIRROR, RESET , FILTER TIME, LANGUAGE, Go To Ad- vanced Menu 05/12/04 A ViewSonic PJ502... - Page 3 Warranty and after-service ... 40 Specifications ... 40 Customer Support...42 LIMITED WARRANTY ...43 Appendix ... 44 Power Cord Safety Guidelines...44 Compliance Information for U.S.A..45 Compliance Information for Canada ...45 Compliance Information for European Countries...45 User Information for all Countries ...45 ViewSonic PJ502...
-
Page 4: For Your Records
DPMS and DDC are trademarks of VESA. PS/2, VGA and XGA are registered trademarks of International Business Machines Corporation. Disclaimer: ViewSonic Corporation shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or consequential damages resulting from furnishing this material, or the performance or use of this product. -
Page 5: Projector Features
(6) Filter cover for bottom-up use (7) Soft case (8) Quick Start Guide (9) ViewSonic Wizard CD (10) Rivet & Strap NOTE . Keep the original packing materials for future reshipment. When transporting, be sure to use the original packing material. Use special caution to protect the lens. -
Page 6: Part Names
In such a case, please push the Restart switch by using a cocktail stick or similar and the projector will restart. Only push the Restart switch in these exceptional instances. Front-Right side Rear-Left side Bottom side ViewSonic PJ502 Controls (See the following page.) Remote control sensor Speaker... -
Page 7: Projector
ASPECT button MAGNIFY ON button OFF button FREEZE button POSITION button Menu cursor buttons , , , ESC (Escape) button Controls ViewSonic PJ502 Menu cursor button , , , INPUT button SEARCH button STANDBY/ON button AUTO button BLANK button VOLUME button... -
Page 8: Setting Up
Avoid a smoky, humid or dusty place. Placing the projector in such place could cause a fire, an electric shock and/or malfunction to the projector. * Don't place the projector near a humidifier, a smoking space or a kitchen. * Put nothing containing the liquid near the projector. ViewSonic PJ502... -
Page 9: Arrangement
(1.5) (1.8) (2.1) (2.4) (2.7) (3.1) (3.7) (4.6) (6.1) (7.7) (9.2) (c) Screen height [inch (cm)] (1.1) (1.4) (1.8) (2.2) (2.5) (2.9) (3.3) (3.6) (4.4) (5.5) (7.3) (9.2) (11.0) ViewSonic PJ502 (11) (12) (14) (15) (18) (23) (30) (38) (46) - Page 10 (3.0) (3.3) (4.0) (5.0) (6.7) (8.4) (10.1) (c) Screen height [inch (cm)] (1.2) (1.6) (2.0) (2.4) (2.8) (3.2) (3.6) (4.0) (4.8) (6.0) (8.0) (10.0) (12.0) ViewSonic PJ502 (-1) (-2) (-2) (-2) (-3) (-3) (-4) (-4) (-5) (-6) (-8) (-10) (-12)
-
Page 11: Adjusting The Projector's Elevator
2. Raise or lower the projector to the desired height and the release the elevator buttons. When you release the elevator buttons, the elevator feet will lock into position. 3. As necessary, you can also finely adjust the height of the projector by twisting the elevator feet by hand. Elevator feet Elevator button ViewSonic PJ502... -
Page 12: About The Filter Cover For A Unit Installed Bottom Side Up
3. Replace the filter cover for bottom-up use and snap it back into place. 4. Slowly turn up the projector so that the top is facing up. Filter cover's knob To remove Filter cover's knob To set ViewSonic PJ502... -
Page 13: Connecting Your Devices
Please take advantage of this function by connecting the accessory RGB cable to the RGB port (DDC 2B compatible). Plug-and-Play may not work properly if any other type of connec- tion is attempted. o Please use the standard drivers in your computer as this projector is a Plug-and-Play mon- itor. ViewSonic PJ502... -
Page 14: With A Computer
AUDIO CB/PB CR/PR Component video out AUDIO Stereo mini audio cable RS-232C cable RGB cable Video out Video cable Stereo mini audio cable S-Video out S-Video cable Stereo mini audio cable Component video cable Stereo mini audio cable ViewSonic PJ502... -
Page 15: Connecting Power Supply
* Never modify the power cord. Never attempt to defeat the ground connection of the three-pronged plug. 1. Connect the connector of the power cord to the AC inlet of the projector. 2. Firmly plug the power cord's plug into the outlet. AC Inlet Connector of the power cord ViewSonic PJ502... -
Page 16: Remote Control
Align and insert the two AA batteries according to their plus and minus terminals as indi- cated in the remote control. 3. Close the battery cover. Replace the battery cover in the direction of the arrow and snap it back into place. ViewSonic PJ502... -
Page 17: Operating The Remote Control
• Since the remote control uses infrared light to send signals to the projector (Class1 LED), be sure to use the remote control in an area free from obstacles that could block the re- mote control's output signal to the projector. about 3 meter ViewSonic PJ502... -
Page 18: Power On/Off
3. Make sure that the power indicator lights to solid orange, set the power switch to the OFF position. The POWER indicator will go off. POWER indicator Power switch (On position) (Off position) STANDBY / ON button ViewSonic PJ502... -
Page 19: Operating
COMPONENT VIDEO port at first. If no input is detects at the COMPONENT VIDEO port, projector will begin to check other ports. Please refer to the item SEARCH of section OPTION menu. to adjust the volume. S-VIDEO VIDEO S-VIDEO VIDEO ViewSonic PJ502... -
Page 20: Searching An Input Signal
The vertical position, the horizontal position, the clock phase and horizontal size will be automatically adjusted. Make sure that the application window is set to its maximum size prior to attempting to use this feature. A dark picture may still be incorrectly adjusted. Use a bright picture when adjusting. S-VIDEO VIDEO ViewSonic PJ502... -
Page 21: Adjusting The Position
1. Press the ON button of MAGNIFY on the remote control. The “MAGNIFY” indication will appear on the screen, and the projector will enter the MAGNIFY mode. / / / to adjust the picture position. to correct the distortion. ViewSonic PJ502... -
Page 22: Freezing The Screen
* The projector automatically returns to the input signal screen when the input signal changes, or when one of the projector’s buttons or the remote control buttons of STAND- BY/ON, SEARCH, RGB, VIDEO, FREEZE, AUTO, VOLUME, MUTE, POSITION and MENU is pressed. to adjust the zoom level. ViewSonic PJ502... -
Page 23: Multifunctional Setting
Even if you don't do anything, the dialog will automatically disappear after about 10 sec- onds. to select a menu. or the ENTER button on the remote control to to select an item to operate. Then press the menu cur- to operate the item. ViewSonic PJ502... -
Page 24: Easy Menu
CINEMA DYNAMIC adjusts the brightness. adjusts the contrast. adjusts the strength of whole color. adjusts the tint. adjusts the sharpness. turns off/on the whisper mode. switches the mode for mirror status. performs performs ViewSonic PJ502... -
Page 25: Picture Menu
GAMMA mode. #1 CUSTOM #2 DEFAULT #3 DEFAULT #2 CUSTOM , and adjust the level using the buttons Gray scale of 9 steps or the ENTER but- ViewSonic PJ502... -
Page 26: Color Temp
, and adjust the level using the buttons Gray scale of 9 steps adjusts the strength of whole color. adjusts the tint. adjusts the sharpness. switches the progressive mode. TURN OFF LOAD3 LOAD4 SAVE2 SAVE1 or the ENTER button on and then pressing the ViewSonic PJ502... -
Page 27: Image Menu
/ , and press the menu switches the mode for aspect ratio. NORMAL SMALL adjusts the over-scan ratio. adjusts the vertical position. adjusts the horizontal position. adjusts the horizontal phase to eliminate flicker. adjusts the horizontal size. ViewSonic PJ502... -
Page 28: Input Menu
/ , and press the menu switches the mode for color space. SMPTE240 REC709 switches the function of COMPONENT VIDEO port. SCART RGB switches the mode for video format. SECAM NTSC4.43 turns the frame lock function on/off. TURN OFF REC601 ViewSonic PJ502... -
Page 29: Setup Menu
NORMAL VOLUME Using the buttons High / , and press the menu corrects the keystone distortion. Lower in the data turns off/on the whisper mode. WHISPER switches the mode for mirror status. H:INVERT V:INVERT H&V:INVERT adjusts the volume. ViewSonic PJ502... -
Page 30: Screen Menu
OSD (On Screen Display) language. adjusts the menu position. switches the brightness level of the OSD (On DARK switches the mode the blank screen. ORIGINAL BLUE WHITE switches the mode the start up screen. ORIGINAL TURN OFF BLACK ViewSonic PJ502... -
Page 31: Turn On Turn Off
The indication of the input signal by changing The indication of the aspect ration by changing adjust the frame position. Please move the frame turns on/off the MyScreen lock function. TURN OFF turns on/off the message function. TURN OFF ViewSonic PJ502... -
Page 32: Option Menu
/ . And press the menu turns on/off the message function. TURN OFF adjusts the time to count down to automatically turn the Short (min. 0 minute = DISABLE) turns on/off the message function. TURN OFF CANCEL CANCEL ViewSonic PJ502... - Page 33 1. Select a color element of ghost using the buttons and press the menu cur- sor button or the ENTER button on the remote control to progress. 2 Adjust the selected element using the buttons to disappear ghost. ViewSonic PJ502...
-
Page 34: Maintenance
• Using the lamp for long periods of time, or past the replacement date, could cause it to burst. Do not use old (used) lamps; this is a cause of breakage. HIGH TEMPERATURE • This product contains a mercury lamp; do not put in trash. Dis- HIGH PRESSURE ViewSonic PJ502... - Page 35 • Incorrectly resetting of the lamp timer (resetting without replacement, or neglect of reset- ting after replacement) will result in incorrect message functions. Center poin of claws Tabs Lamp cover Claws Screws marked by arrow ViewSonic PJ502...
-
Page 36: Air Filter
10.Turn the projector on, and reset the filter time using the FILTER TIME function of OPTION menu. NOTE. Incorrectly resetting of the filter timer (resetting without replacement, or neglect of re- setting after replacement) will result in incorrect message functions Filter cover's knob Filter cover Filter filter's knob Air filter ViewSonic PJ502... -
Page 37: Other Care
2. Wipe lightly with gauze or a soft cloth. If soiling is severe, dip soft cloth in water or a neutral cleaner dilute in water, and wipe lightly after wringing well. Then, wipe lightly with a soft, dry cloth. ViewSonic PJ502... -
Page 38: Troubleshooting
If the same message is displayed after the treat- ment, please clean the transparent area of filter cover and the dust- detecting window, according to the following. When the projector lamp reaches 2000hours, this message is dis- played. ViewSonic PJ502... -
Page 39: Regarding The Indicator Lamps
If the same indication is displayed after the treatment, please contact your dealer or service company. ViewSonic PJ502... - Page 40 Please immediately turn the power OFF, and clean or change the air filter by referring to the section “Air Filter”. After cleaning or changed the lamp, please be sure to reset the filter timer. After the treatment, resent the power to ON. ViewSonic PJ502...
-
Page 41: Phenomena That May Easily Be Mistaken For Machine Defects
45 minutes. After the projector has sufficiently cooled down, please make confirmation of the attachment state of the lamp and lamp cover, and then turn the power on again. Reference page Connectiong power supply Power on/off Power on/off Lamp ViewSonic PJ502... - Page 42 Reference page Part name Power on/off Connecting your devices EASY MENU PICTURE menu EASY MENU PICTURE menu INPUT menu INPUT menu EASY MENU PICTURE menu EASY MENU SETUP menu Lamp Adjusting the zoom and focus IMAGE menu Other care ViewSonic PJ502...
-
Page 43: Warranty And After-Service
COMPONENT VIDEO Y... RCA x 1 Cb/Pb ... RCA x 1 Cr/Pr... RCA x 1 PRJ-RLC-015 Please contact your dealer or ViewSonic Please contact your dealer or ViewSonic S-VIDEO ...S-video x1 VIDEO ... RCA x1 AUDIO...Stereo mini x1 Communication port: CONTROL ... - Page 44 [unit: mm] ViewSonic PJ502...
-
Page 45: Customer Support
F: +61 2 9906 6377 viewsonic.com T: 65 273 4018 service@sg. F: 65 273 1566 viewsonic.com T: 886 2 2246 3456 service@sd. F: 886 2 8242 3668 viewsonic.com T: 886 2 2246 3456 service@hk. F: 886 2 8242 3668 viewsonic.com ViewSonic PJ502... -
Page 46: Limited Warranty
How long the warranty is effective: ViewSonic projectors are warranted for two (2) years for all parts excluding the lamp, three (3) years for all labor, and one (1) year for the lamp from the date of the first consumer purchase. -
Page 47: Appendix
If you have any questions concerning which proper power cord to use, please consult with the dealer from whom you have purchased the product. Switzerland ...SEV Britain...BASE/BS Earth Neutral Live Figure 1 Figure 2 Maximum Current Rating of Unit 10 Amps 12 Amps 12 Amps 10 Amps 12 Amps ViewSonic PJ502... -
Page 48: Compliance Information For U.s.a
The device complies with the requirements of the EEC directive 89/336/EEC as amended by 92/31/EEC and 93/68/EEC Art.5 with regard to “Electromagnetic compatibility,” and 73/23/EEC as amended by 93/68/EEC Art.13 with regard to “Safety.” User Information for all Countries NOTICE: Use the cables which are included with the projector or specified. ViewSonic PJ502... - Page 49 ViewSonic Corporation...
