Service Part Replacement

A. Glass
(Replace with 5mm ceramic glass only)
1. Ensure that the fire is out and the appliance is cool to
the touch.
2. Protect a table or counter top with padding or towels.
Protect your hands and wear gloves to prevent injury.
3. Remove the door with the broken glass by lifting the
door up and off of the hinges.
4. Lay door face down on a table or counter making sure
the handle hangs over the edge so the door lays flat,
on a soft surface.
5. Remove the screws from each glass retainer and
remove the glass. (If screws are difficult to remove,
soak with penetrating oil first).
6. Center the glass with edges evenly overlapping the
opening in the door, (i.e. same space top and bottom,
left and right sides).
7. Replace the glass retainers. Be careful not to cross
thread the screws.
8. Tighten each retainer just a few turns until each is
secured. Check again for centering of glass in door
frame. Continue to tighten each retainer alternately, a
few turns at a time, until the glass is secure.
NOTE: DO NOT OVER TIGHTEN - can cause glass
to break.
9. Replace the door on the appliance.
Quadra-Fire appliances are equipped with ceramic super
heat-resistant glass, which can only be broken by impact
or misuse.
WARNING
Injury Risk.
• Use only glass specified in manual.
• DO NOT REPLACE with any
other material.
CAUTION!
Handle glass assembly with care.
Glass
Assembly
When cleaning glass:
• Avoid striking, scratching or slamming glass.
• Do NOT clean glass when hot.
• Do NOT use abrasive cleaners.
• Use a hard water deposit glass cleaner on white film.
• Use commercial oven cleaner on heavier deposits.
• Remove all residue of oven cleaner or will
permanently stain glass on next firing. Refer to
maintenance instructions.
20
All manuals and user guides at all-guides.com
B. Firebrick Replacement
Replace the firebrick if they become crumbly and/or if there
is a 6.35mm gap between the bricks.
Inspect the firebrick after each ash removal.
The firebox is lined with high quality firebrick, which has
exceptional insulating properties. There is no need to use a
grate; simply build a fire on the firebox floor. Do not operate
appliance without firebrick.
1. After the coals have completely cooled, remove all old
2. Remove new brick set from box and lay out to
3. Lay bottom bricks in appliance.
4. Install rear bricks on the top of the bottom bricks. Slide
5. Install side bricks. Slide top of brick under clips on side
C. Door Handle Assembly
1. Slide door handle through door.
2. Install additional washer(s) as shown in Figure 20.1
3. Install key in groove.
4. Align groove in latch cam with key; slide latch cam
5. Install locknut but do not over tighten, the handle needs
6. Install fiber handle (Figure 20.1).
Do not over tighten lock nut. The door handle needs to
move smoothly.

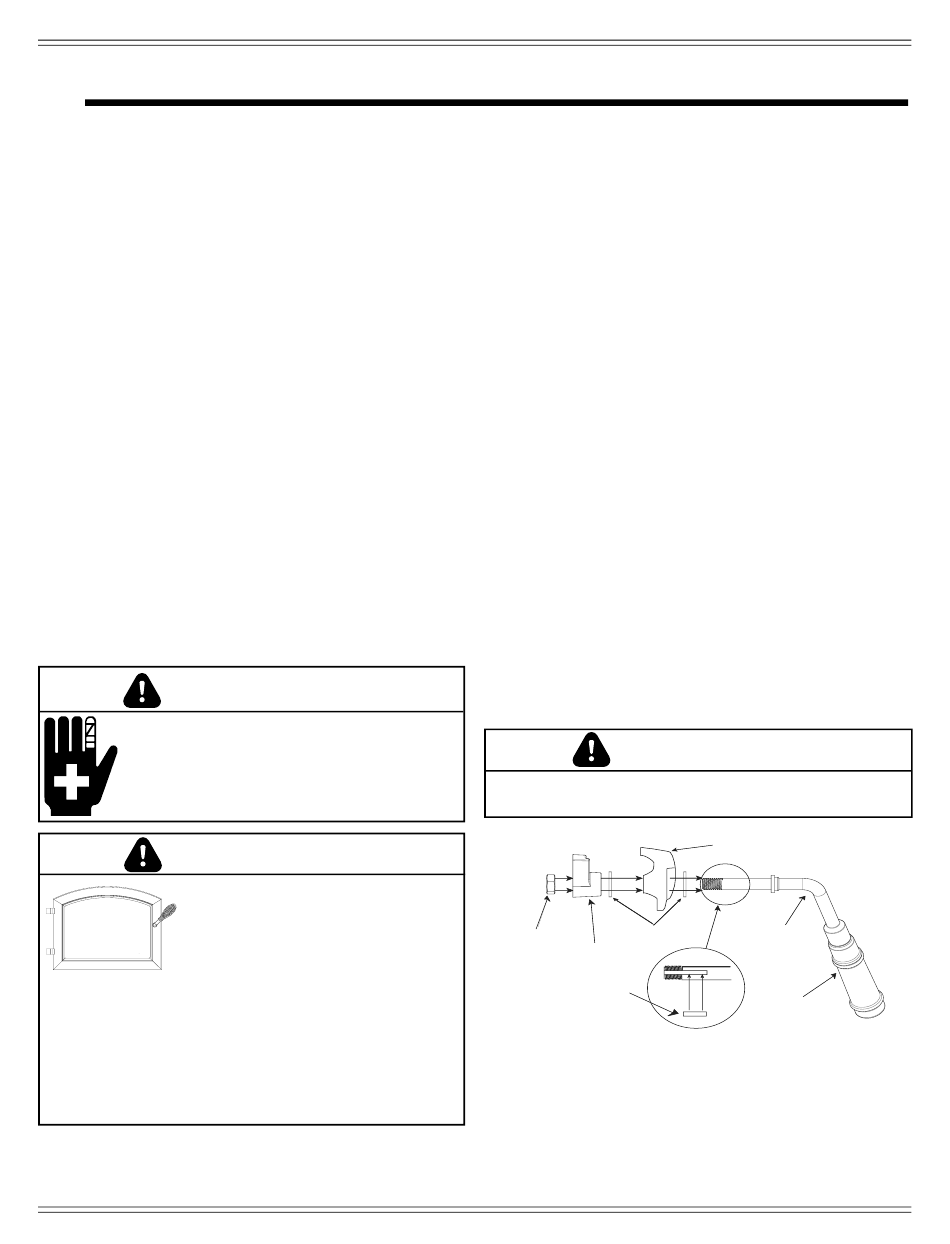

Figure 20.1
7033-362C
brick and ash from appliance and vacuum firebox.
diagram shown.
top of bricks under clip on back of firebox wall and
push bottom of brick back.
of firebox and push the bottom of the brick until it is
flush with the side of the appliance.
over shaft
to rotate smoothly.
CAUTION!
Locknut
Spacing
Washers
Latch Cam
Square
Key
Door Cross Section
(example)
Door Handle
Fiber Handle
