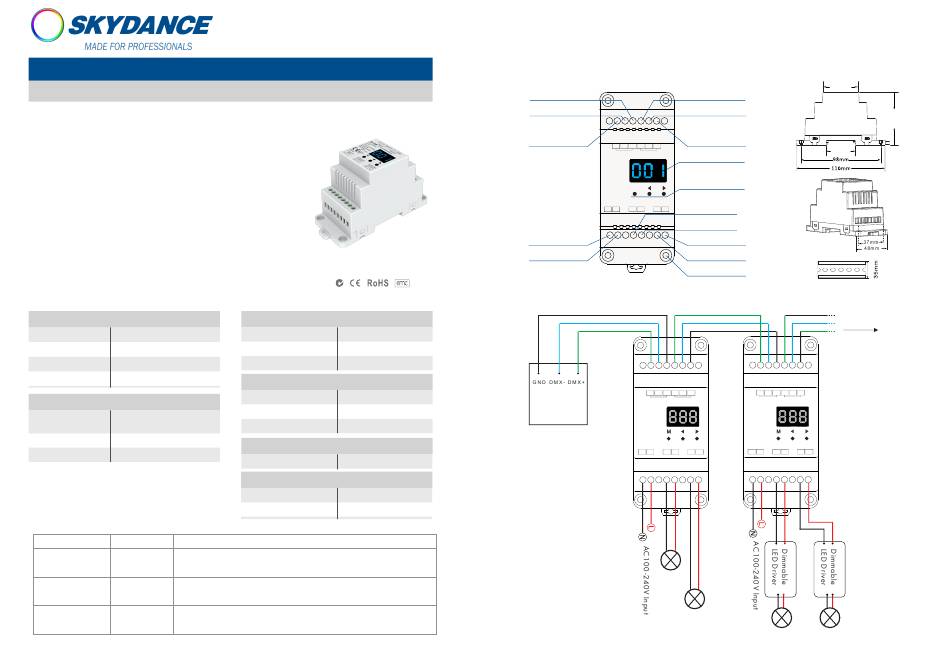

SKYDANCE S1-DR User Manual

AC Triac DMX Dimmer
Model No.: S1-DR
2 Channel/RDM/Stand-alone function/Leading edge or trailing edge/Numeric display/Din rail

Features

● AC phase-cut mosfet dimmer with DMX512 function, two channel output.
● Comply with the DMX512 standard protocols.
● Digital numeric display, set DMX decode start address by bottons.
● RDM function can realize intercommunication between DMX master
and decoder.
● 1/2 DMX channel output selectable.
● Reverse-phase dimming or forward-phase dimming selectable.
● Minimum brightness set from 1% to 40%.
● Stand-alone dynamic mode and 2 channel dimmer mode selectable,
which be controlled by buttons with built-in programs, instead of DMX signal.
● To dim and switch single color dimmable LED lamps,
traditional incandescent and halogen lights.
● Over-heat protection, recover automatically.

Technical Parameters

Input and Output
Input voltage 100-240VAC
Output voltage
2 x (100-240)VAC
Output current
2CH, 1.5A/CH
Output power
2 x (150-360)W

Safety and EMC

ETSI EN 301 489-1 V2.2.3
EMC standard (EMC)
ETSI EN 301 489-17 V3.2.4
Safety standard(LVD)
EN 62368-1:2020+A11:2020
Certification
CE,EMC,LVD

Compatible Load Types

Load Type
Maximum Load
Due to variety of LED lamp designs, maximum number of LED lamps
200W @ 220V
Dimmable LED lamps
is further dependent on power factor result when connected to dimmer.
100W @ 110V
Maximum permitted number of drivers is 200W divided by driver nameplate
200W @ 220V
Triac Dimmable
LED drivers power rating, and make sure the surge current is no more than 2 times 65A.
100W @ 110V
Incandescent lighting, 400W @ 220V
HV Halogen lamps
200W @ 110V
User Manual Ver 1.0.5
LVD
Dimming data
Input signal
DMX512
Dimming level
256 levels
Dimming range
0 - 100%
Environment
O O
Operation temperature Ta: -30 C ~ +55 C
Case temperature ( Max. ) O
T c: +85 C
IP rating
IP20
Warranty
5 years
Warranty
Weight
Net weight 0 . 131kg
Gross weight
0 . 161kg
Remarks

Mechanical Structures and Installations

DMX output +
GND
DMX input -
DMX output -
DMX input +
GND
D+ D- GND D+ D- GND
DMX I N DMX O UT
Digital display
Setting key
M
I NPUT AC100-240V AC100-240V
AC100-240V O UTPUT1 O UTPUT2
CH1 AC N output
N L N1 L1 N2 L2
CH1 AC L output
AC N input CH2 AC L output
AC L input CH2 AC N output

Installation rack

Wiring Diagram

D+ D- GND D+ D- GND
DMX I N DMX O UT
DMX Master
I NPUT AC100-240V AC100-240V
AC100-240V O UTPUT1 O UTPUT2
N L N1 L1 N2 L2
Dimmable
LED light
www.iskydance.pl
45mm
67mm
35.5mm
DIN Rail Mounting Size:
TS-35/7.5 or TS-35/15
DMX signal
D+ D- GND D+ D- GND
DMX I N DMX O UT
I NPUT AC100-240V AC100-240V
AC100-240V O UTPUT1 O UTPUT2
N L N1 L1 N2 L2
LED light
