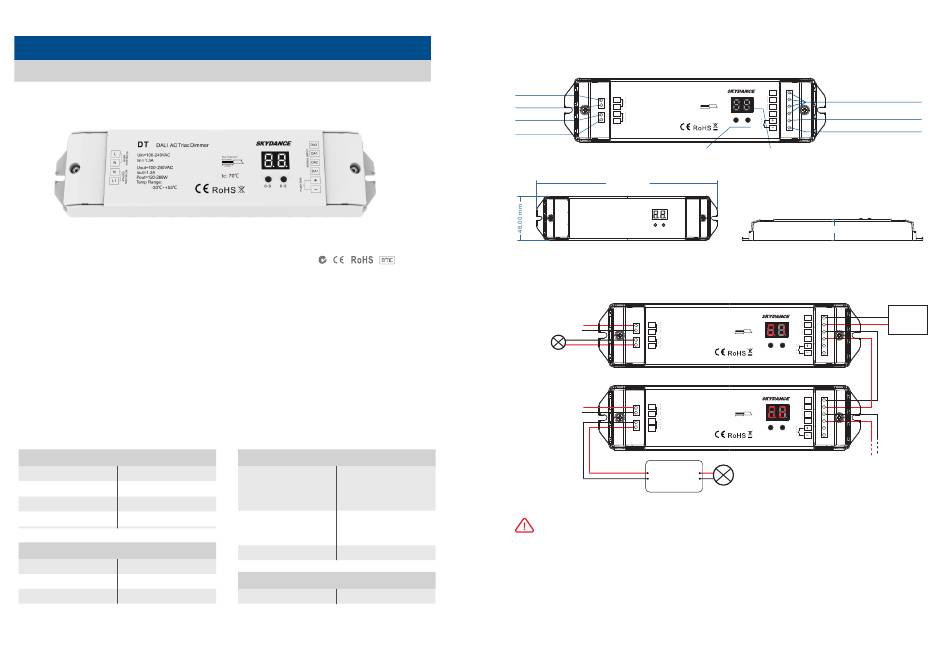

SKYDANCE DT Quick Start Manual

AC Triac DALI Dimmer
Model No.: DT
1DALI address/1 Channel output/Leading edge or trailing edge/Numeric display
Features
● AC phase-cut mosfet DALI dimmer, one DALI address, one channel output.
● In accordance with DALI standard protocol IEC 62386-102, IEC 62386-207 and in compliance with DALI products
from other international incorporation.
● DALI address can be manually assigned and shown in digital display or automatically assigned by DALI master.
● Reverse-phase dimming or forward-phase dimming selectable.
● Connect with external push switch to achieve on/off and 0-100% dimming function.
● To dim and switch single color dimmable LED lamps, traditional incandescent and halogen lights.
Technical Parameters
Input and Output
Input voltage AC100-240V
Output voltage
AC100-240V
Output current
Max 1.2A
Output power
120-288W
Environment
Operation temperature Ta: -30 O C ~ +55 O C
Case temperature Max.
( ) T c: +85 O
C
IP rating
IP20
User Manual Ver 1.0.2
LVD
Safety and EMC
EN 55015:2013
EN 61547:2009
EMC standard (EMC)
EN 61000-3-2:2014
EN 61000-3-3:2013
EN 61347-2-11:2002
Safety standard(LVD) EN 61347-1:2015
EN 62493:2015
CE,EMC,LVD
Certification
Warranty
5 years
Warranty
Mechanical Structures and Installations
AC L input
DT
DALI AC Triac Dimmer
L
AC N input Uin=100-240VAC
Iin=1.3A
N
Uout=100-240VAC
AC N Output
N Iout=1.2A
Pout=120-288W
L1
Temp Range:
-30℃~+55℃
AC L Output
187.00 mm
Wiring Diagram
DT
DALI AC Triac Dimmer
N
L
Uin=100-240VAC
AC 100-240V
L Iin=1.3A
N
Uout=100-240VAC
N
Iout=1.2A
Pout=120-288W
L1
Temp Range:
-30℃~+55℃
Dimmable LED light
DT
DALI AC Triac Dimmer
N
L
Uin=100-240VAC
AC 100-240V
Iin=1.3A
L
N
Uout=100-240VAC
N Iout=1.2A
Pout=120-288W
L1
Temp Range:
-30℃~+55℃
Dimmable
LED Driver
Caution:
Please carefully ensure all wire connections and polarities are correct and secure before applying power ,
otherwise this controller will be damaged.
Note: When calculating the maximum number of load lamps or drivers, the input power or input current
parameters of a single lamp or driver must be used, the output power parameters can not be used,
otherwise, the product will be overloaded and damaged.
DT AC Triac DALI Dimmer
Two groups of DALI signal input
DALI bus no need distinguish
DA2
plus-minus polarity
DA1
Wi re P re pa ra ti on
0.5-2.0mm²
DA2
4-5mm
Push switch com
DA1
tc: 70℃
0-6 0-9 Push switch in
Setting key Digital display
22.00 mm
DA2
DA1
Wi re P re pa ra ti on
0.5-2.0mm²
DA2
4-5mm
DA1
tc: 70℃
0-6 0-9
DA2
DA1
Wi re P re pa ra ti on
0.5-2.0mm²
DA2
4-5mm
DA1
tc: 70℃
0-6 0-9
LED light
DALI
Master
Page 1
