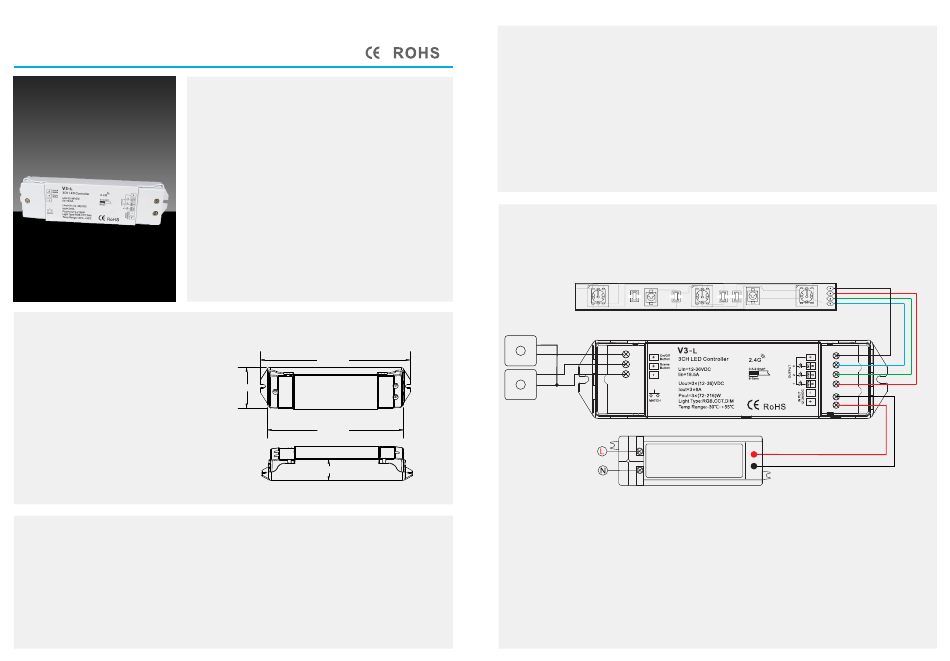

SKYDANCE V3-L Instructions

3CH 12-36V 6A Constant Voltage
RF 2.4G Receiver
V3-L

Technical Parameters

● Input voltage 12 36VDC : -
● Output type : PWM constant voltage
● Output current : 3CH, 6A/CH
● Output power : 3 x (72-216)W
● Grey levels: 4096/CH
● Dimming range: 0-100%
● Remote distance: 30m
● Working temperature: -30℃~55℃
● Product size : L175×W45×H27mm
● Net weight: 110g

Match key function

● Short press: Within 5s, press any key of the remoter for match, multi-zone
remoter press zone key.
● Long press(5s): Delete all matched remoter, lights remain in the current state.
● Long press(10s): Restore factor y default parameters.
Summar y
● 6A 3CH PWM constant voltage controller.
● Default as RGB controller, need match RGB remoter,
create colorful static or dynamic effect.
● Can also be used as color temperature or dimming
controller, good compatibility.
● Full compatibility with a variety of single color, dual color
and RGB remoters.
● PWM achieve 4096 levels flicker-less dimming.
● When control RGB lamp, built in 30 change mode optional.
● Adopt 2.4GHz wireless technology, can accept up to 10
remoters control.
● Can be WiFi controlled by APP installed on IOS or Android
mobile devices while working with WiFi-Relay controller.
● Can connect with external switches to achieve on/off and
scene change function.
● Work with power repeater to expand output unlimitedly.
Dimension
175mm
45mm
160mm
27mm

External keys function

1. On/off key
● Short press: Turn on/off light.
● Long press(1-5s): When light is on, adjust brightness.
● Long press(10s): When multiple controllers share a on/off key,
achieve simultaneous adjustment.
2. Scene key
● Short press: Select 8 scenes.
● Long press(10s): When multiple controllers share a scene key,
achieve simultaneous select.

Wiring diagram

V3-L for RGB
RGB LED strip
External key
(optional)
Power Supply
12-36VDC
AC110-230V
Constant Voltage
LED power supply voltage and power select :
12V lamp, Input 12V power supply, can load 0~216W,
24V lamp, Input 24V power supply, can load 0~432W,
36V lamp, Input 36V power supply, can load 0~648W,
The power supply power must larger than load power 20%.
+
R
G
B
