SKYDANCE LV User Manual

User Guide
0/1-10V LED Dimming Driver
(Constant Voltage or Constant Current)
The 0/1-10V LED dimming driver is designed with 1 channel 0/1-10V input and 1 channel PWM output. 0%-100%
dimming range via logarithmic characteristic can be very comfortable for human eyes. 256 levels of grey scale
enable the LED dimmer to adjust brightness softly and smoothly without any flickering. Besides 0/1-10V signal,
the dimming driver can be controlled by push switch and potemtiometer as well.
Feature
● 1 channel 0/1-10V input, 1 channel PWM constant voltage or constant current output.
● 0~100% dimming range via logarithmic characteristic can be very comfortable for human eyes.
● Smooth dimming without any flickering.
● Compatible with active or passive 0-10V, 1-10V dimmer, can solve the fluorescent lamp dimming system
compatible with LED lighting.
● 0/1-10V CV LED dimming driver can connect unlimited number of CV or CC power repeaters in series
or in parallel to expand output power.
Technical parameter
Input voltage
Model Name
1CH 0/1-10V
LV 5 - 36VDC
CV dimming driver
1CH 0/1-10V and Push-dim
12- 36VDC
LV-L
CV dimming driver
1CH 0/1-10V
LC 12 - 48VDC
CC dimming driver
Dimension
LV / LC
97mm
175mm
45mm
LV-L
160mm
Output current Output power Output type
1CH,8A 40-288W Constant voltage
1CH,12A Constant voltage
144-432W
1CH,150-1800mA
1.8-86.4W Constant current
( customized )
18 mm
27mm

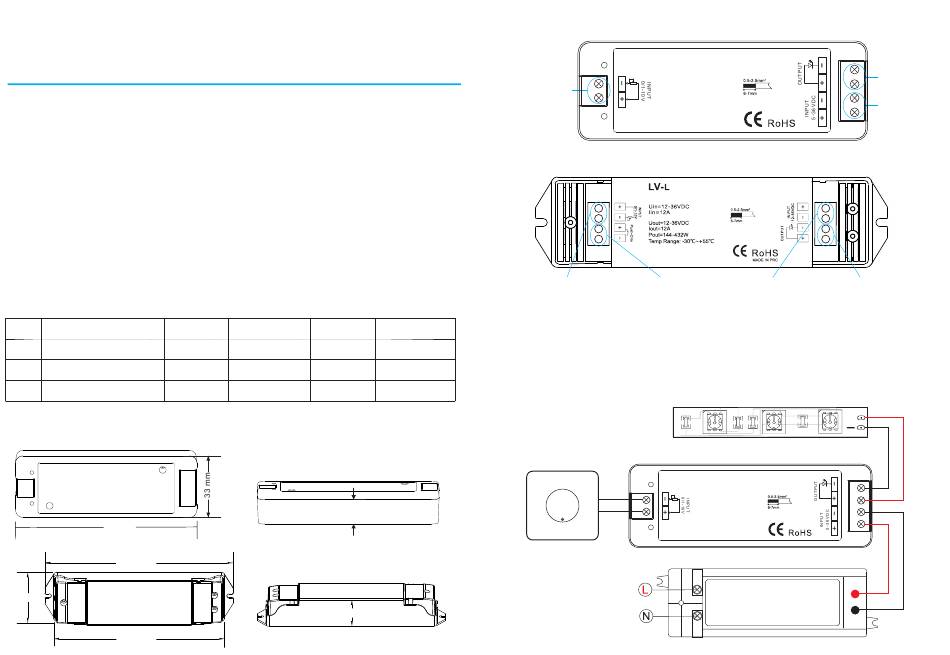

Interface specification
LV
0/1-10V LED Dimming Driver
Uin=5-36VDC
Iin=8.5A
0/1-10V input
Uout=5-36VDC
Iout=8A
Pout=40-288W
Temp Range: -30℃~+55℃
0/1-10V LED Dimming Driver
0/1-10V input
External push switch
Wiring diagram
● LV
0/1-10V
dimmer
AC110-230V
Power input LED output
Single color LED strip
+
LV
0/1-10V LED Dimming Driver
Uin=5-36VDC
Iin=8.5A
Uout=5-36VDC
Iout=8A
Pout=40-288W
Temp Range: -30℃~+55℃
Power Supply
5-36VDC
Constant Voltage
LED output
Power input
