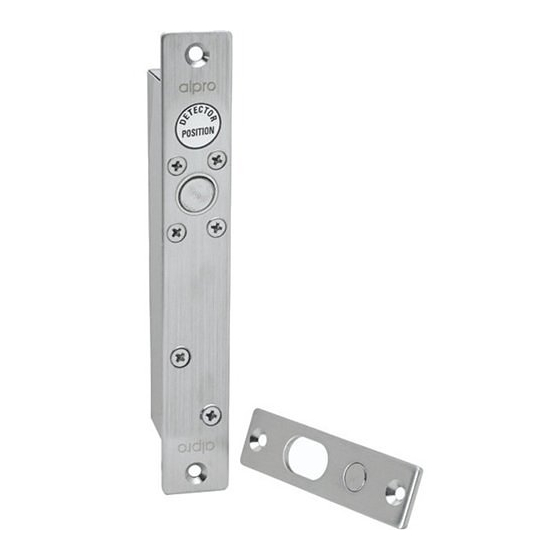

alpro EB501-22 Instructions

Technical Information

Power to Lock/Fail open monitored
Stainless steel bolt - diameter 12mm
- throw 12mm
Voltage required 12vDC
Activating current 0.7A
Holding current 100 mA
Fully protected against transients and
reverse polarity
The Autolock Time Delay can be set for
0, 3, 6 or 9 seconds.
Monitoring - Door position switch (DSS)
GENERAL INSTALLATION
INSTRUCTIONS
1
Ensure you have the following:-
- Strike plate
- Electric bolt
2
All rebate strips and/or frame stops
should be fitted before starting.
3
A 2 amp Power Supply should be
provided to ensure there is a Full 1
amp for the bolt. This should allow
for a basic Access System and a
back up battery to be connected to
the same source.
WARNING - THE CONNECTION
OF AN INCORRECT VOLTAGE
MAY RESULT IN DAMAGE NOT
COVERED BY THE PRODUCT
Warranty.
4
The selection of appropriate power
supply cable is very important to
ensure lock receives sufficient power
to operate.
lpro
Electric Mini Bolt
M 4
4
®
First Choice for Locking Solutions
T 01202 676262
EB501-22 - Instructions

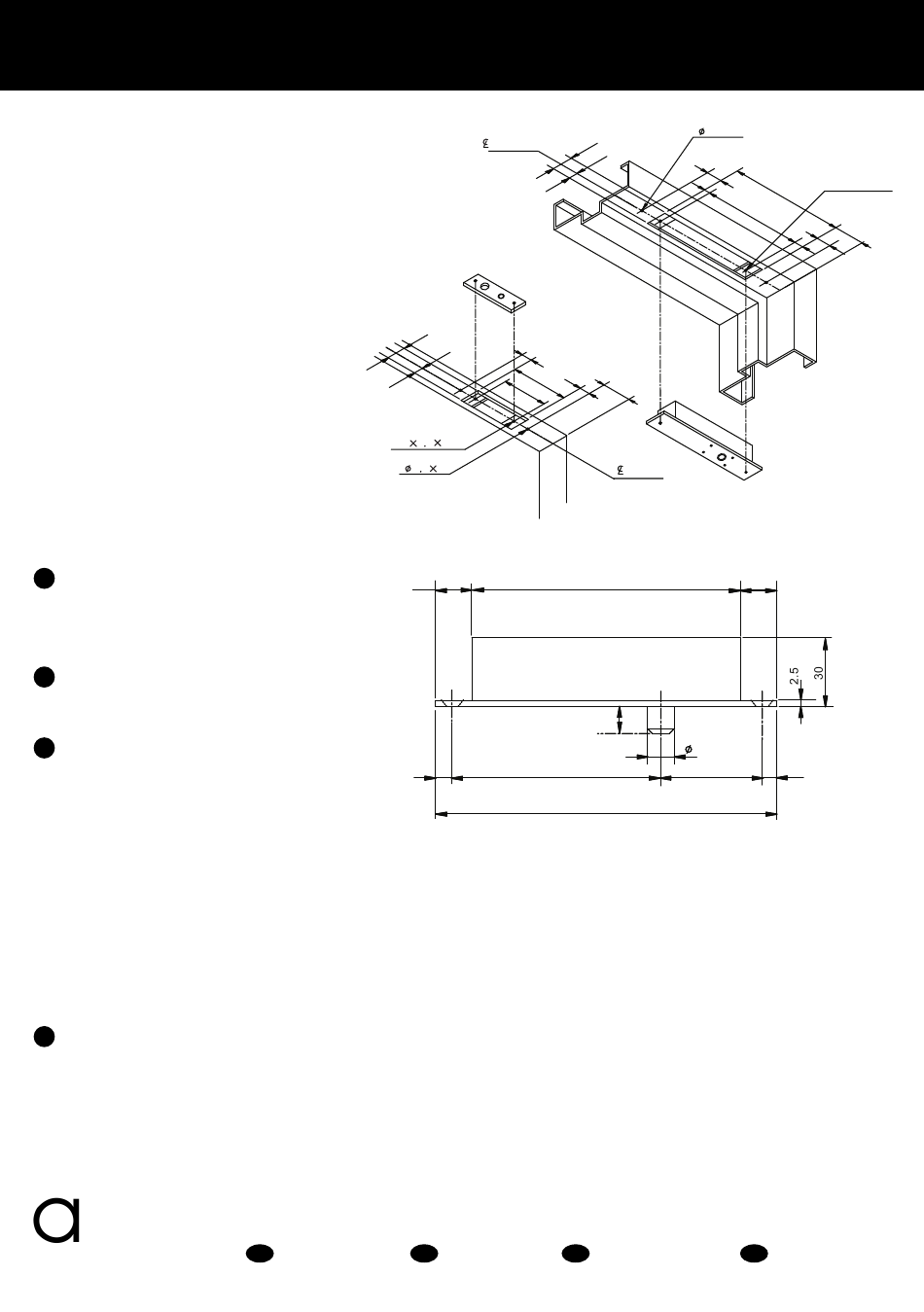

OF DOOR
22.4
22.4
11.2
8
85.4
8
71
7 2
0
4 1 2
DOOR
PREPARTION
16
7 91.5
F 01202 680101 E
4.1 x 2
11.2
8
7
136
50
OF DOOR
118 16
12
12
44.5
150
alpro@iecltd.co.uk W
M4 x 0.7 x 2
150.4
50 REF
8
7
7
www.alpro.co.uk
