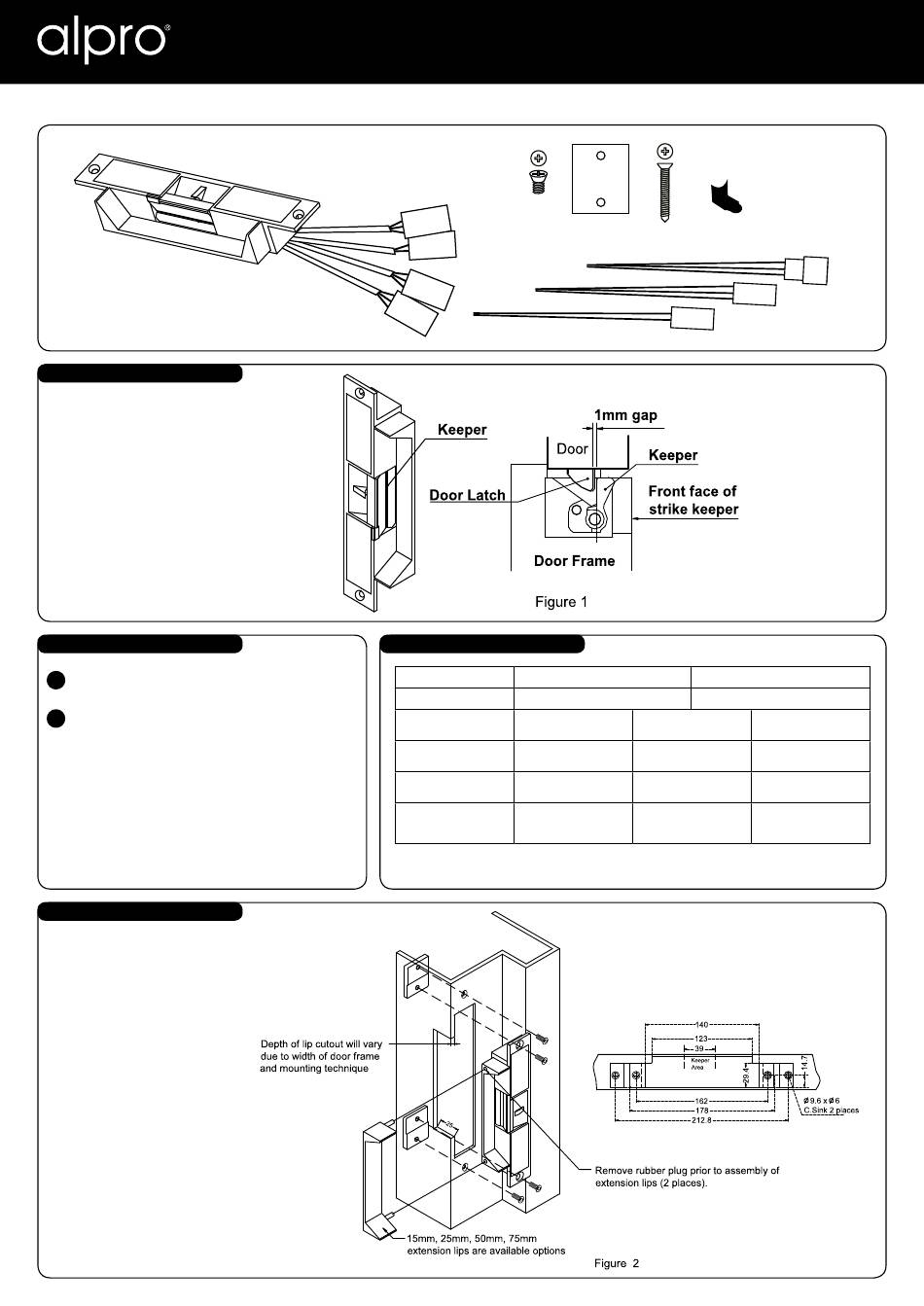

Read all instructions before starting installation
PACK CONTENTS
DOOR LATCH POSITION
As shown in Figure 1, there
should be 1mm gap between
the door latch and the front
face of strike keeper to prevent
the door from exerting back
pressure on the keeper when
the door is closed.
MOUNTING STEPS OF STRIKE
When door is closed, make sure there is no back
1
pressure on the keeper strike.
When the above installation is completed,
2
connect the wiring, secure the strike with
appropriate screws and check operation.
INSTALL ON METAL FRAME
Monitored Electric Strike
x4
POWER INPUT 12VDC OR 24VDC SUPPLY
Power Input
12 vDC - current 220 mA
Wire output
Red (+)
LSS (Lock Status
Black (Common)
Sensor)
DSS (Door Status
Black (Common)
Sensor)
ATS (Anti-Tamper
Black (Common)
Sensor)
LSS Sensor Output 3A,
Sensor Output
125 vAC, 2A, 30 vDC
Note: The control circuit for the door strike is protected against reverse polarity
connection.
x2
x2
x1
x1
24 vDC - current 110 mA
Black (-)
Yellow (NO-PTO),
Green (NC-PTO),
NC-PTL)
(NO-PTL)
Blue (NO)
Orange (NC)
Red (no)
White (NC)
DSS Sensor Output
Anti-tamper Sensor
3A, 125 vAC, 2A,
Output 5A, 125 vAC,
30 vDC
3A, 250 vAC
AL2000
x2
x1
