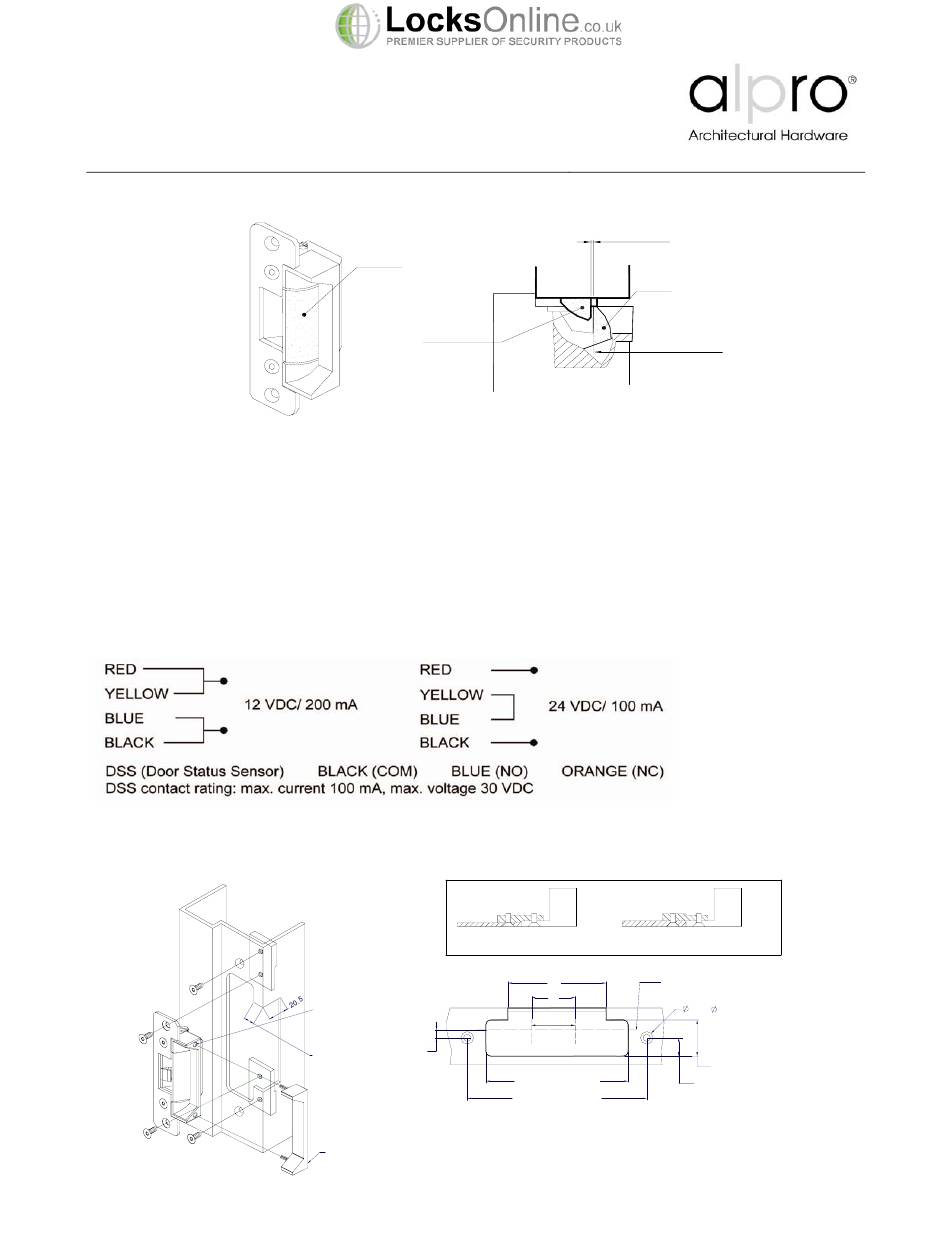

alpro AL110 Instructions

AL110 ANSI
ELECTRIC STRIKE
DOOR LATCH POSITION
As shown above, there must be a 1mm gap between the door latch and the front face of strike keeper to
prevent the door from exerting pressure on the keeper when door is closed.
MOUNTING STEPS OF STRIKE
1). For aluminum or metal door frame brackets are supplied for assembly, refer to Figure 2.
For timber door frame refer to Fig. 3. mark and drill the hole sizes as indicated on Figure 2 and Figure 3.
2). Make sure electrical connections are followed correctly.
3). When the door is closed, ensure that there is no pressure on the front face of strike keeper.
4). When all the above checks are completed, secure the strike with supplied screws and recheck operation.
POWER INPUT 12 VDC or 24 VDC SUPPLY:
Note: There is no polarity on power input. AL110 model is not equipped with monitoring sensor.
INSTALL ON METAL OR ALUMINUM DOOR FRAME
Keeper
Door latch
Figure 1
Mounting on metal door
Remove rubber plug
prior to assembly of
extension lips (2 places).
6.5
Depth of lip cutout will vary
due to width of door frame
and mounting technique
Note: 1. (A) refer to small faceplate with actual size 123.7 x 31.7 x 3mm
2. (B) refer to large faceplate with actual size 200.0 x 35.0 x 3mm
3. All sizes in millimeter.
25mm, 50mm, 75mm extension
lips are available options
Figure 2
1mm
Door
Keeper
Front face of
strike keeper
Door Fram e
Mounting on aluminum or PVC door
86 Front face of strike keeper
38
10 x 6 csk screw hole 2 places.
Latch area
124.7 (A) or 201(B)
156 (A) or 232.3 (B)
32.7(A) or 36(B)
17(A) or 18.8(B)
