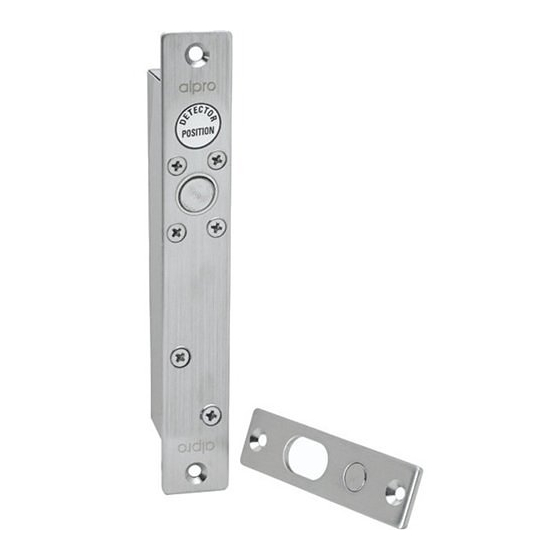

alpro EB501-22 Quick Start Manual

Read all instructions before starting installation

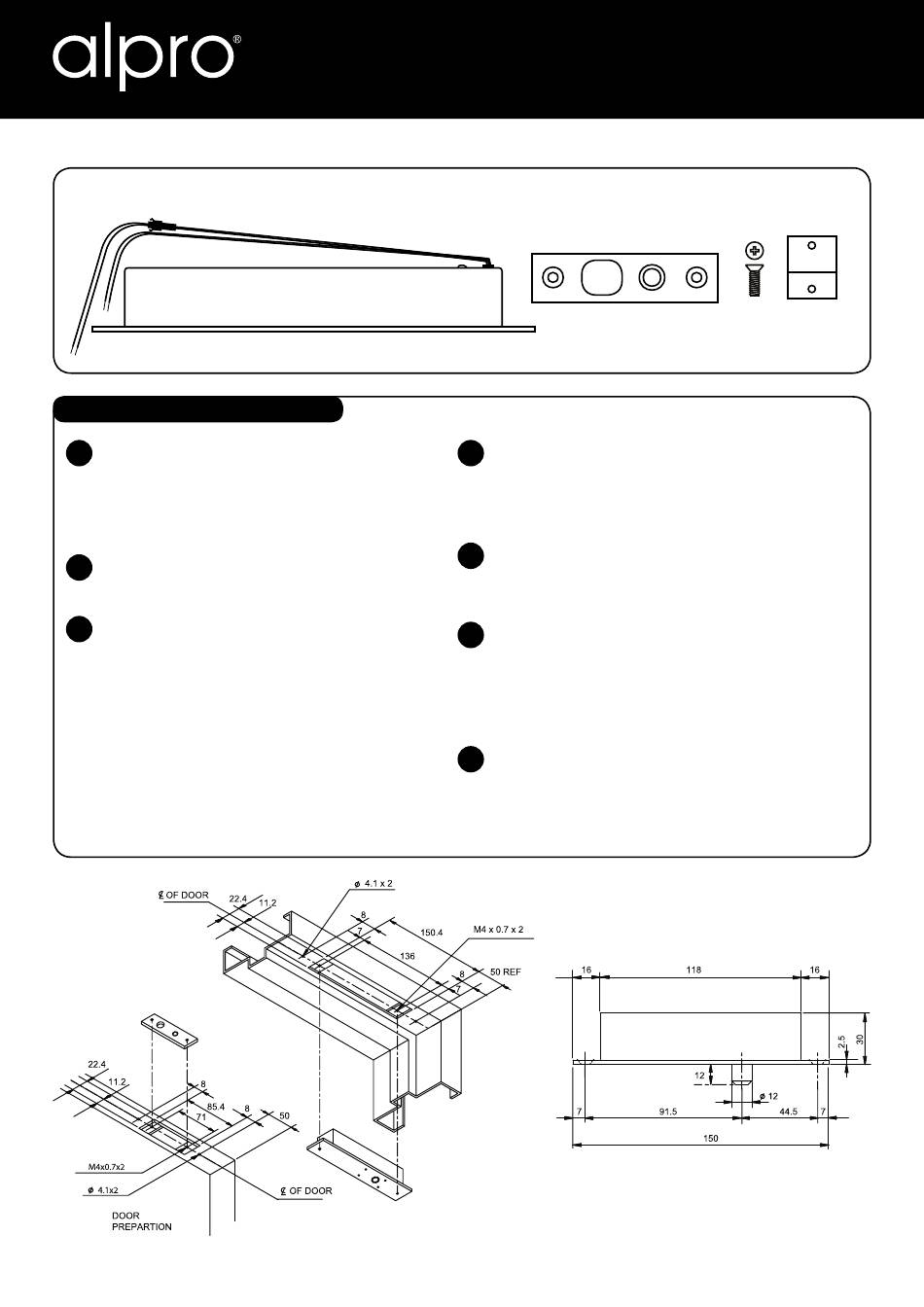

PACK CONTENTS
GENERAL INSTALLATION INSTRUCTIONS
Ensure that
1
You have the following:
• Strike plate
• Electric bolt
2 All rebate strips and/or frame stops
should be fitted before starting
A 2 amp Power Supply should be
3
provided to ensure there is a Full 1 amp
for the bolt. This should allow for a basic
Access System and a back up battery
to be connected to the same source.
WARNING: THE CONNECTION OF AN
INCORRECT VOLTAGE MAY RESULT
IN DAMAGE NOT COVERED BY THE
PRODUCT WARRANTY.
Electric Mini Bolt
The selection of appropriate power
4
supply cable is very important to
ensure lock receives sufficient power to
operate.
Connect flying leads (+) Red (-) Black.
5
Note - other leads for connection of LED
via plug in lead *NOT FOR POWER INPUT*
6
This product has been designed for use
in weather protected areas and under
normal circumstances does not require
any maintenance. DO NOT OIL OR
LUBRICATE.
7 This product must be used in
conjunction with a quality floor spring
or door closer to ensure positive
realignment on closing.
EB501-22
x8 x4
