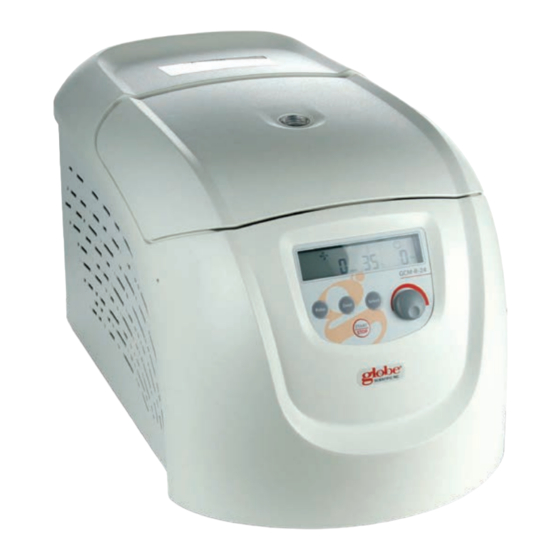

GCM-R-24
Microcentrifuge
Quick Start Guide
What's in the box:
• Quick Start Guide
• Centrifuge
• Power Cable
• Rotor
• Rotor Wrench
• Fuses (2 each)
• Door Key (small screwdriver)
UNPACKING THE UNIT
Please be sure to remove any packing materials used during initial shipment:
1) Open the lid: Use the included Door Key to press the buttons
on the right and left sides of the unit.
INSTALLING AND BALANCING THE ROTOR
IMPORTANT: The rotor should always be loaded in a balanced
manner to avoid personal injury and to ensure centrifuge
longevity.
Locking Nut
Load the Rotor Onto the Shaft
• When any tube is loaded, a tube of the same type, volume and
• Never intentionally run the centrifuge in an unbalanced
Symmetrically Load Centrifuge Tubes Into Rotor
2) Remove foam pads at the hinge latches.
weight must be added in the opposite rotor location.
condition even if operation is not affected.
Rotor Lid
Install the Rotor Lid
Knob
Continued . . .
Advertisement
Related Manuals for Globe Scientific GCM-R-24
Summary of Contents for Globe Scientific GCM-R-24
- Page 1 GCM-R-24 Microcentrifuge Quick Start Guide What’s in the box: • Quick Start Guide • Centrifuge • Power Cable • Rotor • Rotor Wrench • Fuses (2 each) • Door Key (small screwdriver) UNPACKING THE UNIT Please be sure to remove any packing materials used during initial shipment: 1) Open the lid: Use the included Door Key to press the buttons 2) Remove foam pads at the hinge latches.
- Page 2 GCM-R-24 Microcentrifuge Quick Start Guide CONTROL PANEL OPERATION IMPORTANT: Plug unit into appropriate main supply based Temperature Display on the rated voltage. Speed Display Time Display Pulse � � � � � � � � � � � � � Press to accelerate and hold at the set speed.
