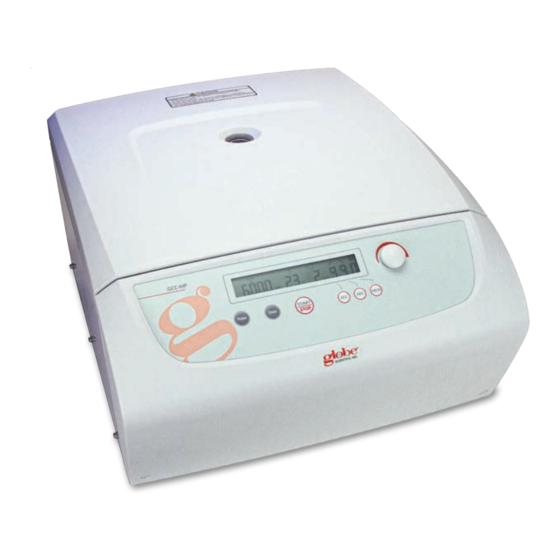

Globe Scientific GCC-MP Quick Start Manual

Clinical centrifuge

GCC-MP / Multi-Purpose

Clinical Centrifuge

Quick Start Guide

What's in the box:

• Centrifuge

• Power Cable(s)

• Rotor Wrench

• Spare Fuses (2 each)

• Door Key (small screwdriver)

• Quick Start Guide

Please be sure to remove any packing materials used during initial shipment:

1) Open the lid: Use the included Door Key to press the buttons

on the right and left sides of the unit.

IMPORTANT: The rotor should always be loaded in a balanced

manner to avoid personal injury and to ensure centrifuge

longevity.

Locking Nut

Load the Rotor Onto the Shaft

• When any tube is loaded, a tube of the same type, volume and

• Never intentionally run the centrifuge in an unbalanced

Symmetrically Load Centrifuge Tubes Into Rotor

2) Remove foam pads at the hinge latches.

weight must be added in the opposite rotor location.

condition even if operation is not affected.

Rotor Lid

Install the Rotor Lid

Knob

Continued . . .

Table of Contents

Need help?

Do you have a question about the GCC-MP and is the answer not in the manual?

Page 1 GCC-MP / Multi-Purpose Clinical Centrifuge Quick Start Guide What’s in the box: • Centrifuge • Power Cable(s) • Rotor Wrench • Spare Fuses (2 each) • Door Key (small screwdriver) • Quick Start Guide UNPACKING THE UNIT Please be sure to remove any packing materials used during initial shipment: 1) Open the lid: Use the included Door Key to press the buttons 2) Remove foam pads at the hinge latches.
Page 2 GCC-MP / Multi-Purpose Clinical Centrifuge Quick Start Guide CONTROL PANEL Speed Display Temperature Time Display Acceleration Deceleration Memory Location Display Display Display Display OPERATION IMPORTANT: Plug unit into appropriate main supply based on the rated voltage. Pulse � � � � � � � � � � � � � Press to accelerate and hold at the set Deceleration �...
Page 3 GCC-MP / Multi-Purpose Clinical Centrifuge Quick Start Guide Rotor Tube Adapter Maximum Maximum Centrifugal Maximum Type Type Required Speed (rpm) Radius (cm) RCF (×g) 2.0/1.5mL x 30 — 6000 4020 GCC-MP-2ML30 0.2mL x 30 GCM-24-AD2 6000 8.5 3415 0.5mL x 30 GCM-24-AD5 6000 3618 2.0/1.5mL x 60...
