Drive Resetting; Instructions To Be Respected; Field Of Application; Liability - SOMFY J4 io Protect Short Installation Manual

5

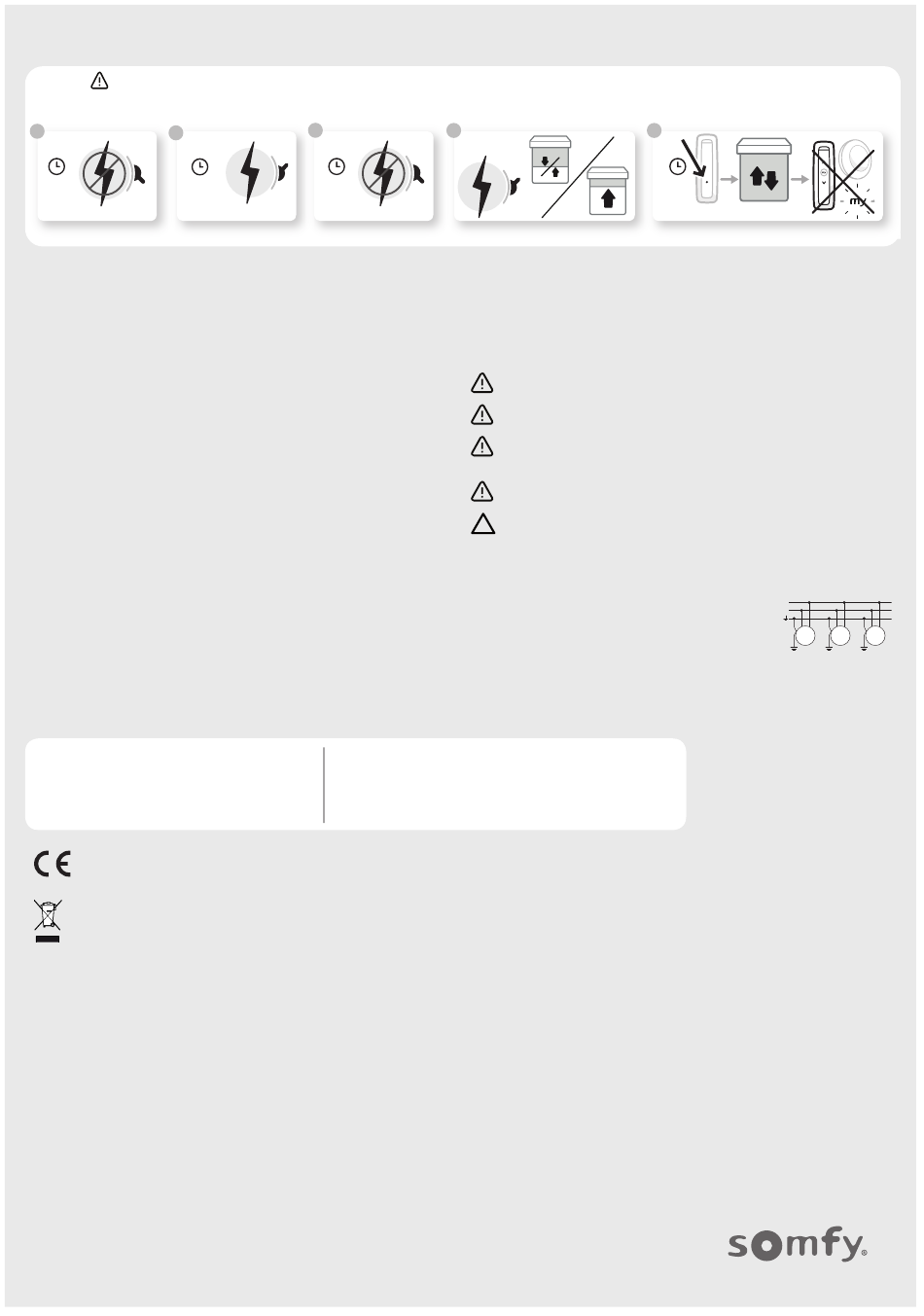

Apply the double cutout only for the end-product to be reset.
This reset deletes all programmed control points, all sensors, all end limit settings and resets the favourite (my) position for the drive.
New Node
1
2
2 s 5 - 15 s
OFF
These instructions apply to all J4 io Protect drive, the different versions of which are available in the current catalogue.

FIELD OF APPLICATION

The J4 drives are designed to drive all types of tiltable venetian blinds.
The J4 drives are designed to motorise all types of:
– Tiltable venetian blinds which bottom lath can be lifted at least by 4 cm when an upward force of 150 N is applied to the bottom lath positioned at 16 cm from the fully extended position.

LIABILITY

Please read these instructions carefully before
installing and using the drive. In addition to
following the instructions given in this guide, the
instructions detailed in the attached Safety
instructions document must also be observed.
The drive must be installed by a motorisation and
home automation professional, according to
instructions from Somfy and the regulations
applicable in the country in which it is
commissioned.
It is prohibited to use the drive outside the field of
application described above. Such use, and any
failure to comply with the instructions given in this
guide and in the attached Safety instructions
document, absolves Somfy of any liability and
invalidates the warranty.

SPECIFIC INSTRUCTIONS

Do not connect the drive to an isolating transformer.
Do not use mains disconnection devices in conjunction with a drive.
Use only mechanical switches or electro-mechanical switches (ex: relays) to control drives.
The contacts of the relays must not be bypassed by capacitors.
In user mode, do not use electric switches allowing simultaneous Up or Down contact.
The drive must not be driven by a solid-state relay or triac relay.
Always refer to the control system instructions to do the proper wiring.
The drive must be installed by a professionally qualified person (electrical specialist according to DIN VDE 1000-10) for drives and automations in the building services sector in accordance with the Somfy
instructions and the applicable regulations in the country of commissioning.

Radio frequency

Frequency bands and Maximum power used

Power supply

SOMFY ACTIVITES SA, 74300 CLUSES FRANCE as manufacturer hereby declares that the drive covered by these instructions when marked for input voltage 230V~50Hz and used as intended according
to these instructions, is in compliance with the essential requirements of the applicable European Directives and in particular of the Machinery Directive 2006/42/EC and EMC Directive 2014/30/EU. The
full text of the EU declaration of conformity is available at www.somfy.com/ce. Philippe Geoffroy, Approval manager, acting on behalf of Activity director, Cluses, 05/2021
We care about our environment. Do not dispose of the appliance with usual household waste. Give it to an approved collection point for recycling.
SOMFY ACTIVITES SA 50 avenue du Nouveau Monde, 74300 CLUSES FRANCE
Images are not contractually binding - 100% recycled paper - Copyright © 2021. All rights reserved. SOMFY ACTIVITES SA, Société Anonyme, capital 35.000.000 Euros, RCS Annecy, 303.970.230 - 05/2021

DRIVE RESETTING

3
ON
2 s
OFF

INSTRUCTIONS TO BE RESPECTED

The installer must inform its customers of the
operating and maintenance conditions for the drive
and must provide them with the instructions for use
and maintenance, and the attached Safety
instructions document, after installing the drive.
Any After-Sales Service operation on the drive
must be performed by a motorisation and home
automation professional.
If in doubt when installing the drive, or to obtain
additional information, contact a Somfy adviser or
go to the website www.somfy.com.
For control systems using an «automatic running time recognition procedure», please
consider the recommendations given by the producer of the controller: the N wire of the
controller has to be connected to the N wire of each drive.
Continuous orders of at least 200 ms must be sent to the drive to ensure proper execution.
Intervals between "Down" and "Up" orders must be at least 500 ms.
The drive can be wired in parallel. In this case take in consideration the maximal load of the
switch/controller used (starting current peak of the drive: 9 A in the first 3 ms).
Phases and neutrals of each drive must be connected respectively as shown below:
868-870 MHz io-homecontrol® two-way Tri-band.
868.000 MHz - 868.600 MHz e.r.p. <25 mW
868.700 MHz - 869.200 MHz e.r.p. <25 mW
869.700 MHz - 870.000 MHz e.r.p. <25 mW
230 V ~ 50 Hz
4
ON

SAFETY INSTRUCTIONS FOR WIRING

Cables which pass through a metal wall must be protected and isolated using a sheath or sleeve.
Attach cables to prevent any contact with moving parts.
If the drive is used outdoors, and if the power supply cable is a type H05-VVF cable, the cable should
be installed in a UV-resistant duct, e.g. under a gland.
Leave the drive power supply cable accessible: it must be possible to replace it easily.
Always make a loop in the power supply cable to prevent water entering the drive.
