Summary of Contents for ADIR ADIKI200 Series
- Page 1 Multi-Tiered Book Display ADIKI200-SERIES USER GUIDE...
- Page 2 Thank you for your purchase. AdirKids commits to delivering safe and quality children’s products. We pride ourselves on creating uniquely exquisite products for your children that they will enjoy for many years to come. Furnishing your child’s room or classroom can be expensive and stressful, but we’ll help make the process affordable and stress-free.
- Page 3 Table of Contents Parts and Hardware Assembly Instructions 11 Limited Warranty 12 Disclaimer...
- Page 4 Parts and Hardware Parts: Top Support Panel (x1) Front and Back Bottom Support Left/Right Side Panel (x2) Cross-Panel (x2) Shelf Support Track (x6) Bottom Shelf Back Panel (x4) Top Shelf Back Panel (x1) Back Panel (x2)

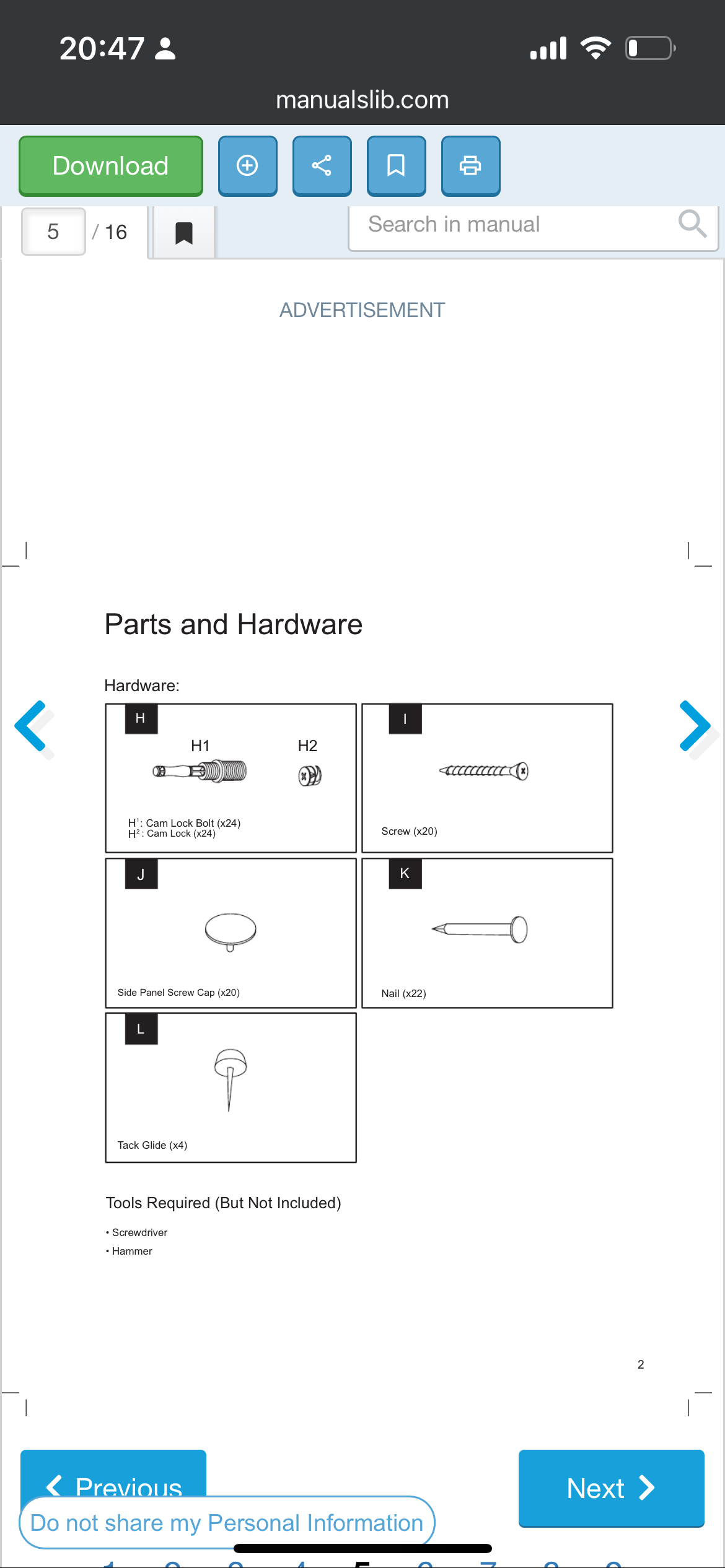

- Page 5 Parts and Hardware Hardware: : Cam Lock Bolt (x24) Screw (x20) : Cam Lock (x24) Side Panel Screw Cap (x20) Nail (x22) Tack Glide (x4) Tools Required (But Not Included) • Screwdriver • Hammer...
- Page 6 Assembly Instructions STEP 1 A. Take a Bottom Shelf Back Panel (E) and insert 4 Cam Lock Bolts (H1) into the pre-drilled holes. B. Take a Shelf Support Track (D) and insert 4 Cam Locks (H2) into the pre-drilled holes. C.
- Page 7 Assembly Instructions STEP 2 A. Locate the Front and Back Bottom Support Cross-Panel (C) and insert 4 Cam Lock Bolts (H1) into the pre-drilled holes. B. Take a Shelf Support Track (D) and insert 4 Cam Locks (H2) into the pre-drilled holes. C.
- Page 8 Assembly Instructions STEP 3 A. Take the two assembled structures from Step 2 and connect them with the Right-Side Panel (A) using the included Screws (I). B. Tighten the Screws (I) with a screwdriver and then place 4 Side Panel Screw Cap’s (J) into the pre-drilled holes.
- Page 9 Assembly Instructions STEP 4 A. Slide the Bottom Shelf Back Panel (E), and Shelf Support Track (D) assembled structure, with the Shelf Support Track (D) facing inward, as pictured. B. Insert a Screw (I), tighten with a screwdriver, and then place a Side Panel Screw Cap (J) into the pre-drilled hole, as pictured.
- Page 10 Assembly Instructions STEP 5 A. Repeat Step 4 for the remaining assembled structures of Bottom Shelf Back Panel (E) and Shelf Support Track (D). B. Insert a Screw (I) into each hole, tighten with a screwdriver, and then place a Side Panel Screw Cap (J) into the pre-drilled holes, as pictured.
- Page 11 Assembly Instructions STEP 6 A. Slide the Top Support Panel (B) over the Top Shelf Back Panel (F). B. Insert two Screws (I) into each hole to secure the Top Support Panel (B), tighten with a screwdriver, and then place two Side Panel Screw Cap’s (J) into the pre-drilled holes, as pictured.
- Page 12 Assembly Instructions STEP 7 A. Attach the Left-Side Panel (A) to the assembled structure and fasten 10 Screws (I) into the pre-drilled holes. Insert 10 Side Panel Screw Cap’s (J) into the pre-drilled holes, as pictured.
- Page 13 Assembly Instructions STEP 8 A. Attach both Back Panels (G) to the assembled structure using the 22 included Nails (K) with a hammer. B. Turn the structure upside down and attach the included 4 Tack Glides (L) to each corner of the literature display structure.
- Page 14 Limited Warranty 1. AdirCorp (the company) warrants to the purchaser that the product will be free from defects in workmanship and materials for a period of one (1) year from the date of purchase. 2. These warranties are not assignable or transferable to any other person. 3.
- Page 15 Disclaimer By purchasing products from AdirCorp, the user agrees as follows: TO THE MAXIMUM EXTENT PERMITTED BY LAW, THE PRODUCTS AND INFORMATION ON THIS SITE IS PROVIDED “AS IS” AND WITH ALL FAULTS AND ADIRCORP. MAKES NO PROMISES, REPRESENTATIONS, OR WARRANTIES, EITHER EXPRESS, IMPLIED, STATUTORY, OR OTHERWISE, WITH RESPECT TO THE PRODUCTS AND INFORMATION, INCLUDING ITS CONDITION, ITS CONFORMITY TO ANY REPRESENTATION OR DESCRIPTION, OR THE EXISTENCE OF ANY LATENT OR PATENT DEFECTS, AND ADIRCORP.
- Page 16 ADIKI200-SERIES 27 Selvage Street • Irvington, NJ • 07111 • © 2021 AdirCorp adircorp.com...
Need help?
Do you have a question about the ADIKI200 Series and is the answer not in the manual?
Questions and answers
Information about the size of the screw and nail. The one I got came without the screws and nails. Thank you.
