- Page 1 NI-9208 Getting Started 2023-04-25...
- Page 2 NI-9208 Getting Started........

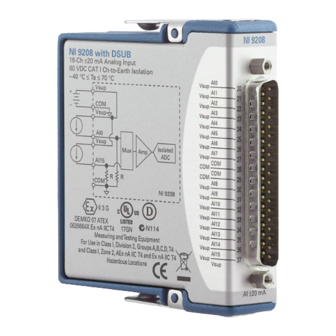

- Page 3 NI-9208 Getting Started NI-9208 Getting Started Connector Types The NI-9208 has more than one connector type: NI-9208 with spring terminal and NI-9208 with DSUB. Unless the connector type is specified, NI-9208 refers to all connector types. NI-9208 Block Diagram Isolated...
- Page 4 NI-9208 Getting Started AI10 AI11 AI12 AI13 AI14 AI15 Table 1. Signal Descriptions Signal Description Analog input signal connection Common reference connection to isolated ground Voltage supply connection NI-9208 with DSUB Terminal Pinout AI10 AI11 AI12 AI13 AI14 AI15 ni.com...
- Page 5 Voltage supply connection Connecting an External Power Supply You can connect an external power supply to the NI-9208. This power supply provides the current for the devices you connect to the module. Connect the positive lead of the power supply to a Vsup pin and the negative lead of the power supply to COM.
- Page 6 ■ more than one wire to a single terminal on the NI-9208 with spring terminal. When using a solid wire or a stranded wire with a ferrule with the NI-9208 ■ with spring terminal, push the wire into the terminal.
