Kingfisher FPHT26-3 Operator's Manual

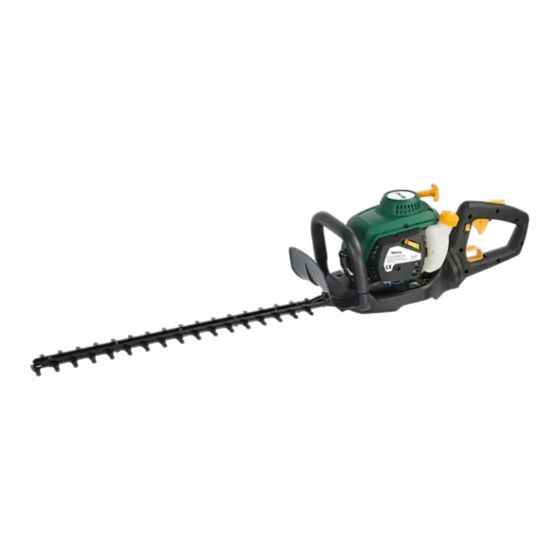

Petrol hedge trimmer 26cm3
Hide thumbs
Table of Contents

Advertisement

Quick Links

Petrol hedge trimmer
26cm³
OPERATOR'S MANUAL
FPHT26-3
EAN: 3663602940289
WARNING: read thoroughly the instruction booklet before using the machine.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FPHT26-3 and is the answer not in the manual?

Questions and answers

Related Manuals for Kingfisher FPHT26-3

Summary of Contents for Kingfisher FPHT26-3

  • Page 1 Petrol hedge trimmer 26cm³ OPERATOR’S MANUAL FPHT26-3 EAN: 3663602940289 WARNING: read thoroughly the instruction booklet before using the machine.
  • Page 2 e in ta ted ARNIN S SAFE RODUCT EFO E OU S A START NSTRUCTIONS OPE A I E A CE AND CA E LES OOTIN AND DISPOSAL EC CLI CE D C ARATION OF CON OR IT...

  • Page 3: Safety Warnings

    FPHT26-3 SAFETY WARNINGS SAFETY WARNINGS > This product is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the product by a person responsible for their safety.
  • Page 4 FPHT26-3 SAFETY WARNINGS •Never refuel indoors. •Never store the product or fuel container inside where there is an open flame, such as near a water heater. •If fuel is spilled, do not attempt to start the power source, but move the product away from the spillage before starting.
  • Page 5 FPHT26-3 SAFETY WARNINGS > Always be aware of your surroundings and stay alert for possible hazards of which you may not be aware due to the noise of the product. > Never carelessly touch the product, you can burn yourself.
  • Page 6 FPHT26-3 SAFETY WARNINGS > Do not try to grasp or remove trimmings when the product is running. Only remove trimmings when the product is switched off and disconnected from the power supply. > Check the work area for foreign objects before operation, e.g.
  • Page 7 FPHT26-3 SAFETY WARNINGS > Never use the product in environments where there is a risk of explosion. Exhaust gases and fuel fumes are noxious. Fuel fumes can ignite. > Never breathe in any fuel fumes, when you are refuelling the product. Never fill the tank in enclosed spaces, such as basements or sheds.
  • Page 8 FPHT26-3 SAFETY WARNINGS Vibration and noise reduction To reduce the impact of noise and vibration emission, limit the time of operation, use low-vibration and low-noise operating modes as well as wear personal protective equipment. Take the following points into account to minimize the vibration and noise exposure risks: >...
  • Page 9 FPHT26-3 SAFETY WARNINGS Residual risks Even if you are operating this product in accordance with all the safety requirements, potential risks of injury and damage remain. The following dangers can arise in connection with the structure and design of this product: >...
  • Page 10 FPHT26-3 SAFETY WARNINGS SYMBOLS On the product, the rating label and within these instructions you will find among others the following symbols and abbreviations. Familiarise yourself with them to reduce hazards like personal injuries and damage to property. Cubic centimetre...
  • Page 11 FPHT26-3 SAFETY WARNINGS Wear protective gloves. Wear protective, slip-resistant footwear. Wear safety helmet! Wear face protection! Wear tight-fitted protective clothes. Do not expose the product to rain or wet conditions. Open flames in the work area, around the product and in the vicinity of flammable materials are...
  • Page 12 FPHT26-3 SAFETY WARNINGS Sharp blades - Cutting of fingers or hand Keep fingers away from moving cutting device! Choke lever Start (Closed Position) Run (Open position) Press primer 6 times. Switch the product off and disconnect the spark plug connector before assembly, cleaning, adjustments, maintenance, storage and transportation.

  • Page 13: Your Product

    FPHT26-3 YOUR PRODUCT YOUR PRODUCT 12 11...
  • Page 14 FPHT26-3 YOUR PRODUCT 1. Cutting device 15.Fixing screw 2. Front handle 16.Choke lever 3. Front safeguard 17.Blade cover 4. Recoil starter handle 18.Spark plug 5. Rear handle 19.Spark plug connector 6. Throttle interlock 20.Exhaust outlet 7. Rear safeguard 21.Air vents 8.

  • Page 15: Technical Specifications

    FPHT26-3 YOUR PRODUCT TECHNICAL SPECIFICATIONS GENERAL > Engine type : SL34G > Engine displacement : 26 cm³ > Engine speed at maximum power : 8000 min > Max. engine speed : 10000 min > Engine idle speed : 3000 min >...
  • Page 16 FPHT26-3 YOUR PRODUCT The sound values have been determined according to noise test code given in EN ISO 10517, using the basic standards EN ISO 11201 and EN ISO 3744 Wear hearing protection! The sound intensity level for the operator may exceed 80 dB(A) and ear protection measures...

  • Page 17: Intended Use

    FPHT26-3 BEFORE YOU START INTENDED USE This petrol hedge trimmer FPHT26-3 is designated with an engine displacement of 26 cm³. The product is intended for trimming hedges, bushes and shrubs. Observe the technical data for the maximum cutting capacity. Do not cut branches exceeding the stated maximum capacity.
  • Page 18 FPHT26-3 BEFORE YOU START BLADE COVER > Remove the blade cover (17) from the cutting device (1) before operation (Fig. 1). Fig. 1 NOTE: Always attach the blade cover (17) when the product is not in use, for storage and transportation.
  • Page 19 FPHT26-3 BEFORE YOU START left position (-90°) initial position (0°) right position (90°) locking position WARNING! Only adjust the handle position when the engine is switched off! Always ensure that the handle locks in one of the end positions, never use it in any...
  • Page 20 FPHT26-3 BEFORE YOU START FUEL AND ENGINE OIL NOTE: This product is not supplied with fuel-oil mixture in the engine! Before operating this product it is essential to fill it with fuel-oil mixture! This product is equipped with a 2-stroke engine, the fuel and oil tank are combined and it is essential to fill a fuel-oil mixture before operating this product.
  • Page 21 FPHT26-3 BEFORE YOU START > Do not use BIA or TWC (2 stroke water-cooling type) mixed oil. > The recommended mixing ratio for petrol:oil is 40:1. NOTE: Never mix fuel and oil directly in the tank of the product. Use a fuel mixing container that helps to ensure the correct mixing ratio.
  • Page 22 FPHT26-3 BEFORE YOU START HANDLE CONTROLS There are three controls at the handle (5) with the following function: > The ignition switch (10) electrically stops the engine. Before you start the engine, you always need to put the ignition switch (10) to the "I" position.

  • Page 23: Operating Control

    FPHT26-3 QUICK START OPERATING CONTROL STEP UP Assemble Adjust Add petrol/oil mixture(40:1) COLD START Set ignition Press primer Close the choke Pull the recoil switch to “I” until fuel starter handle is visible 3-4 times...

  • Page 24: Warm Start

    FPHT26-3 QUICK START Open choke Pull the recoil Run idle for Operate starter handle 10-15s until the engine starts WARM START Set ignition Open choke Pull recoil starter Operate switch to “I” handle until the engine starts STOPPING Release the...
  • Page 25 more detail … OPERATING NSTRUCTIONS 25-31 MAINTENANCE AND CARE 32-38 TROUBLESHOOTING 39-40 RECYCLING AND DISPOSAL GUARANTEE EC DECLARATION OF CONFORMITY...

  • Page 26: General Operation

    FPHT26-3 OPERATING INSTRUCTIONS GENERAL OPERATION > Check the product as well as accessories for damage before each use. Do not use the product if it is damaged or shows wear. > Double check that accessories or cutting device are properly fixed.
  • Page 27 FPHT26-3 OPERATING INSTRUCTIONS STARTING/STOPPING Cold start (Fig. 10, 11) WARNING! Make sure that the cutting device is not touching the ground or other objects when starting the product! Make sure that the rear handle is in the upright position. >...
  • Page 28 FPHT26-3 OPERATING INSTRUCTIONS Warm start (Fig. 12, 13) WARNING! Make sure that the cutting device is not touching the ground or other objects when starting the product! > Set the ignition switch (10) to “ ” (ON) position. > Do not press the primer (13).
  • Page 29 FPHT26-3 OPERATING INSTRUCTIONS NOTE: If the engine does not start, the engine may be flooded. Flooding is caused by too much fuel mixture applied at the wrong time and can prevent a product from starting. DO NOT prime the product again.
  • Page 30 FPHT26-3 OPERATING INSTRUCTIONS TRIMMING NOTE: Try to keep the cutting device angled at approximately 15° to the cutting surface. > Cut and remove branches exceeding the cutting capacity of this product using a proper pruner before operation. > Adjust the handle so that it fits the intended cut.
  • Page 31 FPHT26-3 OPERATING INSTRUCTIONS Fig.19, left position (-90°) Fig.20, left position (-90°) > Start the product as described. Press the throttle interlock, hold it in position and then press the throttle trigger to engage the cutting blade. Operate the engine at full throttle to maintain a proper cutting speed.

  • Page 32: After Use

    FPHT26-3 OPERATING INSTRUCTIONS > After cutting the sides proceed to the top (Fig. 22). Try to keep the cutting device angled at approximately 15° to the cutting surface. > Cut in a number of stages if the area being cut is particularly long to achieve a better result;...

  • Page 33: Maintenance And Care

    FPHT26-3 MAINTENANCE AND CARE MAINTENANCE AND CARE WARNING! Always switch the product off, let the product cool down and disconnect the spark plug connector before performing inspection, maintenance and cleaning work! > Keep the product clean. Remove debris from it after each use and before storage.

  • Page 34: Cutting Device

    FPHT26-3 MAINTENANCE AND CARE CUTTING DEVICE WARNING! Wear safety gloves when working on the cutting device and close to it! Use appropriate tools to remove debris, e.g. a brush or wooden stick! Never use your bare hands! The replacement of the cutting device should be...

  • Page 35: Air Filter

    FPHT26-3 MAINTENANCE AND CARE AIR FILTER > Inspect the air filter (14a) regularly. Replace it with a new one if necessary. > Open the air filter case by loosening the fixing screw (15) with the Multi tool (24). > Remove the screw, cover (14) and take the filter (14a) out (Fig.
  • Page 36 FPHT26-3 MAINTENANCE AND CARE SPLUG PLUG > Inspect the spark plug (18) at least every 25 hours or prior to long-term storage over 30 days if the use has not been this high. Clean or replace with a new spark plug if necessary, refer to section “TECHNICAL SPECIFICATIONS”.
  • Page 37 FPHT26-3 MAINTENANCE AND CARE GEAR BOX > Lubricate the gear box every 30 hours or more frequent at heavy use. > Add grease through the lubricator (23) with an lubricating gun until the grease comes out between the gear box (22) and the cutting device (1) (Fig.
  • Page 38 FPHT26-3 MAINTENANCE AND CARE STORAGE > Drain all fuel from tank into a container. Run engine until it stops. Always drain the fuel tank outdoors. > Switch the product off and disconnect the spark plug connector. > Clean the product as described above.

  • Page 39: Maintenance Table

    FPHT26-3 MAINTENANCE AND CARE MAINTENANCE TABLE Regularly check and maintain the product in accordance with maintenance table Part To do Before /after hours hours hours / hours / each use half once a year year Spark plug check Spark plug clean...

  • Page 40: Troubleshooting

    FPHT26-3 TROUBLESHOOTING TROUBLESHOOTING Suspected malfunctions are often due to causes that the user can fix themselves. Therefore, check the product using this section. In most cases the problem can be solved quickly. WARNING! Only perform the steps described within these instructions! All further inspection,...
  • Page 41 FPHT26-3 TROUBLESHOOTING Cutting device is worn Have a specialist to sharpen or replace it U n s a t i s f a c t o r y result T h i c k n e s s o f b r a n c h e s...

  • Page 42: Recycling And Disposal

    FPHT26-3 RECYCLING AND DISPOSAL RECYCLING AND DISPOSAL > The product comes in a package that protects it against damage during shipping. Keep the package until you are sure that all parts have been delivered and the product is functioning properly. Recycle the package afterwards.
  • Page 43 FPHT26-3 GUARANTEE GUARANTEE > This product carries a guarantee of 12 months starting from the day of purchase. Please retain your receipt as a proof. > This guarantee specifically excludes losses due to: • Normal wear and tear, including accessory wear •...
  • Page 44 ECLARATION O CON OR IT ECLARATION O ON OR IT apenburgerstraa Amsterdam The Netherlands Declare that the product • • • • • the directive • • and technical file holder: apenburgerstraa Amsterdam The Netherlands...
  • Page 45 Manufacturer • Fabricant • Producent • Producător • Fabricante: UK Manufacturer: Kingfisher International Products Limited, 3 Sheldon Square, London, W2 6PX, United Kingdom www.kingfisher.com/products EU Manufacturer: Kingfisher International Products B.V. Rapenburgerstraat 175E 1011 VM Amsterdam The Netherlands www.kingfisher.com/products To view instruction manuals online, visit www.diy.com...
