Kingfisher FPHT26-4 Manual

Petrol hedge trimmer (26 cm3)
Hide thumbs

Advertisement

Table of Contents

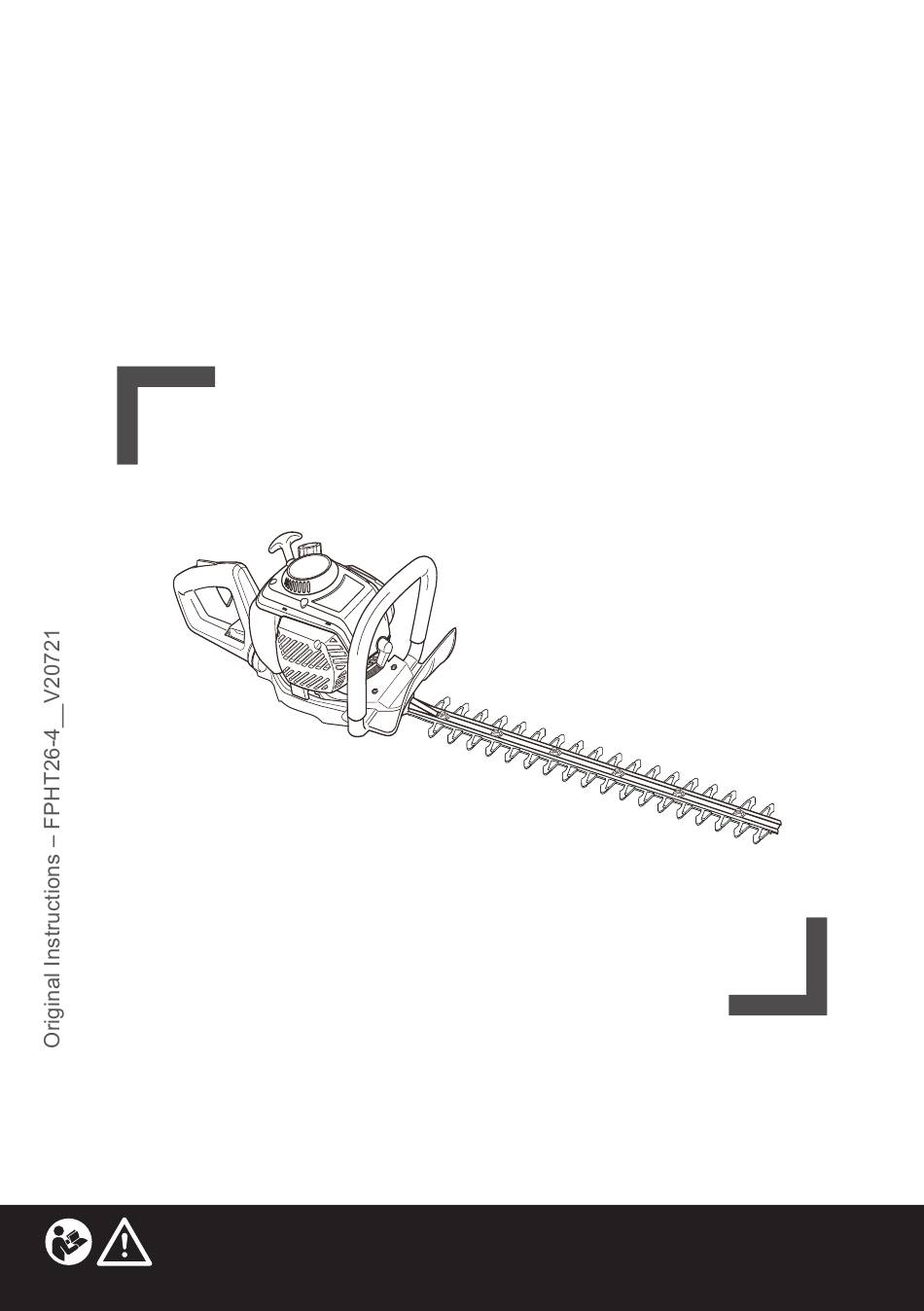

Petrol Hedge
Trimmer (26 cm
)
3
FPHT26-4
EAN: 5059340124377
BX220IM
WARNING: Read the instructions before using the machine!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FPHT26-4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kingfisher FPHT26-4

Summary of Contents for Kingfisher FPHT26-4

  • Page 1 Petrol Hedge Trimmer (26 cm FPHT26-4 EAN: 5059340124377 BX220IM WARNING: Read the instructions before using the machine!

  • Page 2: Table Of Contents

    FPHT26-4 Let’s get started... These instructions are for your safety. Please read through them thoroughly before use and retain them for future reference. Getting Started... Safety information Your equipment Before start Quick start more detail... Equipment functions Operation Care maintenance...

  • Page 3: Safety Information

    Safety information FPHT26-4 Safety warnings IMPORTANT READ CAREFULLY BEFORE USE KEEP FOR FUTURE REFERENCE 1. This equipment is not intended for use by children and persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge. 2. Children should be supervised to ensure that they do not play with the equipment.
  • Page 4 Safety information FPHT26-4 7. Use extra care when handling fuels. Fuel is flammable and the vapours are explosive. The following points should be observed. • Use only an approved container. • Never remove the fuel cap or add fuel with the power source running. Allow engine and exhaust components to cool down before refuelling.
  • Page 5 Safety information FPHT26-4 8. Always be aware of your surroundings and stay alert for possible hazards of which you might not be aware due to the noise of the hedge trimmer. 9. Keep all parts of the body away from the cutting blade. A moment of inattention while operating the hedge trimmer may result in serious personal injury.
  • Page 6 Safety information FPHT26-4 12. Do not store cans of fuel or refill the fuel tank in any place where there is a boiler, stove, wood fire, electrical sparks, welding sparks, or other sources of heat or fire which might ignite the fuel.
  • Page 7 Safety information FPHT26-4 Emergency Familiarise yourself with the use of this equipment by means of this instruction manual. Memorise the safety directions and follow them to the letter. This will help to prevent risks and hazards. 1. Always be alert when using this equipment, so that you can recognise and handle risks early.
  • Page 8 Safety information FPHT26-4 Symbols others the following symbols and abbreviations. Familiarise yourself with them to reduce hazards like personal injuries and damage to property. Kilowatt Litre Cubic centimetre Millilitre Per minute °C Degree Celsius Metre dB(A) Decibel (A-rated) Millimetre Metres per second squared...
  • Page 9 Safety information FPHT26-4 Open flames in the work area, around the equipment and in the vicinity of flammable materials are prohibited! Do not smoke in the work area, around the equipment and in the vicinity of flammable materials! Risk of fire/flammable materials.
  • Page 10 Safety information FPHT26-4 Guaranteed sound power level value in dB. Designation of the tool FPHT26-4 (FP_Brand Name; HT_Hedge Trimmer; 26_Engine size in cc) The equipment complies with the applicable European directives and an evaluation method of conformity for these directives was done.
  • Page 11 Safety information FPHT26-4 Sound emission level > Sound pressure level L 94.6 dB(A) > Uncertainty K: 3 dB(A) > Measured sound power level L 105.6 dB(A) > Guaranteed sound power level L 108 dB(A) > Uncertainty K: 2.04 dB(A) Vibration emission level Hand-arm vibration a >...

  • Page 12: Your Equipment

    Your equipment FPHT26-4 16 15...
  • Page 13 Your equipment FPHT26-4 1. Cutting device 14. Primer 2. Cutter blade 15. Choke lever 3. Front handle 16. Fixing screw 4. Front hand barrier 17. Air filter case 5. Recoil starter handle 18. Cutting device transport guard 6. Rear handle 19.

  • Page 14: Before You Start

    Before you start FPHT26-4 Set up Removing the cutting device transport guard CAUTION! Risk of cuts! Cutter blades (2) are very sharp. Wear protective gloves when handling cutter blades (2). Remove the cutting device transport guard (18) carefully from the cutting device (1) (Fig. 1).
  • Page 15 Before you start FPHT26-4 2. Release the rear handle adjustment lever (10) to lock the position in place (Fig. 6). NOTE: The rear handle (6) can only be locked at 3 positions. Make sure it snaps securely into place before operating the equipment.
  • Page 16 Before you start FPHT26-4 Filling up fuel and oil WARNING! This equipment is not supplied with petrol-oil mixture in the engine! Before operating this equipment it is essential to fill it with petrol-oil mixture! This equipment is equipped with a 2-stroke engine. The fuel and oil tank are combined and it is essential to fill a fuel-oil mixture before operating this equipment.
  • Page 17 Before you start FPHT26-4 100 ml 2.5 ml 200 ml 5 ml 40:1 300 ml 7.5 ml 400 ml 10 ml 4. Unscrew and remove the fuel tank cap (13) (Fig. 7). 5. Fill the fuel into the fuel tank (12). Leave approximately 5 mm of space between the top of the fuel and the inside edge of the tank to allow for expansion.

  • Page 18: Quick Start

    Quick start FPHT26-4 Operating controls Choke lever CLOSE Recoil starter handle OPEN Throttle control lock-out Primer Stop Unlock lever Throttle control switch...
  • Page 19 Quick start FPHT26-4 Preparation Add fuel and oil Assemble Adjust mixture Starting (Cold engine) Set stop switch Press primer Set the choke Pull recoil Set the choke to I 6 times to CLOSE starter handle to OPEN 3-4 times (If engine...
  • Page 20 Intended use This petrol hedge trimmer FPHT26-4 is designated with a maximum power output of 0.75 kW. This equipment intended for trimming hedges, bushes and shrubs with a maximum diameter of 27 mm. Do not use the equipment for any other purpose.

  • Page 21: In More Detail

    Equipment functions FPHT26-4 NOTE: Suggested trimming period: > Green leaf hedges (June to October) > Evergreens (April ad August) > Conifers and other fast growing shrubs (every 6 to 8 weeks) WARNING! The equipment must be used by an experienced operator* having...

  • Page 22: Operation

    Equipment functions / Operation FPHT26-4 Throttle control lock-out The throttle control lock-out (7) prevents unintentional start of the throttle control (9). The throttle control can only be activated if the throttle control lock-out is pressed (Fig. 11). DANGER! Risk of injury! The equipment must only be put into operation if no faults are found.
  • Page 23 Operation FPHT26-4 NOTE: In some countries regulations define at what time of the day and on what special days equipments are allowed to be used and what restrictions apply! Ask your community for detailed information and observe the regulations in order...
  • Page 24 Operation FPHT26-4 Starting cold engine NOTE: For a cold start, make sure that the rear handle (6) is in the upright position. 1. Place the equipment on a flat and stable surface. The cutting device (1) should not touch ground or any objects.
  • Page 25 Operation FPHT26-4 4. Hold the equipment securely to the ground with your left hand (Fig. 15). 5. Pull the recoil starter handle (5) slowly with your right hand until you feel a definite resistance and then give it a brisk, strong pull. Repeat until the engine starts (Fig. 15).
  • Page 26 Operation FPHT26-4 > Move the cutting device (1) lightly through the cutting surface in a sweeping motion following the shape of the hedge or shrub. A slight 15° tilt downwards of the cutting device in the direction of motion is recommended for optimum cutting performance.

  • Page 27: Care And Maintenance

    Operation / Care and maintenance FPHT26-4 > For vertical cuts, start the first cut from the bottom cutting upwards to the top. This will prevent any of the trimmings falling into the path of the area still to be cut (Fig. 24).
  • Page 28 Care and maintenance FPHT26-4 1. Keep the equipment clean. Remove debris after each use and before storage. 2. Regular and proper cleaning helps to ensure safe operation and prolongs the life of the equipment. 3. Inspect the equipment before each use for worn and damaged parts. Do not operate it if you find broken and worn parts.
  • Page 29 Care and maintenance FPHT26-4 Maintenance table Inspect and maintain this equipment regularly based on below maintenance table. Keep the equipment in good working condition during maintenance. Part Task Before/after Every 10 hours Every 25 hours each use of operation of operation...
  • Page 30 Care and maintenance FPHT26-4 Air filter Inspect the air filter regularly. Clean or replace it with a new one if necessary. 1. Loose the fixing screw (16) on the air filter case (17) using the multi-tool (25) (Fig. 29). 2. Remove the air filter and tap it on a stable surface to remove dust. Use compressed air (max.
  • Page 31 Care and maintenance FPHT26-4 Spark plug NOTE: For good performance, the spark plug must be properly gapped and must be free of deposits. Inspect the spark plug every 25 hours or before long-term storage over 30 days. Clean or replace with a new one if necessary.
  • Page 32 Care and maintenance FPHT26-4 Gear box > Lubricate the gear box (22) every 30 hours or more frequent at heavy use. > Add grease through the lubricator (23) with an lubricating gun until the grease comes out between the gear box (22) and the cutting device (1) (Fig. 33).
  • Page 33 Care and maintenance FPHT26-4 Spare parts/Replacement parts WARNING! Risk of injury! Use of nonconformant replacement components can result in serious personal injury or death. The following parts of this equipment may be replaced by the consumer. Spare parts are available at an authorised dealer or through our customer service.
  • Page 34 Care and maintenance FPHT26-4 Long term storage NOTE: Risk of equipment damage! > If you are not going to use the equipment for a while, remove the fuel from the equipment. This way, you will prevent a gumming-up of the engine and of the grease pump.

  • Page 35: Troubleshooting

    Troubleshooting FPHT26-4 Troubleshooting Suspected malfunctions are often due to causes that the operators can fix themselves. Therefore check the equipment using this section. In most cases, the problem can be solved quickly. WARNING! Only perform the steps described in these instructions! All further...

  • Page 36: Recycling And Disposal

    Troubleshooting / Recycling and disposal FPHT26-4 Problem Possible cause Solution Engine does not Air filter is soiled? Clean the air filter. reach Incorrect fuel or incorrect Stop the engine, empty tank, then the maximum mixture? fill up with the correct mixture of speed.

  • Page 37: Guarantee

    Guarantee FPHT26-4 Guarantee We take special care to select high quality materials and use manufacturing techniques that allow us to create products incorporating design and durability. This product has a manufacturer’s guarantee of 2years against manufacturing defects, from the date of purchase (if bought in store) or date of delivery (if bought online), at no additional cost for normal (non-professional or commercial) household use.

  • Page 38: Ec Declaration Of Conformity

    EC declaration of conformity FPHT26-4 (EN) EU DECLARATION OF CONFORMITY (FR) DÉCLARATION UE DE CONFORMITÉ (PL) DEKLARACJA ZGODNOŚCI UE (RO) DECLARAȚIA DE CONFORMITATE UE (ES) DECLARACIÓN UE DE CONFORMIDAD (PT) DECLARAÇÃO DE CONFORMIDADE UE Product/ Produit/ Produkt/Produsul/Producto/Produto > Hedge Trimmer/Taille-haie/ Nożyce do żywopłotów/ Mașina de tuns garduri vii/ Cortasetos/ Aparador de sebes >...
  • Page 39 EC declaration of conformity FPHT26-4 O objeto da declaração acima descrito está em conformidade com a legislação de harmonização da União aplicável: 2006/42/EC as amended Machinery Directive 2014/30/EU as amended Directive Electromagnetic compatibility 2000/14/EC as amended Outdoor Noise Directive 2016/1628/EU Regulation Gaseous and Particulate Pollutant Emission Limits...
  • Page 40 Authorised signatory and technical file holder/signataire et responsable de la documentation technique authorisé/podmiotuprawniony do wystawieniaiadresprezechowywaniadokumentacjitechnicznej/ semnatarautorizatșideținător al dosaruluitehnic/firmanteautorizado y titular del expedientetecnico/ signatárioautorizado e detentor da fichatécnica Kingfisher International Products B.V., Rapenburgerstraat 175E, 1011 VM Amsterdam, The Netherlands David Awe...
  • Page 41 26 cm³ , 0.75 kW • 000001 - 999999 Name and address of the manufacturer or his authorised representative: Kingfisher International Products Limited 3 Sheldon Square London W2 6PX United Kingdom This declaration of conformity is issued under the sole responsibility of the manufacturer.
  • Page 42 Manufacturer, Fabricant, Prodecent, Producător, Fabricante: UK Manufacturer: 3 Sheldon Square London W2 6PX United Kingdom EU Manufacturer: Rapenburgerstraat 175E 1011 VM Amsterdam The Netherlands www.diy.com To view instruction manuals online,...
