Portable Air Conditioner

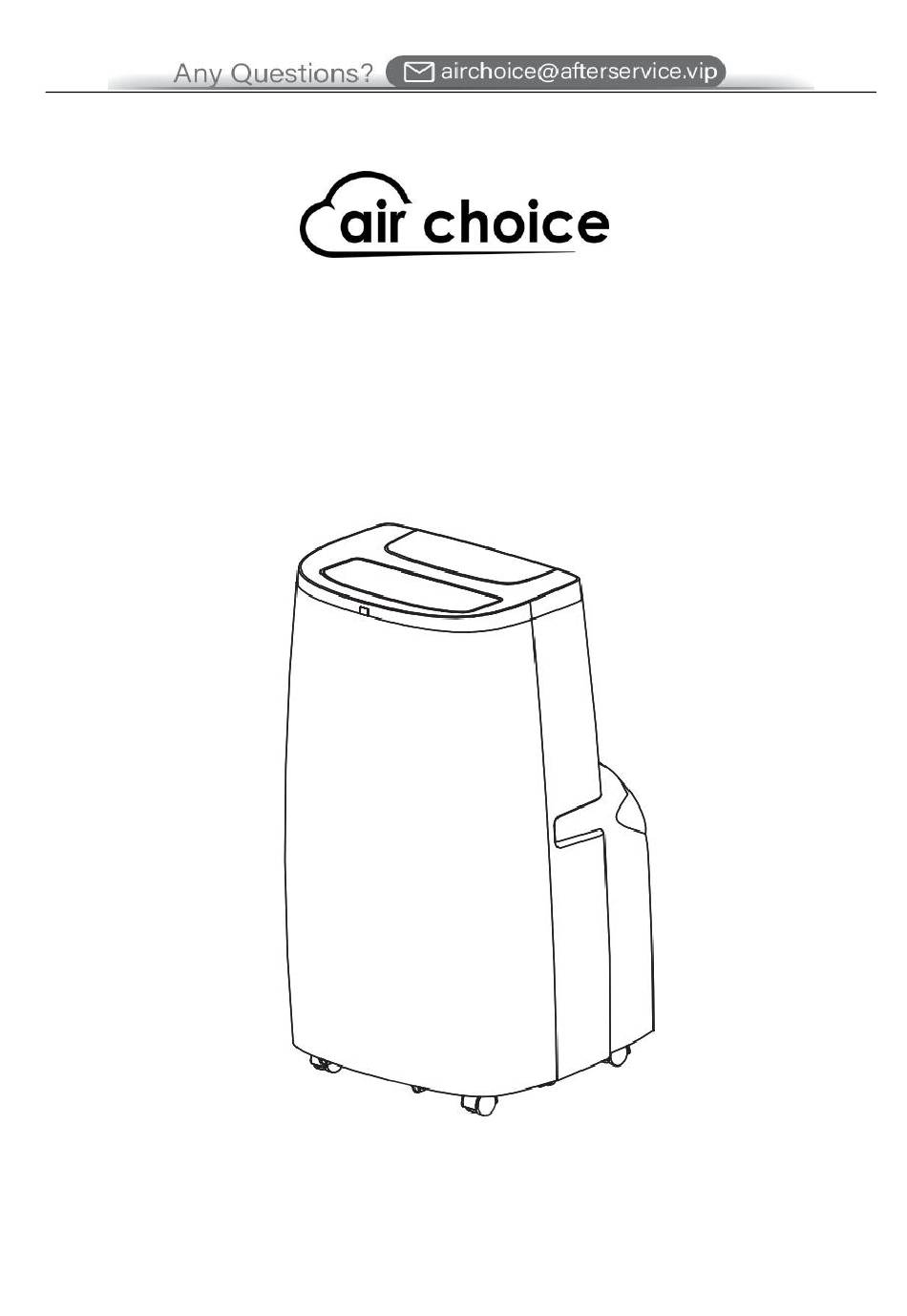

Installation and User Manual
MODEL NO.: NPH-10H/X1E
Thank you for purchasing this product. This user manual will provide you with valuable information necessary for the proper
care and maintenance of your new product. Please take a few moments to thoroughly read the instructions and familiarize
yourself with all the operational aspects of your new Portable Air Conditioner.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NPH-10H/X1E and is the answer not in the manual?

Questions and answers

Related Manuals for air choice NPH-10H/X1E

Summary of Contents for air choice NPH-10H/X1E

  • Page 1 Portable Air Conditioner Installation and User Manual MODEL NO.: NPH-10H/X1E Thank you for purchasing this product. This user manual will provide you with valuable information necessary for the proper care and maintenance of your new product. Please take a few moments to thoroughly read the instructions and familiarize...

  • Page 2: Air Conditioner Safety

    AIR CONDITIONER SAFETY Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages. This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurt you and others.
  • Page 3 Disconnect power before cleaning. NOTE: Turning off the power by pressing the Power button does NOT disconnect the appliance from the power supply. Do not install or use the air conditioner in any area where the atmosphere contains combustible gases or where the atmosphere is contaminated.
  • Page 4 Electronic leak detectors shall be used to detect flammable refrigerants, but the sensitivity may not be adequate, or may need re-calibration (Detection equipment shall be calibrated in a refrigerant-free area). Ensure that the detector is not a potential source of ignition and is suitable for the refrigerant used. Leak detection equipment shall be set at a percentage of the LFL of the refrigerant and shall be calibrated to the refrigerant employed and the appropriate percentage of gas (25 % maximum) is confirmed.
  • Page 5 available. All cylinders to be used are designated for the recovered refrigerant and labeled for that refrigerant (i.e. special cylinders for the recovery of refrigerant). Cylinders shall be complete with pressure relief valves and associated shut-off valves in good working order. Empty recovery cylinders are evacuated and, if possible, cooled before recovery occurs. The recovery equipment shall be in good working order with a set of instructions concerning the equipment that is at hand and shall be suitable for the recovery of flammable refrigerants.
  • Page 6 effectué que selon les recommandations du fabricant de l'équipement. L'entretien et les réparations nécessitant l'assistance d'un autre personnel qualifié doivent être effectués sous la supervision de la personne compétente dans l'utilisation des réfrigérants inflammables. Avant de commencer à travailler sur des systèmes contenant des réfrigérants inflammables, des contrôles de sécurité sont nécessaires pour s'assurer que le risque d'inflammation est minimisé.
  • Page 7 opération est absolument indispensable pour réaliser des opérations de brasage sur la tuyauterie. Assurez-vous que la sortie de la pompe à vide n'est pas à proximité de sources d'inflammation et qu'il y a une ventilation disponible. En plus des procédures de taxation conventionnelles, les exigences suivantes doivent être respectées. Assurez-vous que la contamination des différents réfrigérants ne se produit pas lors de l'utilisation de l'équipement de charge.

  • Page 8: Parts And Features

    PARTS AND FEATURES...
  • Page 9 Control Panel Lower Drain Cap Air Discharge Louvers Remote Control Caster Round Connector Remote Control Holder Exhaust Hose Side Handle Adapter Power Cord Storage Window kits Air Filter ( butterfly nut) Window kits screw Center Drain Cap Drain house REQUIREMENTS INSTALLATION TOOLS AND PARTS Gather the required tools and parts before starting installation.
  • Page 10 ELECTRICAL REQUIREMENTS WARNIN Electrical Shock Hazard Plug into a grounded 3-prong outlet. Do not remove the ground prong from the power cord plug. Do not use an adapter. Do not use an extension cord. Failure to do so can result in death, fire, or electrical shock. POWER SUPPLY CORD Wiring Requirements •...

  • Page 11: Installation Instructions

    INSTALLATION INSTRUCTIONS STEP 1 - UNPACK THE AIR CONDITIONER WARNIN Excessive Weight Hazard Use two or more people to move and install the air conditioner. Failure to do so can result in back injury or other injuries. Remove packaging materials. Save the carton and the foam packaging for storing the air conditioner when not in use. NOTE: There are NO packing materials inside the air conditioner to remove—Do Not open the cabinet.
  • Page 12 Slide the exhaust hose assembly from the outer air outlet to the right The assembly is completed until the convex point of the inner joint and the concave point of the air outlet are stuck. STEP 4 - INSTALL THE WINDOW PANELS Depending on the size of your window opening, use the main panel and one or both of the extension panels.
  • Page 13 Lock the butterfly nut on panel A, and do not lock the butterfly nut tightly, keeping the spacing of 2.5 mm. Connect with panel B, and adjust the panel(s) to the width or height of the window as shown. Fasten the butterfly nut to fix the window slide set. STEP 5 - COMPLETE THE INSTALLATION Close the window as far as the window slide set, so this covers the window opening completely.

  • Page 14: Control Panel

    cm away from walls and other objects. NOTE: Some window installations may require the extension panels to be trimmed. Slide the adapter downwards and assure the adapter is installed in a good position. Assure the slant panel direction matches the seal-plate direction. The exhaust hose cannot be bent or with a flexure higher than 45°, in order to keep good ventilation of the exhaust hose.
  • Page 15 BUTTONS TIMER BUTTON Program a time (from 1-hour to 24-hours) for the air conditioner to turn Off or On. When a Time Delay is programmed, the Timer indicator light will illuminate. While the air conditioner is operating: 1. Press the Timer button. 2.

  • Page 16: Safety Protections

    Fan – Circulates the air in the room without cooling POWER BUTTON Turns ON/OFF power to the air conditioner. NOTE: Turning off the power by pressing the Power button does NOT disconnect the appliance from the power supply. • Press the Power button. The Power indicator will illuminate. REMOTE CONTROL Power On and Off - When the unit is plugged in, press the POWER button to turn on the unit.

  • Page 17: Air Conditioner Use

    up in the display. When this happens, you need to drain the water and re-start the unit (For more information about how to drain, refer to the “Drainage Instruction” please). If the unit is not shut down manually, the unit will recover to the original operating status automatically once the water is fully drained.

  • Page 18: Care And Maintenance

    Protect the drain cover and water stopper properly. Move the unit carefully to avoid leakage. Tilt the unit slightly backwards when draining. Block the drain hole as soon as possible before the tray is full and cannot hold all water in the unit. This is to prevent water leakage and wetting the floor or carpet.

  • Page 19: Troubleshooting

    INTERNAL WATER TANK The Water Full indicator illuminates, when the internal water has filled with condensated water. To Empty the Internal Water Tank: 1. Unplug or disconnect the power. 2. Place a shallow 1 quart or larger pan (not included) below the lower drain located on the back (near the bottom) of the air conditioner.

  • Page 20: Warranty

    the set temperature in heating mode There is direct sunlight Close the window curtain Close the door and window, remove The doors and windows are open, the room is other heat sources, and add new air- Bad cooling or heating crowded or there are other heat sources conditioners effects...
  • Page 21 ONE (1) YEAR from the date of purchase by the original purchaser (“Warranty Period”). If a defect arises and a valid claim is received within the Warranty Period, at its option, AIR CHOICE will either 1) repair the defect at no charge, using new or refurbished replacement parts, or 2) replace the product with a new product that is at least functionally equivalent to the original product, or provide a store credit in the amount of the purchase price of the original product.
  • Page 22 CONTACT US Thank you for choosing AIR CHOICE product. For any questions about your product or honor your warranty, please try the following methods to get in touch with us: 1. Scan the QR code below; 2. Write us at [airchoice@afterservice.vip]; 3. Call us at +1 (855) 620 5858.
