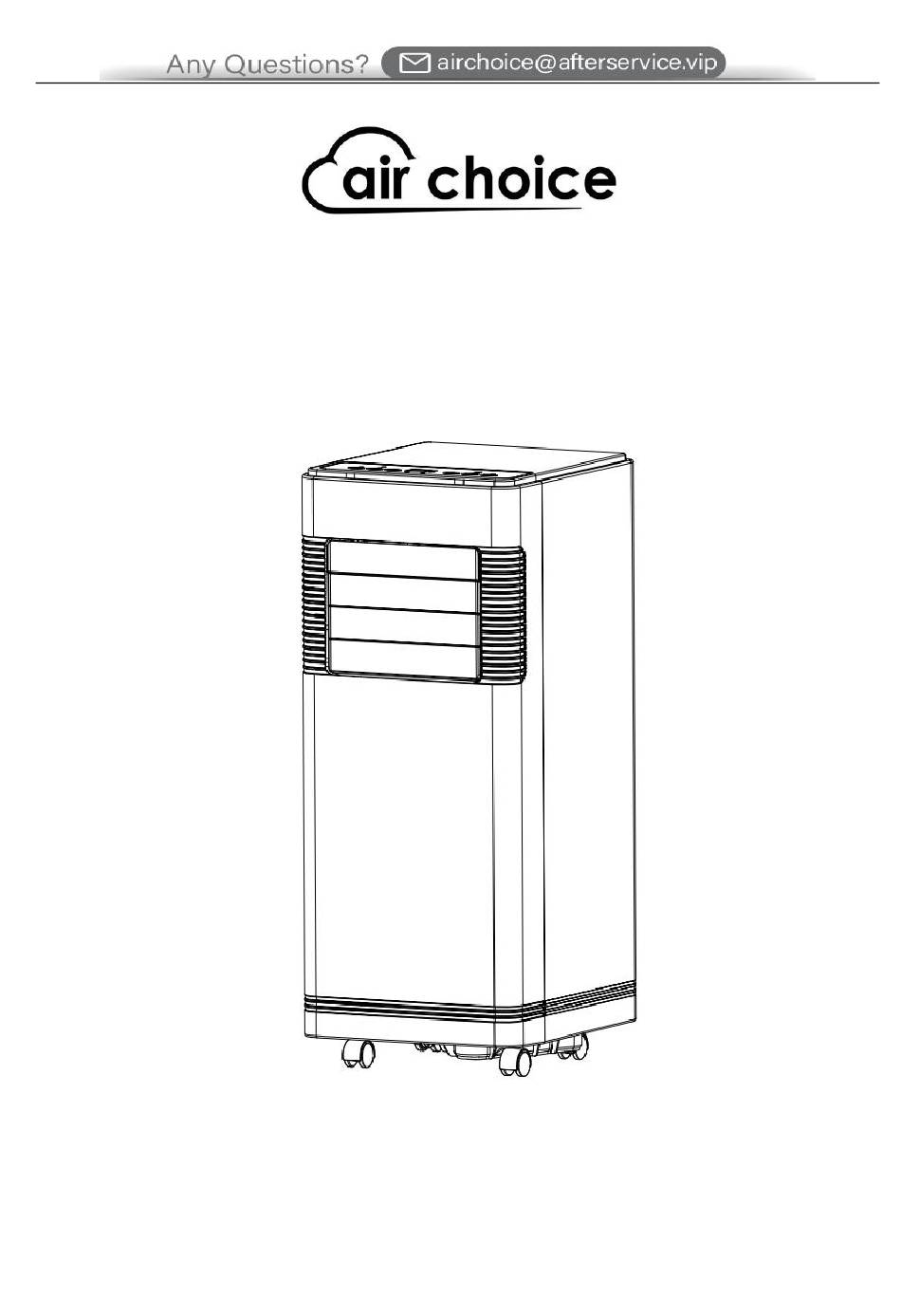

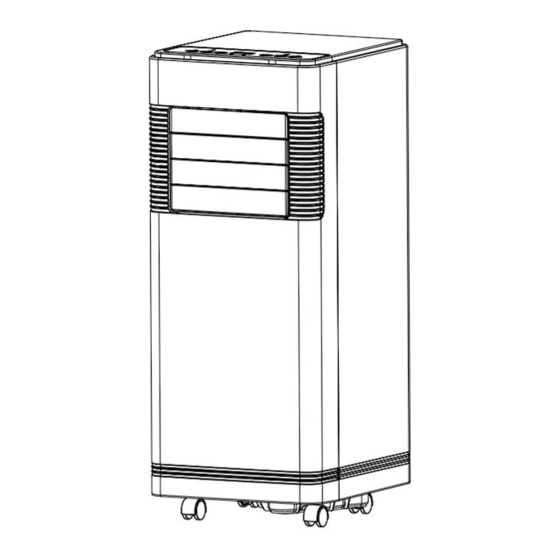

Portable Air Conditioner
Installation and User Manual
MODEL NO.: NPF-08C/X1E
Thank you for purchasing this product. This user manual will provide you with valuable information necessary for the
proper care and maintenance of your new product. Please take a few moments to thoroughly read the instructions and
familiarize yourself with all the operational aspects of your new Portable Air Conditioner.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NPF-08C/X1E and is the answer not in the manual?

Questions and answers

Linda J. Scherbarth
July 3, 2025

this AC does not cool my small room. It is only cool if you sit directly in front of it.

0

Subscribe to Our Youtube Channel

Related Manuals for air choice NPF-08C/X1E

Summary of Contents for air choice NPF-08C/X1E

  • Page 1 Portable Air Conditioner Installation and User Manual MODEL NO.: NPF-08C/X1E Thank you for purchasing this product. This user manual will provide you with valuable information necessary for the proper care and maintenance of your new product. Please take a few moments to thoroughly read the instructions and...

  • Page 2: Air Conditioner Safety

    AIR CONDITIONER SAFETY Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages. This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurt you and others.
  • Page 3 examination, repair, or adjustment. Disconnect power before servicing.  Disconnect power before cleaning.  NOTE: Turning off the power by pressing the Power button does NOT disconnect the appliance from the power supply. Do not install or use the air conditioner in any area where the atmosphere contains combustible gases or where the ...
  • Page 4 ignition of refrigerant in the atmosphere from a leak. Check that cabling will not be subject to wear, corrosion, excessive pressure, vibration, sharp edges, or any other  adverse environmental effects. The check shall also take into account the effects of aging or continual vibration from sources such as compressors or fans.
  • Page 5 Start the recovery machine and operate it by the manufacturer's instructions. Do not overfill cylinders. (No more than 80% volume liquid charge). Do not exceed the maximum working pressure of the cylinder, even temporarily. When the cylinders have been filled correctly and the process completed, make sure that the cylinders and the equipment are removed from the site promptly and all isolation valves on the equipment are closed off.
  • Page 6 mentales réduites, ou un manque d'expérience et de connaissances, à moins qu'elles n'aient reçu une supervision ou des instructions concernant l'utilisation de l'appareil par une personne responsable de leur sécurité. Les enfants doivent être surveillés pour s'assurer qu'ils ne jouent pas avec l'appareil. Utilisez deux personnes ou plus pour déplacer et installer le climatiseur.
  • Page 7 sensibilité peut ne pas être adéquate ou nécessiter un réétalonnage. (L'équipement de détection doit être étalonné dans une zone sans réfrigérant.) Assurez-vous que le détecteur n'est pas une source potentielle d'inflammation et qu'il est adapté au réfrigérant utilisé. L'équipement de détection des fuites doit être réglé à un pourcentage de la LFL du réfrigérant et doit être calibré...
  • Page 8 Ne pas trop remplir les cylindres. (Pas plus de 80 % de volume de charge liquide). Ne pas dépasser la pression maximale de service du vérin, même temporairement. Lorsque les bouteilles ont été correctement remplies et que le processus est terminé, assurez-vous que les bouteilles et l'équipement sont retirés du site rapidement et que toutes les vannes d'isolement de l'équipement sont fermées.Recovered refrigerant shall not be charged into another refrigeration system unless it has been cleaned and checked.

  • Page 9: Parts And Features

    PARTS AND FEATURES Top panel 10. Drain hole Front shell 11. Side filter Horizontal louvers 12. Remote Control Universal wheel 13. Connector Chassis 14. Exhaust Hose Backshell 15. Adapter Back filter 16. Window kits Universal plug fixing holes 17. Window kits screw (butterfly nut) Protective net 18.

  • Page 10: Installation Requirements

    INSTALLATION REQUIREMENTS TOOLS AND PARTS Gather the required tools and parts before starting installation. TOOLS NEEDED •Flat-blade Screwdriver •Phillips Screwdriver LOCATION REQUIREMENTS Place the air conditioner on a flat, level surface in a location that is at least 50cm from any wall. NOTE: A minimum clearance of 50cm from the air conditioner to the wall must be maintained to ensure proper airflow.

  • Page 11: Installation Instructions

    NOTE: Do not operate any other electrical appliances on this circuit or you may trip the circuit breaker/fuse. If this power supply cord is damaged, it cannot be repaired. It must be replaced with a cord from the product manufacturer. If the power supply cord is damaged contact Customer Service.
  • Page 12 STEP 3 - CONNECT THE EXHAUST HOSE TO THE AIR CONDITIONER IMPORTANT: When connecting the hose, the air conditioner must be close enough to the window that you will not dislodge the window seal plate. Once the hose is connected, move the air conditioner 20” (51 cm) from the wall. Slide the exhaust hose assembly from the outer air outlet to the right The assembly is completed until the convex point of the inner joint and the concave point of the air outlet are stuck.
  • Page 13 Lock the butterfly nut on panel A and do not lock the butterfly nut tightly, keeping the spacing of 2.5mm. Connect with panel B, and adjust the panel(s) to the width or height of the window as shown. Fasten the butterfly nut to fix the window slide set.
  • Page 14 STEP 5 - COMPLETE THE INSTALLATION Close the window as far as the window slide set, so this covers the window opening completely. Place the device at least 50 cm away from walls and other objects. NOTE: Some window installations may require the extension panels to be trimmed. Slide the adapter downwards and ensure the adapter is installed in a good position.

  • Page 15: Control Panel

    CONTROL PANEL BUTTONS ICON FUNCTION ICON FUNCTION ICON FUNCTION POWER BUTTON MODE BUTTON UP BUTTON FAN SPEED TIMER BUTTON DOWN BUTTON BUTTON WATER FULL FAN SPEED TIMER INDICATOR INDICATOR INDICATOR COOL MODE FAN MODE DEHUM INDICATOR INDICATOR INDICATOR FAHRENHEIT SLEEP MODE POWER TEMPERATURE INDICATOR...
  • Page 16 C. UP AND DOWN BUTTONS Adjusts the Temperature or Hours in Time Delay. To Set the Temperature: The temperature can be set between 17ºC and 30ºC when the air conditioner is in Cool mode. ℉ to 86℉) 1. Press the Mode button until the Cool mode is selected. 2.

  • Page 17: Remote Control

    REMOTE CONTROL Power On and Off - When the unit is plugged in, press the POWER button to turn on the unit. Press the POWER button once more to turn the unit off. Mode Selection - Press the Cool, Dry, and Fan mode. Fan Speed - Press the High or Low button to adjust the fan speed.

  • Page 18: Safety Protections

    SAFETY PROTECTIONS 1. Water-full safety alarm and shut–off protection function When the water volume exceeds its alarm level in the chassis, a warning sounds automatically and a water-full icon is lit on display, you need to drain the water and restart the unit. (For more information about how to drain, please refer to the “Drainage Instructions”).

  • Page 19: Manual Drainage

    DRAIN THE INTERNAL WATER You will need a small pan to catch the water coming out of the water tank. Once the water tank is empty, the unit will resume operation within a few minutes. MANUAL DRAINAGE Once the unit shuts down upon water-full, turn off the unit and then unplug it. Put the tray below the water outlet at the back of the unit.

  • Page 20: Surface Cleaning

    SURFACE CLEANING - Unplug the appliance before cleaning. - Clean the unit surface with a wet soft cloth and do not use chemical solvents such as alcohol and gasoline to avoid any damage to the unit. Any thinner, alcohol-glazer, or other similar solvents are prohibited for unit cleaning. - Clean the dirty air outlet or louvers with a wet soft cloth and detergent.

  • Page 21: Troubleshooting

    TROUBLESHOOTING First, try the solutions suggested here to possibly avoid the cost of a service call. Trouble Cause Solution Connect the unit to a live socket and Power supply failure turn it on. Water-full and its icon lighting Drain the water stored in the unit. It is recommended to use this unit The unit fails to start up Ambient temperature too low or low high...

  • Page 22: Warranty

    WARRANTY Portable air conditioner limited warranty Any repair, replacement, or warranty service, and all questions about this product should be directed to the customer service center. The warranty begins the day the product was purchased and covers up to a period of 1 year (12 months) for parts (manufacturing defects only).
  • Page 23 ONE (1) YEAR from the date of purchase by the original purchaser (“Warranty Period”). If a defect arises and a valid claim is received within the Warranty Period, at its option, AIR CHOICE will either 1) repair the defect at no charge, using new or refurbished replacement parts, or 2) replace the product with a new product that is at least functionally equivalent to the original product, or provide a store credit in the amount of the purchase price of the original product.
  • Page 24 CONTACT US Thank you for choosing AIR CHOICE product. For any questions about your product or honor your warranty, please try the following methods to get in touch with us: 1. Scan the QR code below; 2. Write us at [airchoice@afterservice.vip];...
